194/238
Building Technologies Modular Heating Controller RMH760B CE1P3133en
HVAC Products 13 Function block faults 05.02.2007
13 Function block faults
13.1 Overview of function block
Function block “Faults“ collects all fault status messages that have occurred, sorts them
according to their importance for display and stores the last 10 messages in the fault
history. The function block signals acknowledgements and resettings made by the user
to the application where the fault occurred. The function block is always active for
delivering internal fault status messages.
For external signal sources, function block “Faults“ provides 4 universal fault inputs, in
addition to the fault inputs of the boiler and the pumps.
It is also possible to monitor inputs, such as flow sensor, room sensor, etc., that have
already been configured.
To signal or forward faults, 2 relays can be configured as fault outputs.

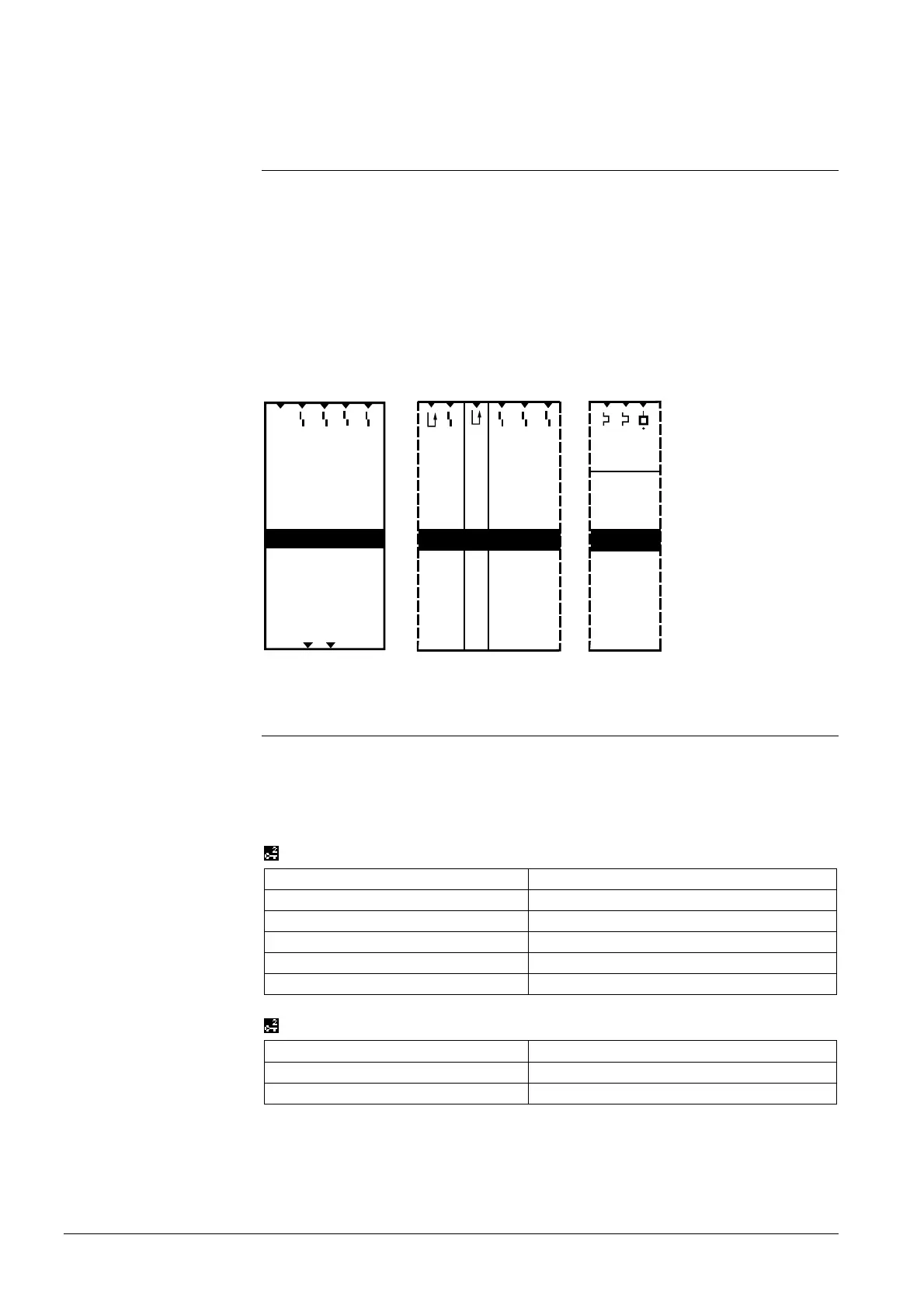

3133Z13
QQ
xx
1
2
xx
3
4
d
d d d d dd
d d
B
d
V
Relay 1
Relay 2
Faults
Burner
Boiler
...pump
Fault button
Burner
Shutoff valve
(Water shortage) 1
(Overpressure) 2
(Underpressure) 3
13.2 Configuration
A maximum of 4 universal fault inputs and 2 fault relays can be configured via “Extra
configuration”
.
The inputs can be configured to free inputs, or inputs that are already used can be
monitored.
Main menu > Commissioning > Extra configuration > Faults > Inputs
Operating line
Adjustable values / display / remarks
Fault button external --- / N.X1 / N.X2 / … (digital only)
Fault input 1 Analog or digital inputs
Fault input 2 Analog or digital inputs
Fault input 3 Analog or digital inputs
Fault input 4 Analog or digital inputs
Main menu > Commissioning > Extra configuration > Faults > Outputs
Operating line
Adjustable values / display / remarks
Fault relay 1 --- / RMH760.X4 etc. (digital only)
Fault relay 2 --- / RMH760.X4 etc. (digital only)
Extra configuration
Inputs
Outputs
