TXP-CLC Course
2

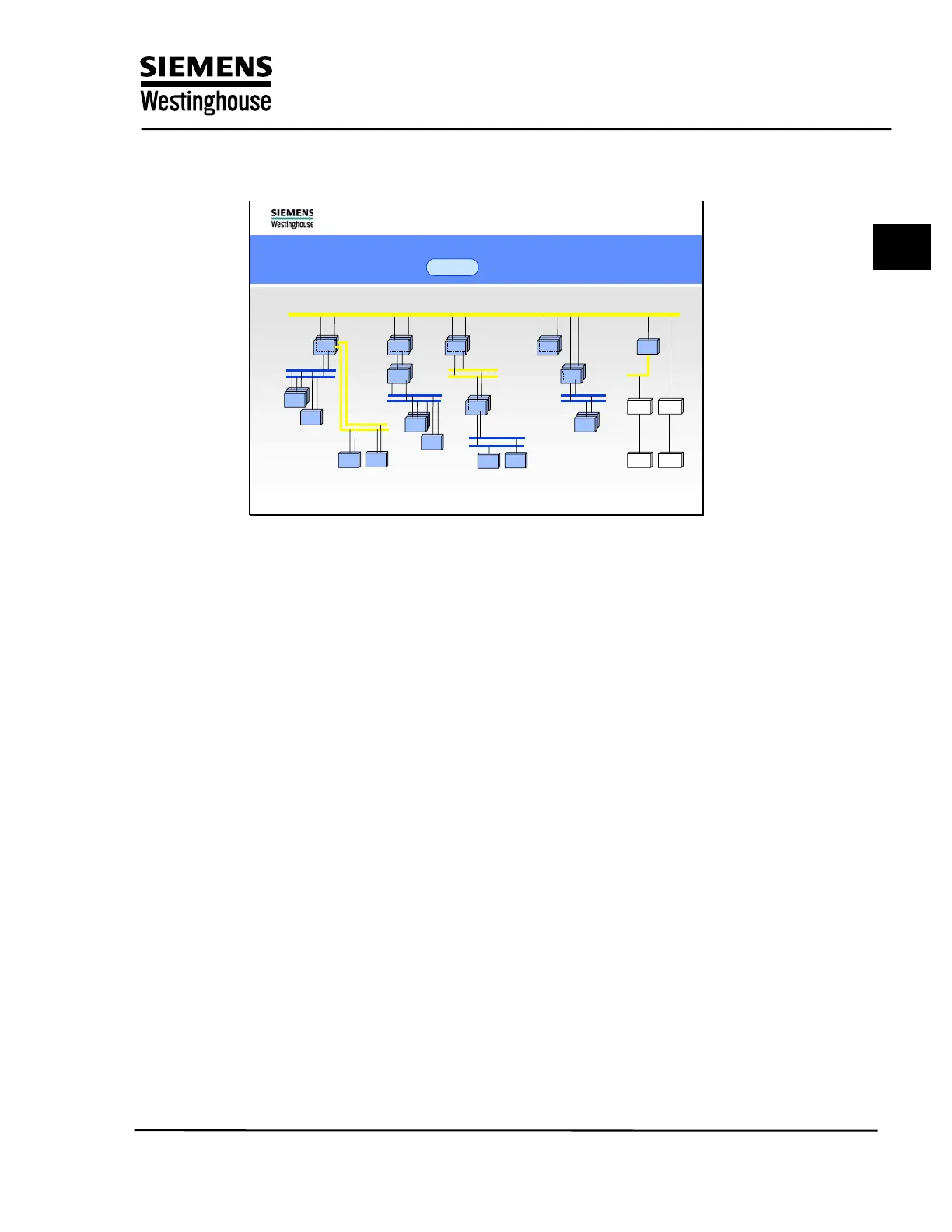

TXP Automation System AS620
Plant bus
Plant bus
FUM B
FUM B
SIM B
SIM B
AP
FUM F
FUM F
SIM F
SIM F
APF
AP
AGF
AP
SIM T
APT
AP
S5 I/O S5 I/O
S5 AG S5 AG
AS 620 B
AS 620 B
AS 620 B
AS 620 F
AS 620 F
AS 620 F
AS 620 T
AS 620 T
AS 620 T
Auxiliary plant
Auxiliary plant
Auxiliary plant
Applications featuring the
automation system AS 620
AP
AS620 meets all the characteristic automation requirements for a power plant
with just three system types:
AS620 B
For general automation tasks ranging from the protection of an auxiliary
subsystem right through to overall plant control. Apart from the classical central
configuration in sub-racks, a distributed configuration in the plant using field-
buses is also possible.
AS620 F
For protection tasks important for safety, such as at the boiler and safety controls
that are subject to licensing requirements.
AS620 T
For the fast closed-loop control functions of turbine I&C (SIMADYN).
Interfacing to SIMATIC S5/S7 permits the ancillary system I&C, which is not
necessarily included in the scope of supply of the main I&C supplier, to be
seamlessly linked to the process control system.
