Code Generator Procedures
Once all the hardware drawings (YDH, YDM, YDR), and the logic drawings with
SIM and I/O Function Blocks (BT, AT, DCM, etc.) have been completed, code
needs to be generated from them. To accomplish this, proceed as follows:

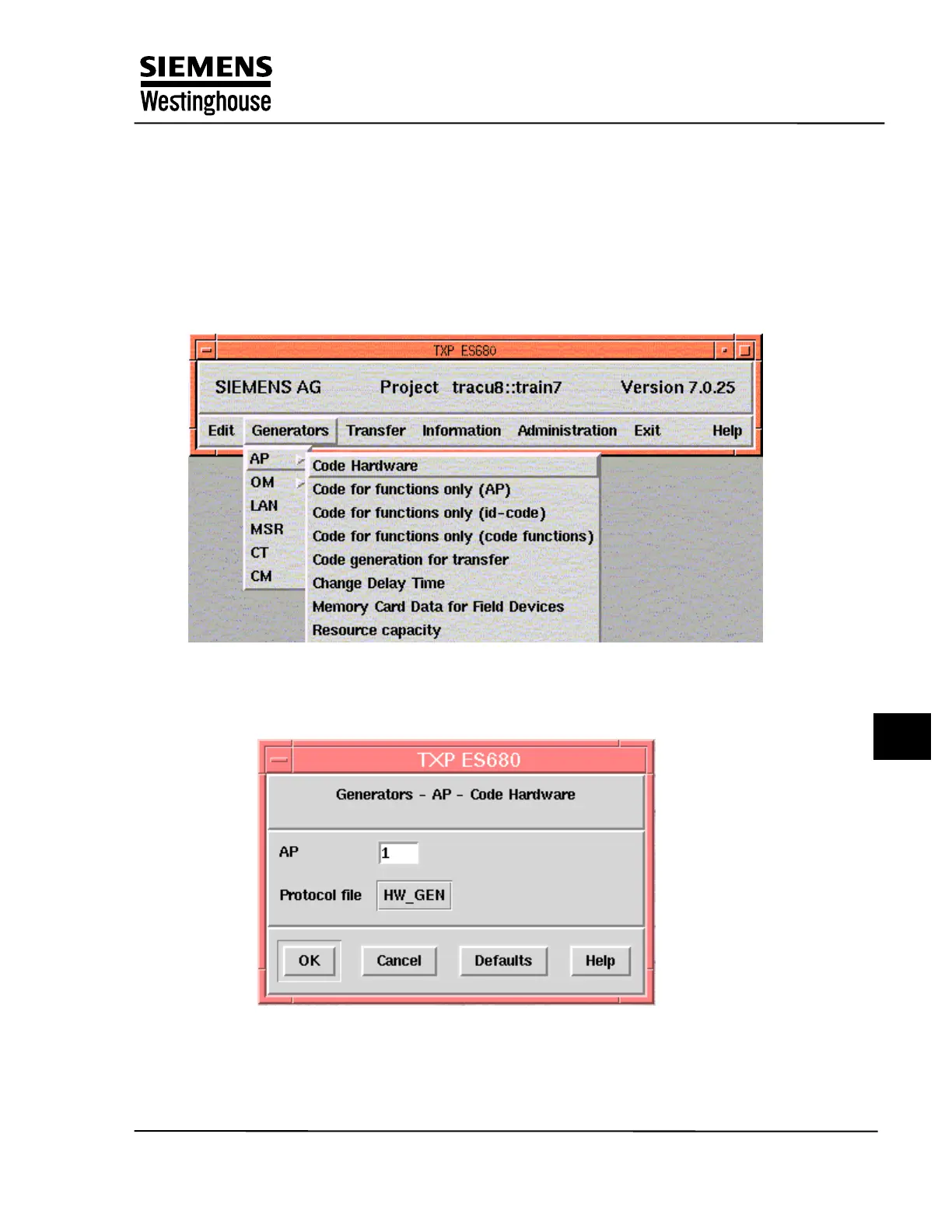

From the main ES 680 window select Generators, then AP, and then Code
Hardware as shown below:
The following menu will appear:
Type in the desired AP number then click on OK.
