TXP CLC Course
MAX limit value
For a MAX limit value the switching point is obtained by changing the measured
variable in relation to a maximum value, i.e. > MAX. For the MAX limit value the
> MAX signal is derived from the NOC of the switching device. Figures 10 and
11 show examples of > MAX signals for pressure and level. The > MAX signals
are assigned serial numbers of XG01 and NOT MAX signals are assigned serial
numbers of XG51.
5
NOT MAX MAX
XG51 XG01 XG51 XG01
50 100
PSIG PSIG
Pressure Pressure
NCC NOC NCC NOC
Set-point Set-point
≥ 75 PSIG ≥ 75 PSIG
Pressure NOT MAX or < MAX Pressure > MAX

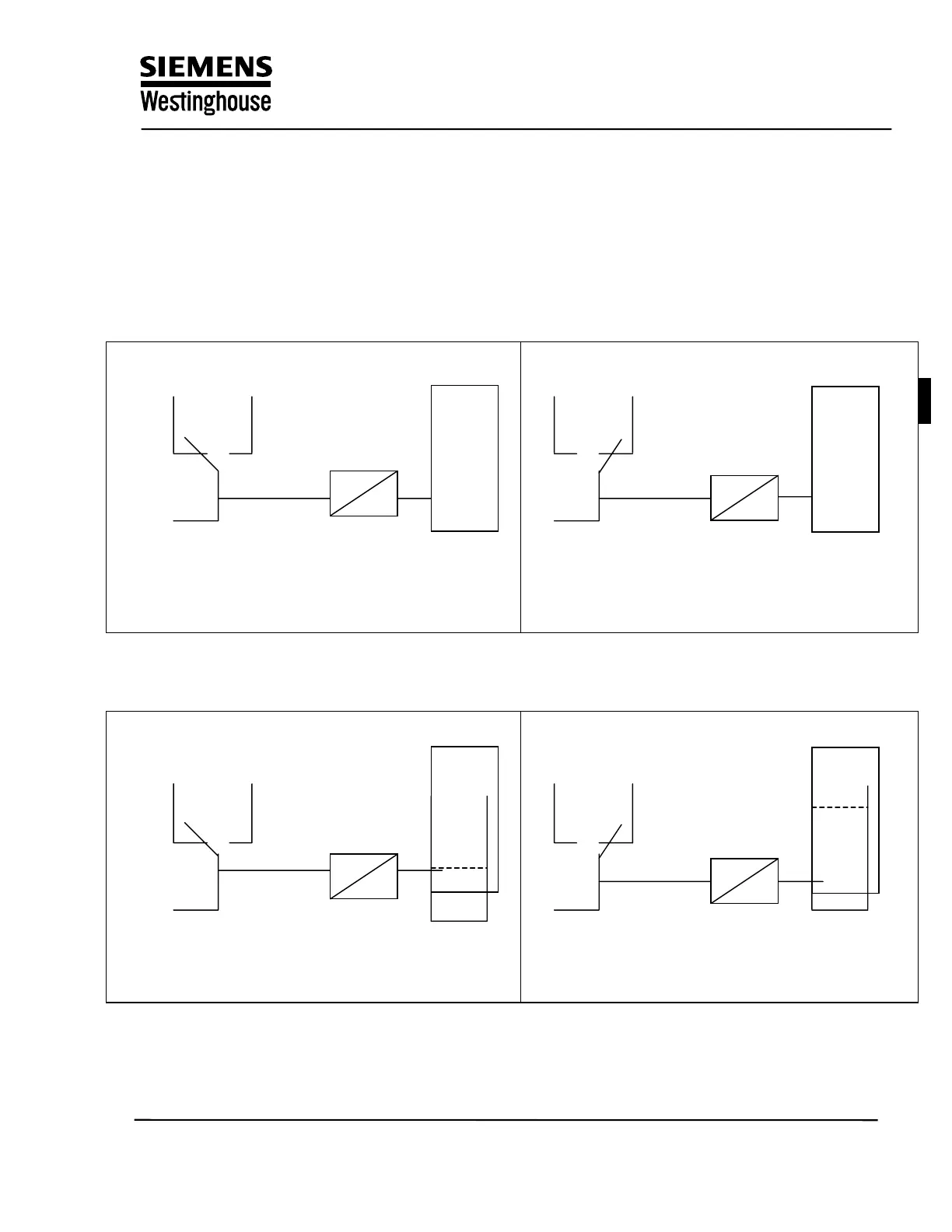

Figure 10 - MAX Signal (Pressure) - XG01/XG51
NOT MAX MAX
XG51 XG01 XG51 XG01
Level Level
NCC NOC NCC NOC
Level NOT MAX or < MAX Level ≥ MAX
Figure 11 - MAX Signal (Level) - XG01/XG51
Training Center
Copying of this document, and giving it to others and use or communication of the contents, are forbidden without express authority. Offenders are liable to the payment of
damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design.
27
