Siemens TXP-CLC - Highlights of the AS 620 System

TXP-CLC Course

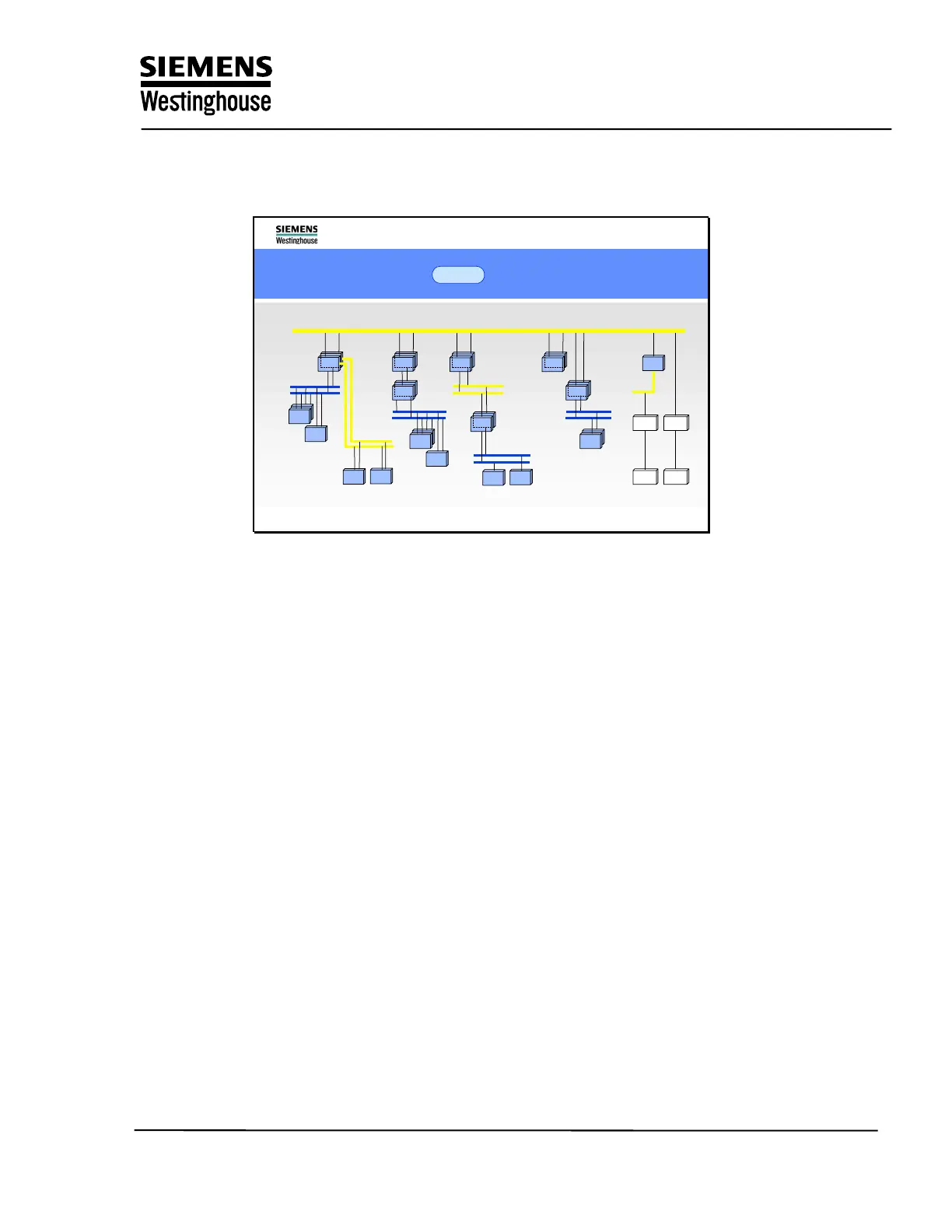

Highlights of AS 620
Plant bus
Plant bus
FUM B
FUM B
SIM B
SIM B
AP
FUM F
FUM F
SIM F
SIM F
APF
AP
AGF
AP
SIM T
APT
AP
S5 I/O S5 I/O
S5 AG S5 AG
AS 620 B
AS 620 B
AS 620 B
AS 620 F
AS 620 F
AS 620 F
AS 620 T
AS 620 T
AS 620 T
Auxiliary plant
Auxiliary plant
Auxiliary plant
AS 620
AP
• Fully integrated High Speed Turbine Controller (AS 620 T)
• Flexible configurations:
• Central configuration of the APs and FUMs in standard cabinet
equipment
• Distributed configuration of the SIMs located near the process I/O
• Integrated communication to PLCs (SIEMENS as well as other vendors’
PLCs)
• Wide variety of AP system configurations for various levels of redundancy
and special applications
• Capable of time resolution down to 1ms (FUM)
• System wide time accuracy of 10ms
