TXP CLC Course

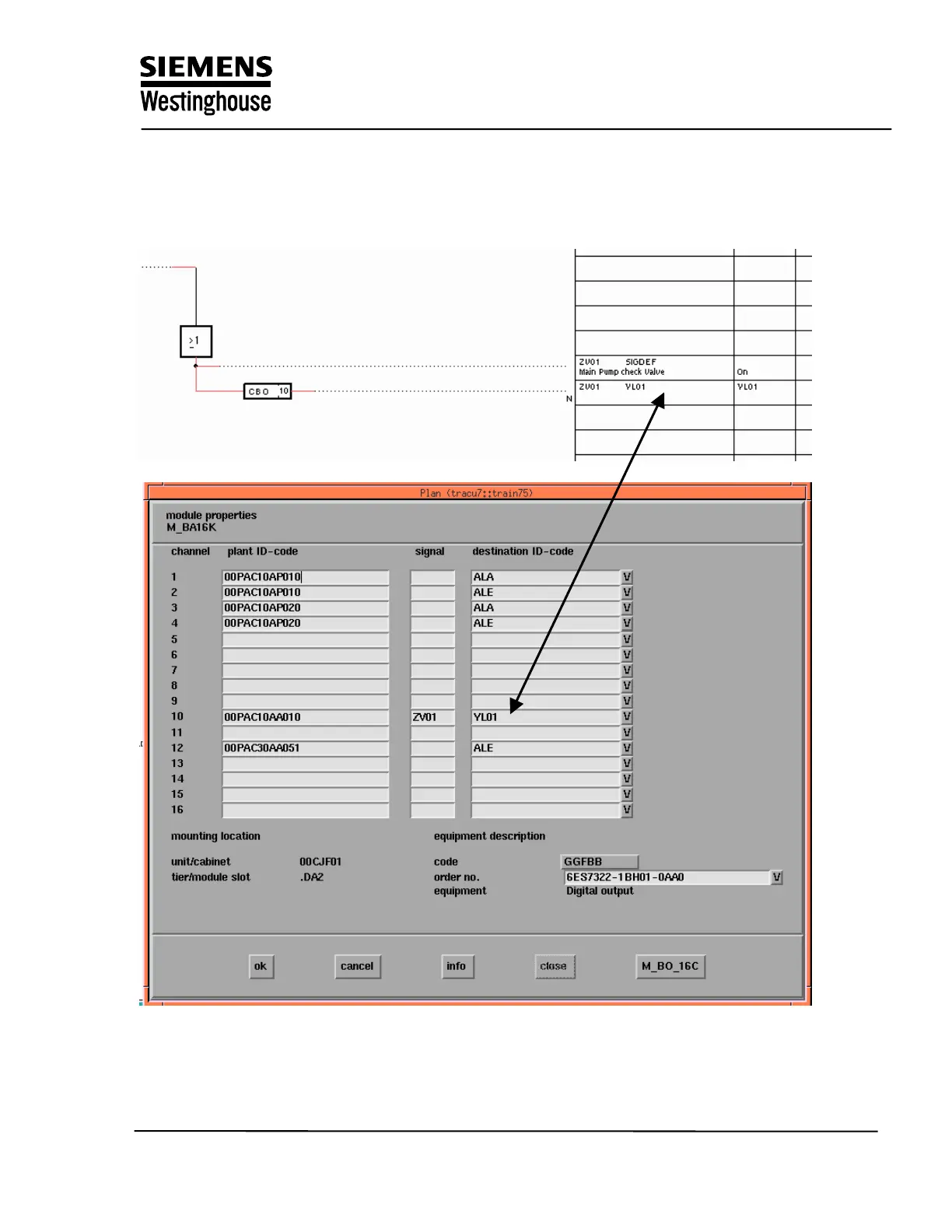

The output signal connection to the hardware from the CBO block must have
YL01 for the I. D. Code designation and the destination on the logic function
diagram (YFR) and a YL01 for the destination ID-code on the module parameter
mask of the SIM binary output module on the hardware diagram (YDR).
