TXP CLC Course
• With a blank floppy disk in the drive type:
For ES 680 HP workstations: ‘copyIM308Cfiles <AS Number>’ then enter
(e.g. copyIM308Cfiles 1)

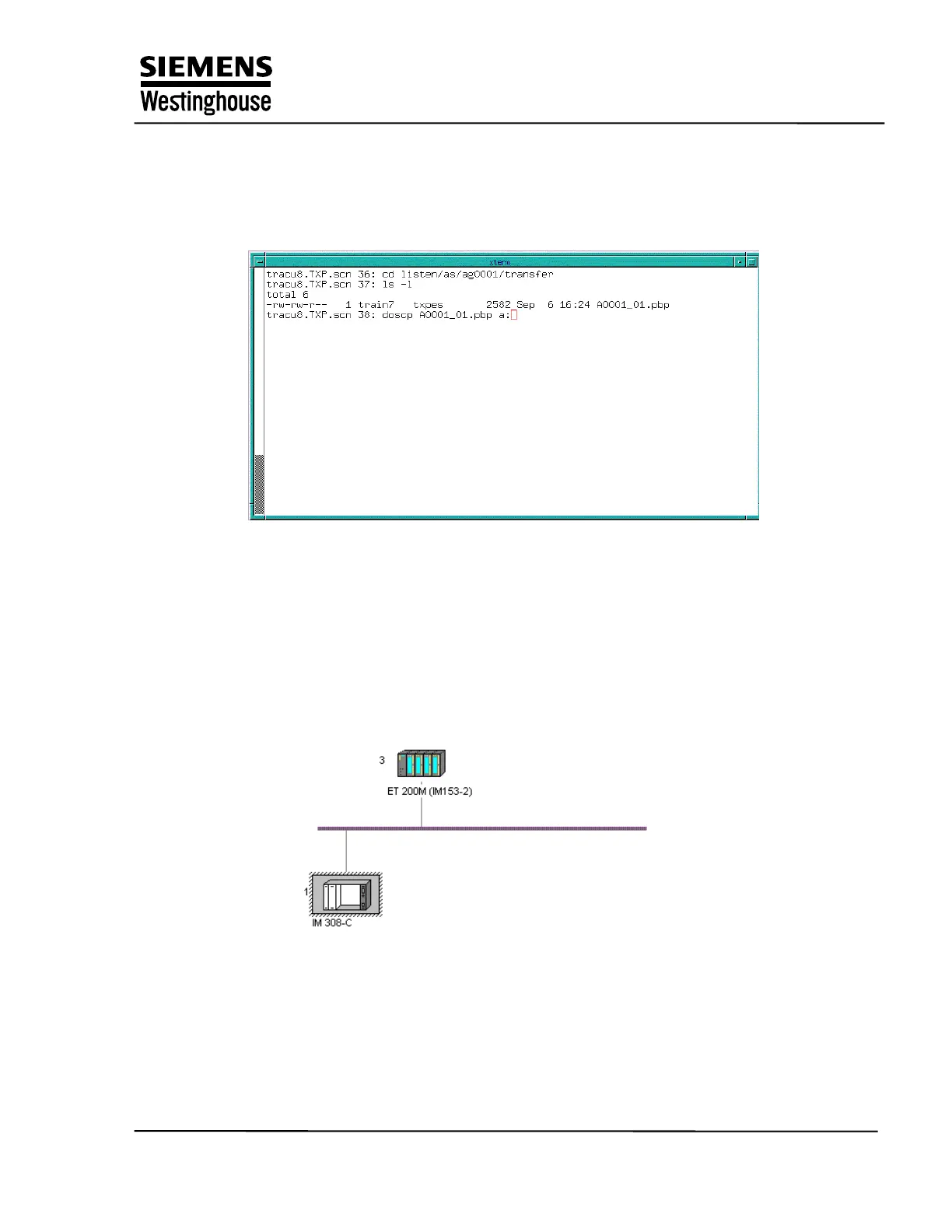

For SCO UNIX machines: ‘doscp <filename> a:’ then enter (the filename is
the name you listed in the step above) An example is shown below:
• When finished remove floppy from drive and insert into PG 740 floppy drive
• On the PG 740 start the COM PROFIBUS software
• In the main menu click on File then Import then ASCII File
• Select the a drive and double click on the .pbp file
• A Result of Conversion window will appear stating ‘no error, no warning’
• Click on OK
• A window will appear showing the Overview of Master Systems, as shown
below.
• Highlight the IM308-C card by clicking on it once, failing to do this will result in
not being able to export the file to the memory card in the steps below.
• With the new memory card inserted in the MEM CARD slot (right-hand side),
on the PG click on File then Export then Memory Card
• In the next screen change the user defined time to 0.20 seconds
• With the rack containing the IM308 C card powered down, Insert new memory
card into IM 308-C card
• Power the rack on and switch IM 308-C card to RUN
