TXP CLC Course

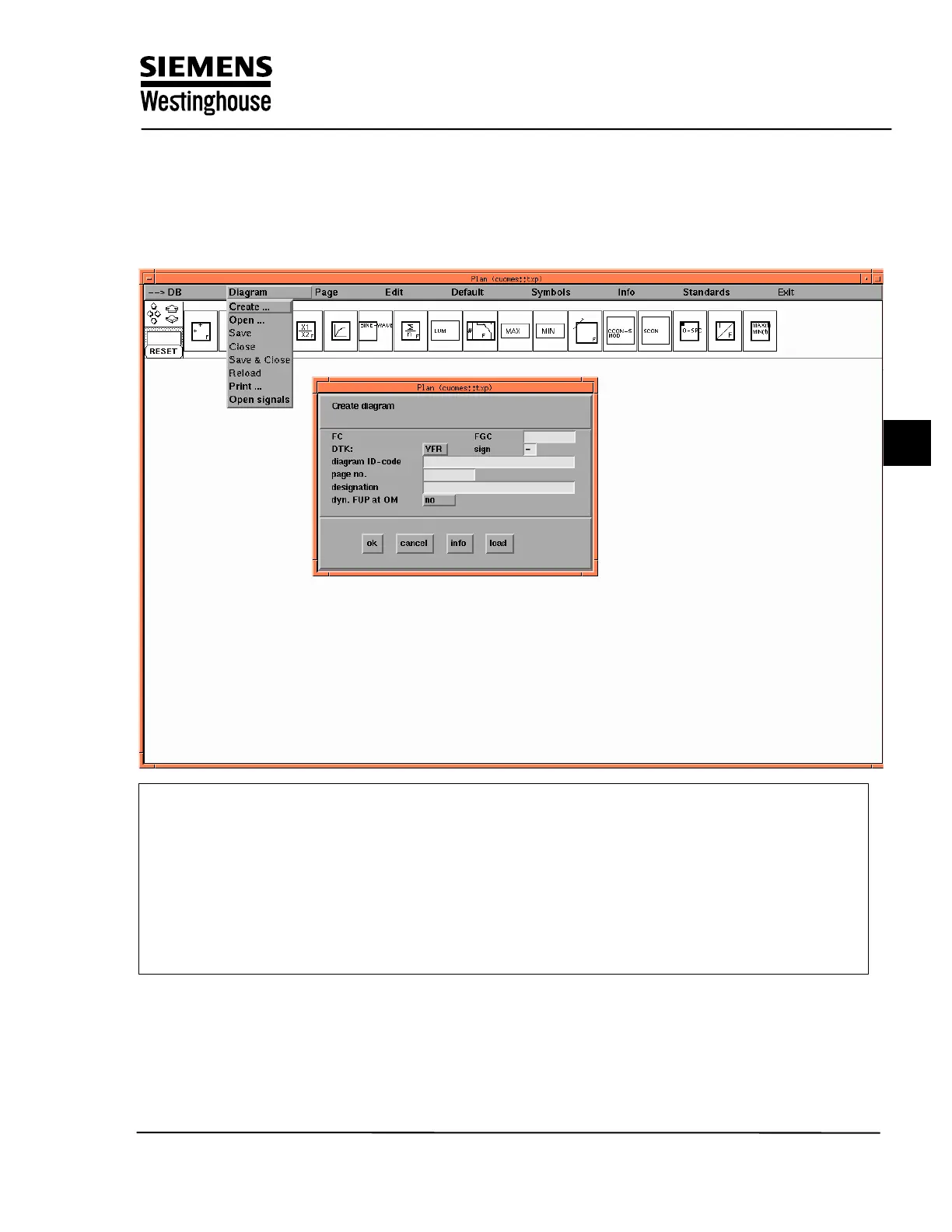

To create a new diagram, click on Diagram then Create; In the new window fill in
the appropriate information using the table below. When finished clicking on ok
will create the new diagram only; to begin editing the diagram right away, click on
load
FGC: Functional Group Complex the new diagram will belong to
DTK: Document Type Code of the new diagram (YDH, YDM, YDR, YFH, YFM, YFR, etc.)
sign: “=” indicates function oriented documentation;
“+” indicates location oriented documentation
diagram ID-code: KKS or other TAG system identification for the new diagram
age no.: space provided for inserting a page number
designation: Diagram title block description text
dyn. FUP at OM: switch to activate dynamic FUP function for OM screens
