Network Configuration, Continued
Network rings or loops can be joined via physical bridge cards. There may be no more
than two network loops connected in tandem. For every two loops that are
interconnected (using one physical bridge), there can be a maximum of three other
physical bridges used in a star configuration. See Figure 3-2.

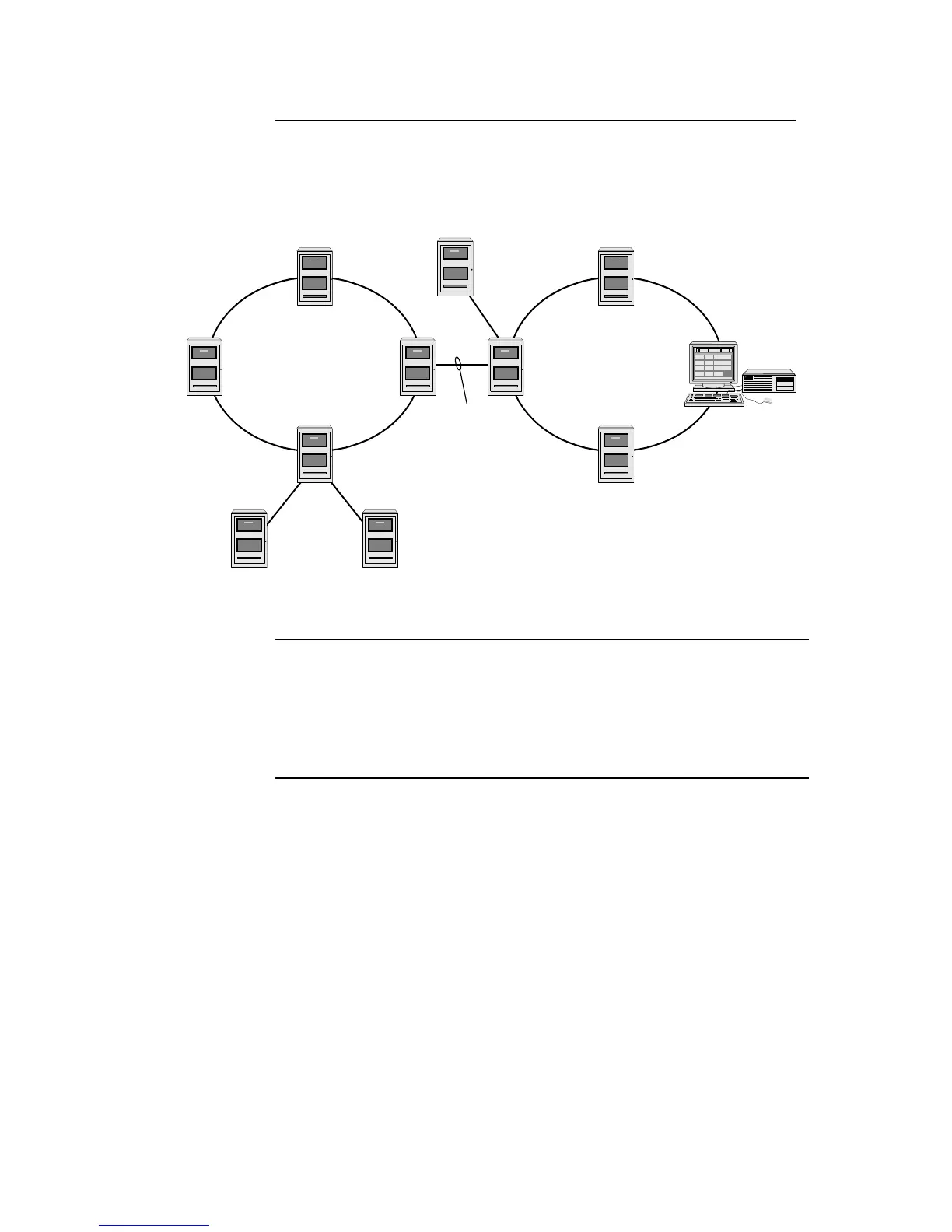

Figure 3-2. Interconnected Loop Configuration
To be used as a network node, a 4100ES-S1 panel must contain the following:
CPU
System Power Supply
4100-6014 Network Interface Card plus two Media Cards
