Ethernet Service Port and Serial Service Port
The Ethernet service port J1 on the CPU card (0566-719) is used to connect the panel to
a local PC. See Figure 6-4 for the port location.

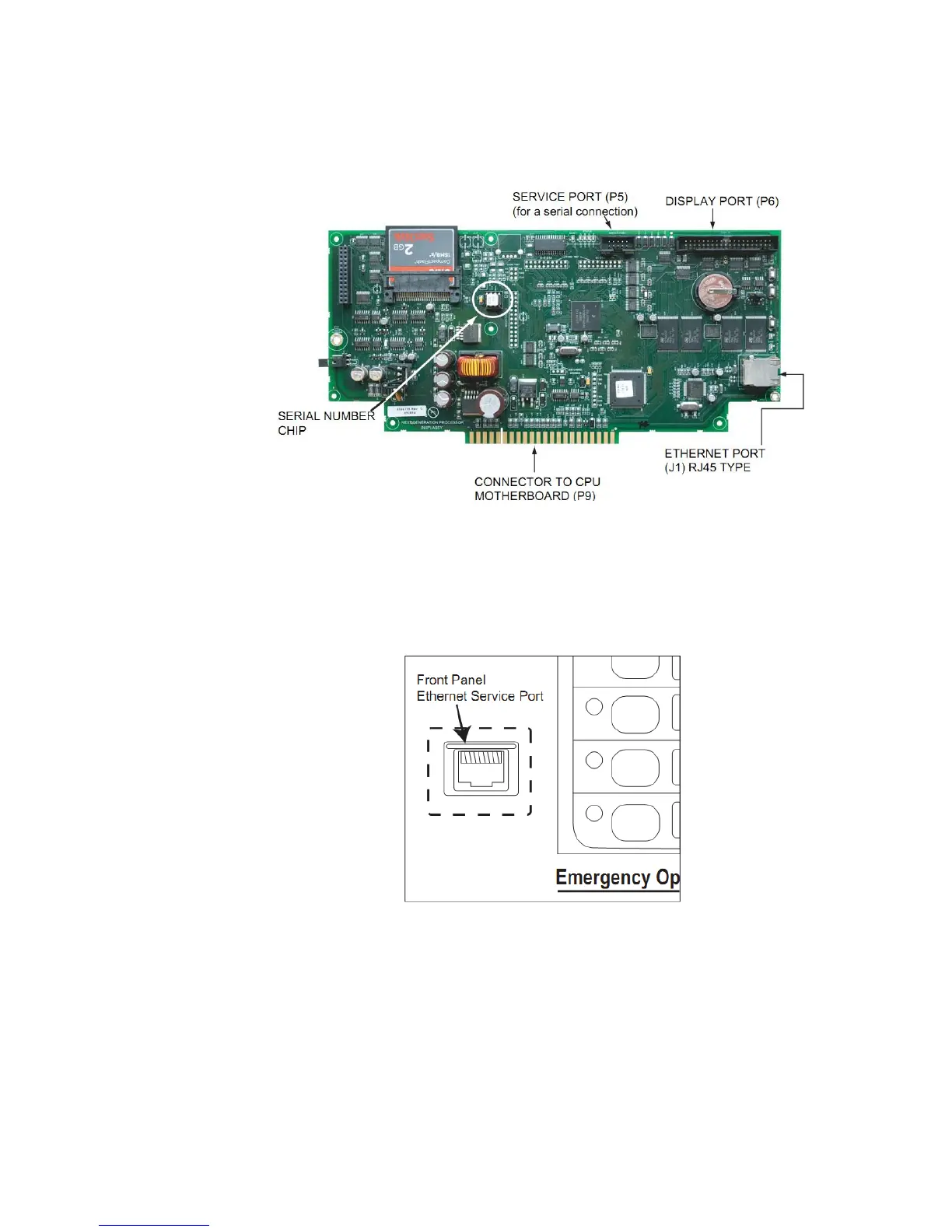

Figure 6-4. CPU card ports
The Ethernet service port connects to the front panel Ethernet connection through a
standard straight (non-crossover) Ethernet Patch Cable. The service technician should
connect the PC to the CPU card through this front panel connection with a standard
straight Ethernet cable (see Figure 6-5). If this connection is not available, you may plug
directly into the CPU Card connector J1 to the PC with a standard straight Ethernet cable.
Figure 6-5. Front Panel Ethernet Service Port
The Serial Service Port P5 on the CPU card (0566, 149, 0566-692 and 0566-719) can
also be used to connect the Panel to a local PC. See Figure 7-4 for the port location. To
use this port, the technician must connect the serial service port cable on the PC directly
to the serial Service Port (P5) on the card.
