Simplex 4100ES-S1 User Manual

5-10
Using T-GEN 50 with 4100ES-S1, Continued
Connector
block mounted
on bracket
FB COM
NO
FB
T-GEN 50
10 k ohm
resistor
LINE -
LINE +
EARTH
DC INPUT
+24V
+24V
0V
0V
ALM-
A/I/E-
SIG
DEF-
FAULT RELAY
OUTPUT
COM
NC
NO
To AUX
POWER
4100-3003
Relay
Module
Mains rated cable for
100V speaker wiring
Auto 150 (1.0 mm
2
)
or heavier

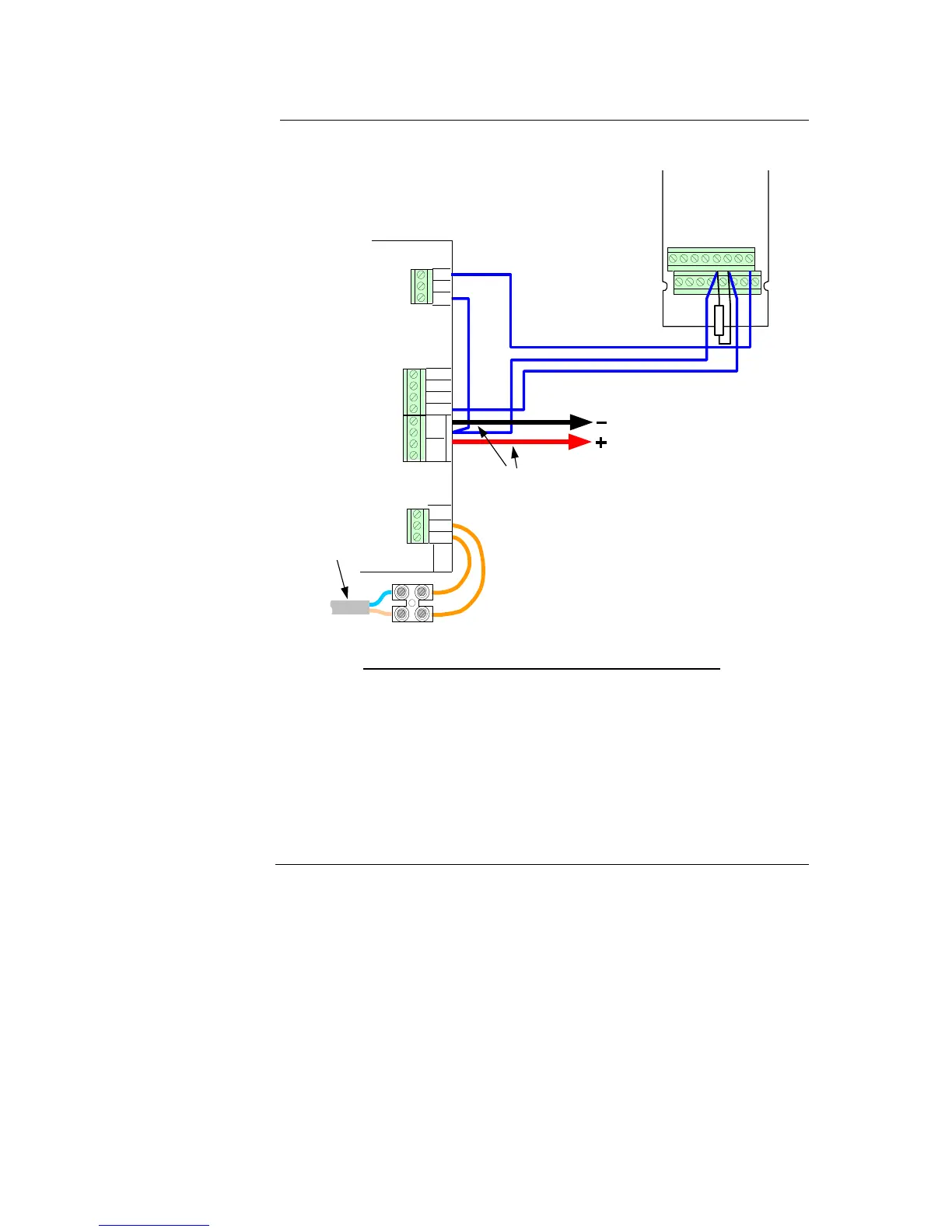

Figure 5-5. Relay Module Connection to a T-GEN 50
A T-GEN 50 can be operated and supervised using a 4100-3003 or 4100-3204 relay
module. The relay module is used to control the ALM- input to the T-GEN 50 and to
monitor the state of its Fault relay. The T-GEN 50 is configured to supervise the ALM-
wiring from the relay module and the 100V wiring to the loudspeakers.
Figure 5.5 shows the wiring between the T-GEN 50 and a 4100-3003 relay module. The
detail of the 24V supply is not shown, but the T-GEN 50 0V MUST be common with the
4100ES 0V (this will always be the case when using the AUX POWER supply, as
described earlier).
Continued on next page
Controlling a T-GEN 50
with a Relay Module
