Introduction to the 4100 Network Interface Card (NIC), Continued

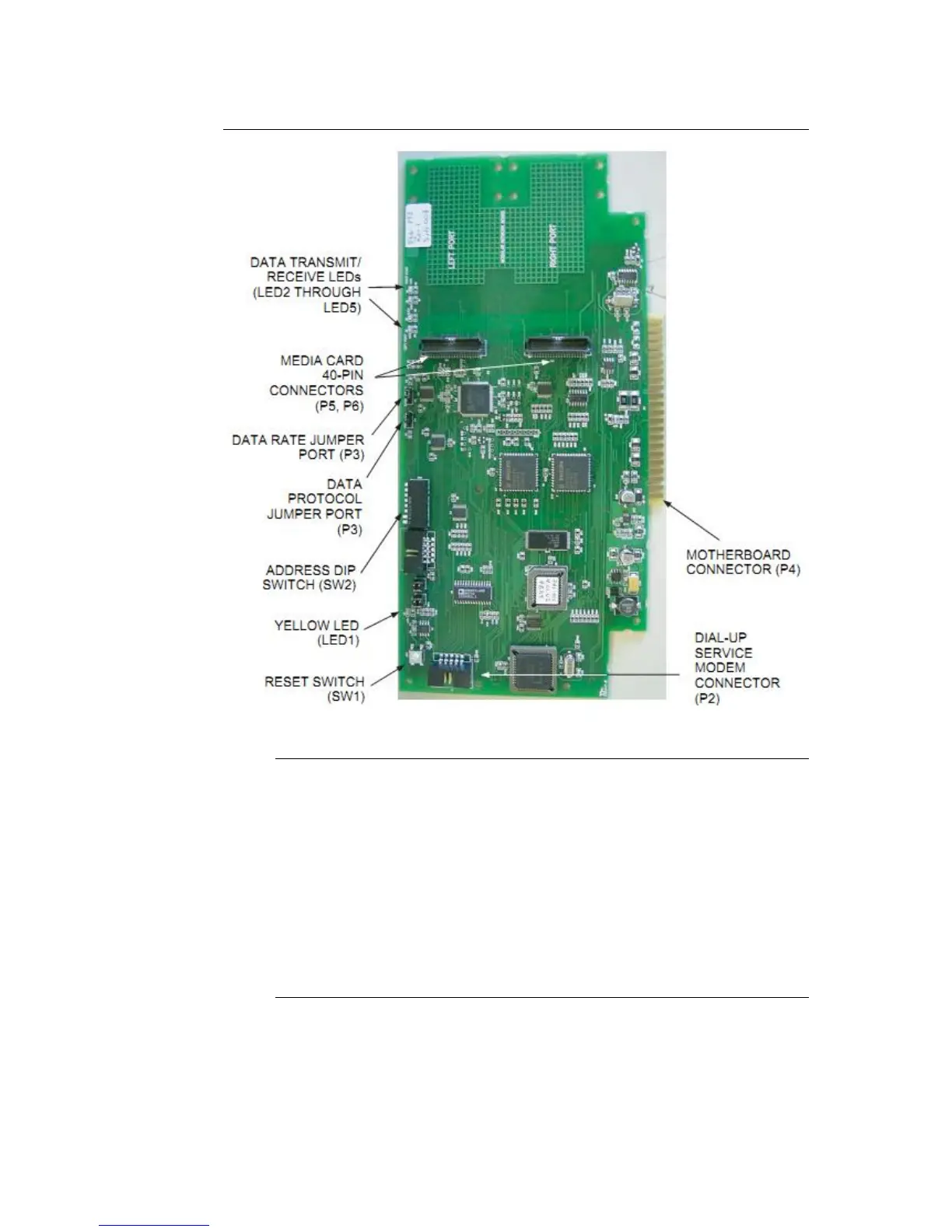

Figure 3-3. 4100-6014 Network Interface Card
The 4100-6014 NIC has the following LEDs:
LED1 (yellow). Illuminates when
The host CPU requests it to illuminate
A transmission fails
It is off-line with the host CPU
It needs to be configured
LED2 (red). Illuminates when a data „0‟ is received at the right port.
LED3 (green). Illuminates when a data „0‟ is transmitted at the right port.
LED4 (red). Illuminates when a data „0‟ is received at the left port.
LED5 (green). Illuminates when a data „0‟ is transmitted at the left port.
Continued on next page
