Simplex 4100ES-S1 - Wiring with the Wired Media Card; Figure 3-7. Coupler Wiring; Table 3-5 566-227 CPU Motherboard Wired Media Connections

3-14
Step 4. Wiring Network Cards, Continued
The illustration below shows coupler wiring.

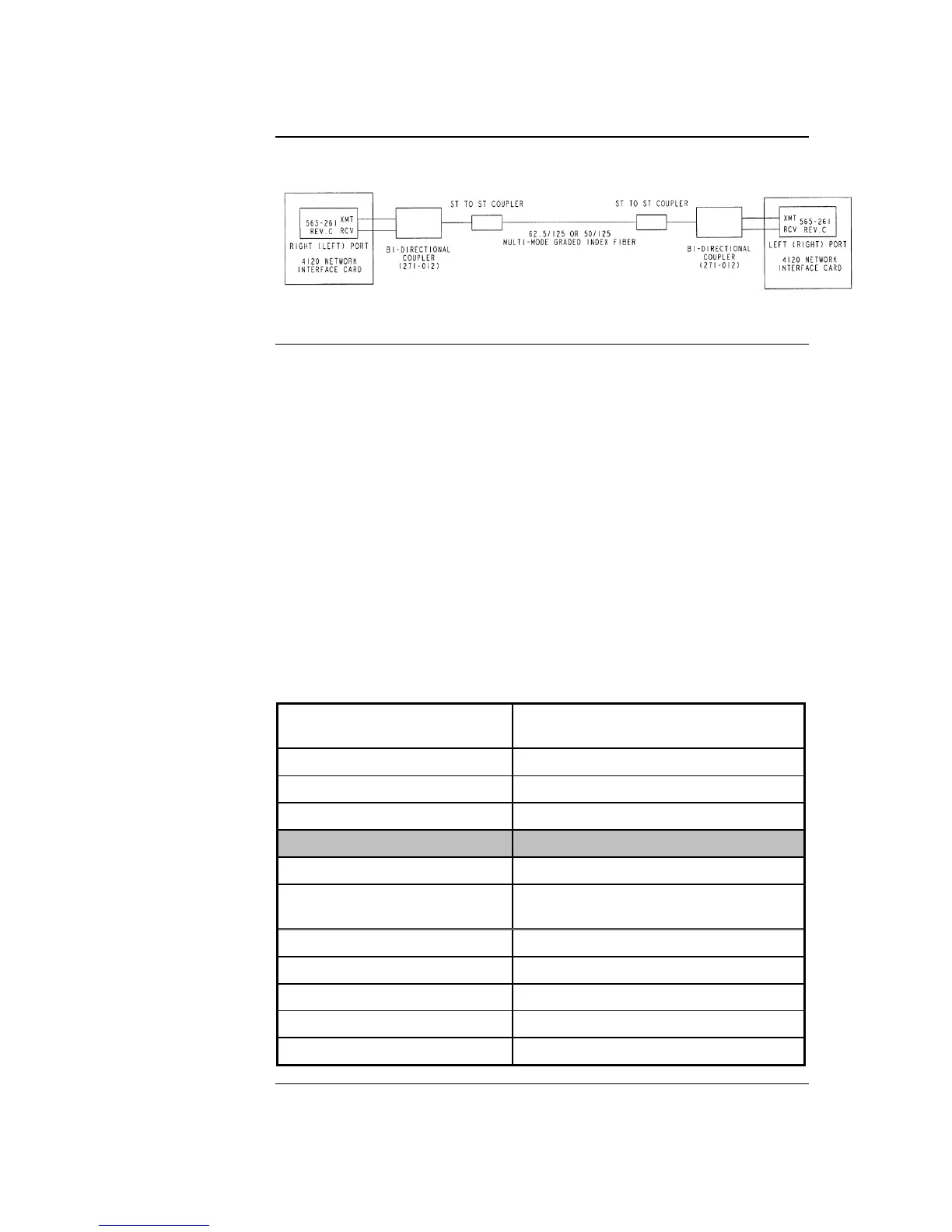

Figure 3-7. Coupler Wiring
Refer to the guidelines and figures in this topic to use wired media cards.
IMPORTANT: TB1 on the wired media card must not be used when it is
connected to the 4100-6014 NIC.
 When the 4100-6056 (565-413) Interface Card is used with the 4100-6014
Network Card, TB1 on the Interface Card cannot be used. Network wiring must
be connected to the motherboard as shown.
 The shield should only be connected at one end of the line. The shield is
connected to the left port.
 Each cable requires two ferrite beads, one at each end. Refer to Figure 5-1 for
bead wiring. Beads can be ordered as 4100-5129 (set of three).
 When wiring leaves the building, 2081-9044 Overvoltage Protectors are
required. One overvoltage protector is installed where wiring leaves the
building; another is installed where wiring enters the next building.
Table 3-5. 566-227 CPU Motherboard Wired Media Connections
CPU Motherboard Port for
Media Card Connected to P5
Wired Media Card Connection
(Left Port)
TB1-4
0 V
TB1-5
Earth ground
TB1-6
INV (-)
TB1-7
None
TB1-8
NONINV (+)
CPU Motherboard Port for
Media Card Connected to P6
Wired Media Card Connection
(Right Port)
TB3-1
NONINV (+)
TB3-2
Reserved
TB3-3
INV (-)
TB3-4
Earth ground
TB3-5
0 V
Continued on next page
4190-9010 Coupler
Requirements
(continued)
Wiring with the
Wired Media Card
