Simplex 4190 User Manual

5-5
BLK
Pin 3
WIRE B
WIRE A
WIRE C
RED
Pin 2
GRN
Pin 7
WHT
n/c
BLK
Pin 3
WIRE B
WIRE A
WIRE C
RED
Pin 2
GRN
Pin 7
WHT
n/c
JUNCTION BOX
4190 IMS
Assy: 733-571
JUNCTION BOX
DB25
female
DB25 male (pins)
Assy: 733-572
DB25 female
2120
TROP232SR
NOTES
BMUX
12
3
4
4
Assy: 733-572
TYPICAL CONNECTION
ON QUAD SERIAL
PORT CARD
6
10
1
5
RED
BLACK
GREEN
1
2
3
INSTALLED CABLE 18AWG, OR TO LOCAL CODE.
2500 FEET MAX.
RS232 BAUD RATE IS 1200.
RS232 POWER IS 10 mA (MAX. ).
4
FOR CANADIAN INSTALLATIONS, USE LOCALLY ACCEPTED
TERMINAL BLOCK IN ELECTRICAL JUNCTION BOX.
CONNECT TO PORT
2, 3, 4, 5 or 6
REAR VIEW OF QUAD
SERIAL CARD 566-693
LOCATED INSIDE THE IMS
CH. 4
CH. 3
CH. 2
CH. 1
3 : RXD
4 : CTS
8 : GND
9 : TXD
TYPICAL
6
10
1
5

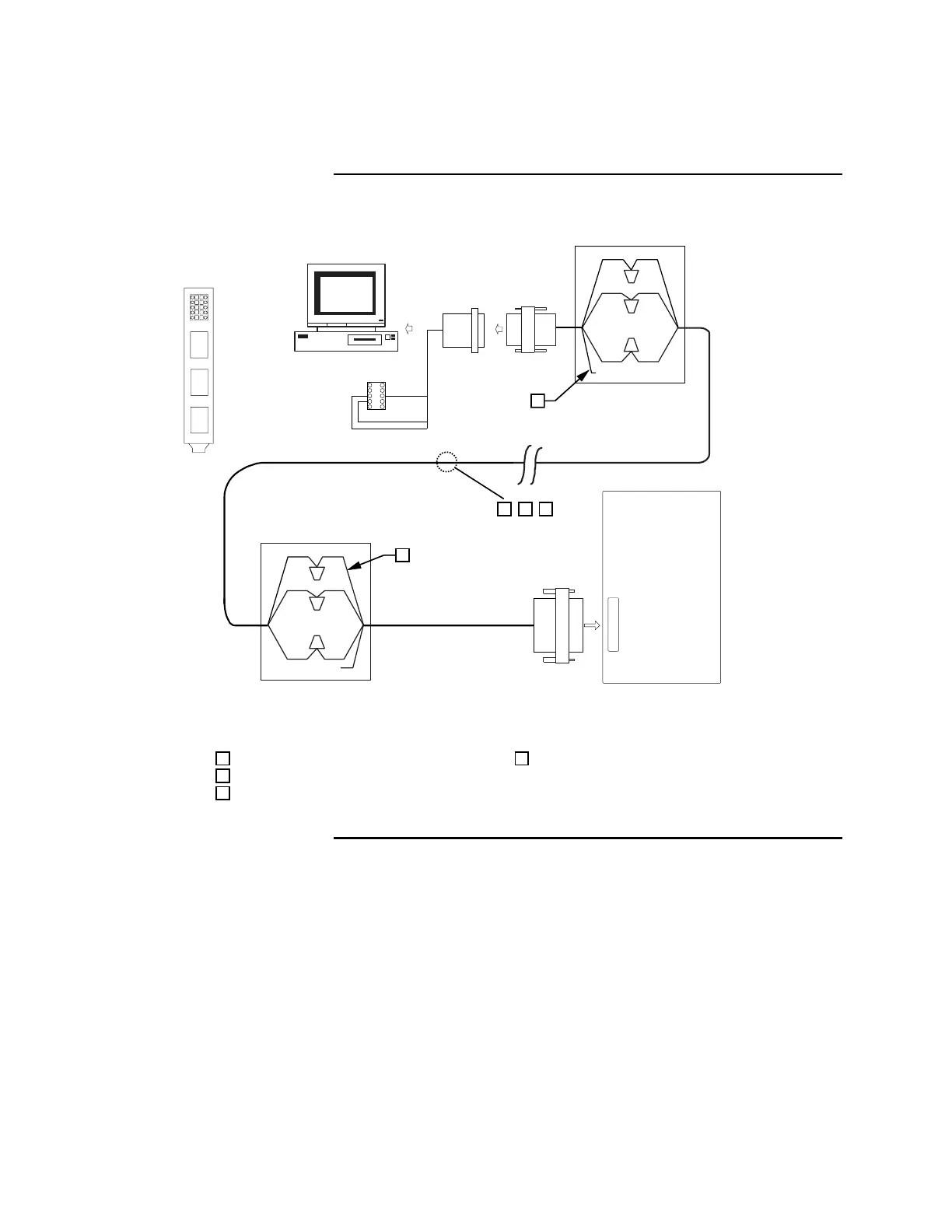

Figure 5-2. Connecting 2120 BMUX Nodes to the IMS
If your RS-232 card has a DB25 male connector, complete the following steps.
Refer to Figure 5-1 for help. (If it has a DB9 male connector, complete the
steps in the previous section.)
1. Ensure that the power is OFF before starting this procedure.
2. Complete all wiring according to the wiring shown in Figure 5-1.
3. Use the junction boxes at each end of the installed cable to terminate the
field wiring between harness 733-571 and 733-572.
4. Complete Steps 1 through 3 for each node you are installing.
5. After connecting the node(s) to the IMS, turn the power ON. The IMS
automatically boots up to the initial program screen.
