After choosing the location for the equipment, you are ready to connect the
equipment in preparation for the installation of the software.
Note: If you need to install additional cards into the IMS, or
modify existing card settings, please do so before
connecting the equipment.
To install the hardware, place the PC in the desired location and connect the
equipment you will use with the system (printer, mouse, etc.). A typical 4190
Information Management System hardware configuration is shown in
Figure 2-1.
Note: Re-seat the various PC boards into the motherboard. This
helps ensure that you have complete electrical connections.
The IMS rack-mount (18” LCD monitor [459 mm]) is shown in Chapter 4.
NETWORK INTERFACE
UL CARD
VIDEO BOARD\BUS MOUSE
TOUCH SCREEN
POWER
SUPPLY
UPS
MONITOR
PRINTER
POWER IN
4190 NETWORK COMM
4190 NETWORK COMM

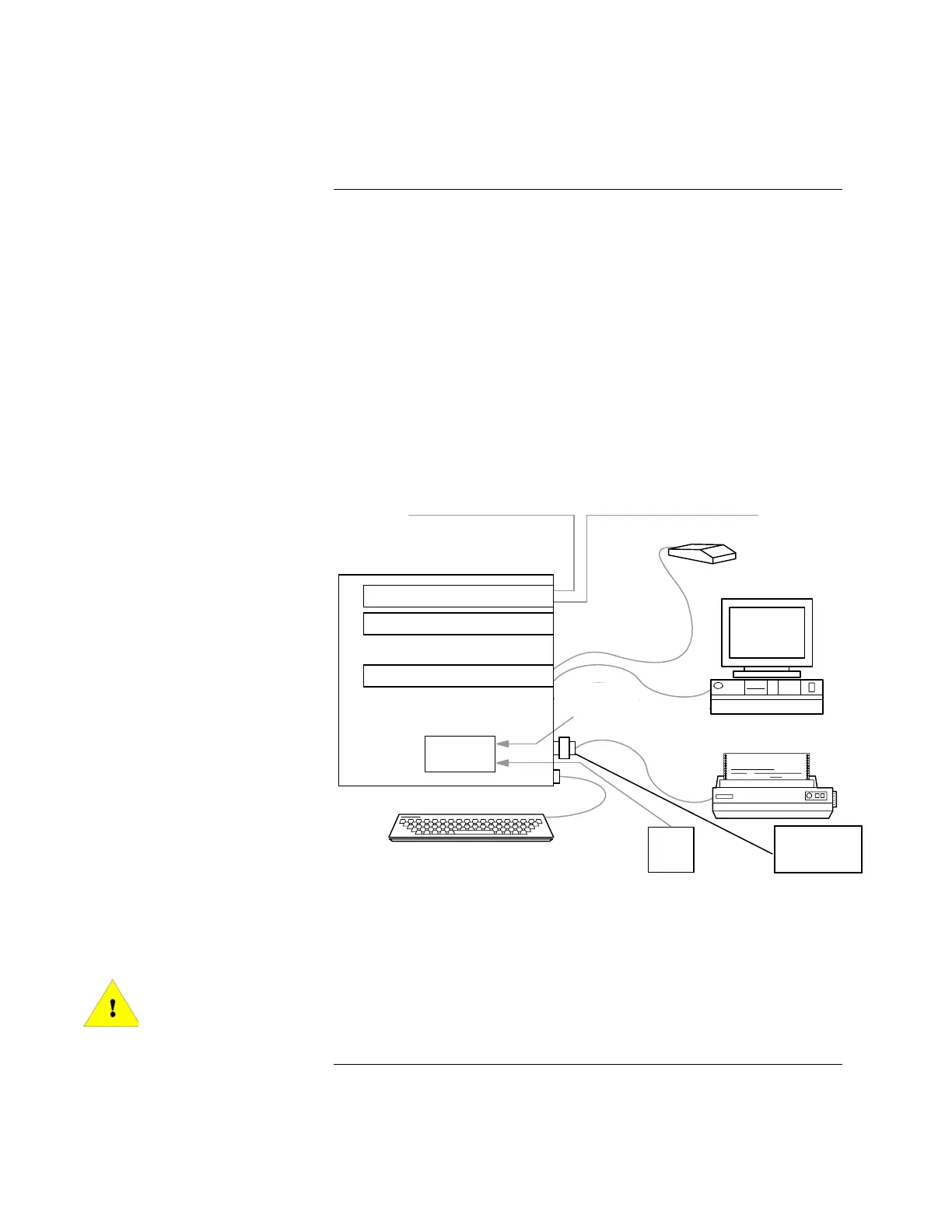

Figure 2-1. Typical 4190 Information Management System Block
Diagram
WARNING:
Do not plug the keyboard or keyboard adapter into a powered unit! This
will damage the CPU board. All equipment must be powered down before
adding any hardware.
Continued on next page
Connecting the IMS to the System
Connecting the Equipment
