6. Loosen the high pressure pipe line
union nuts from FIP side. (Fig.F.8)
7. Loosen the high pressure pipe cap nuts
from injector side and remove the pipes.
(Fig.F.9)
8. Remove the lubrication oil pipe from FIP to
Cylinder Block where tted. (Fig.F.10)
9. Disconnect the fuel pipes to the pump and
blank off all ports against the ingress of dirt.
(Fig.F.11)

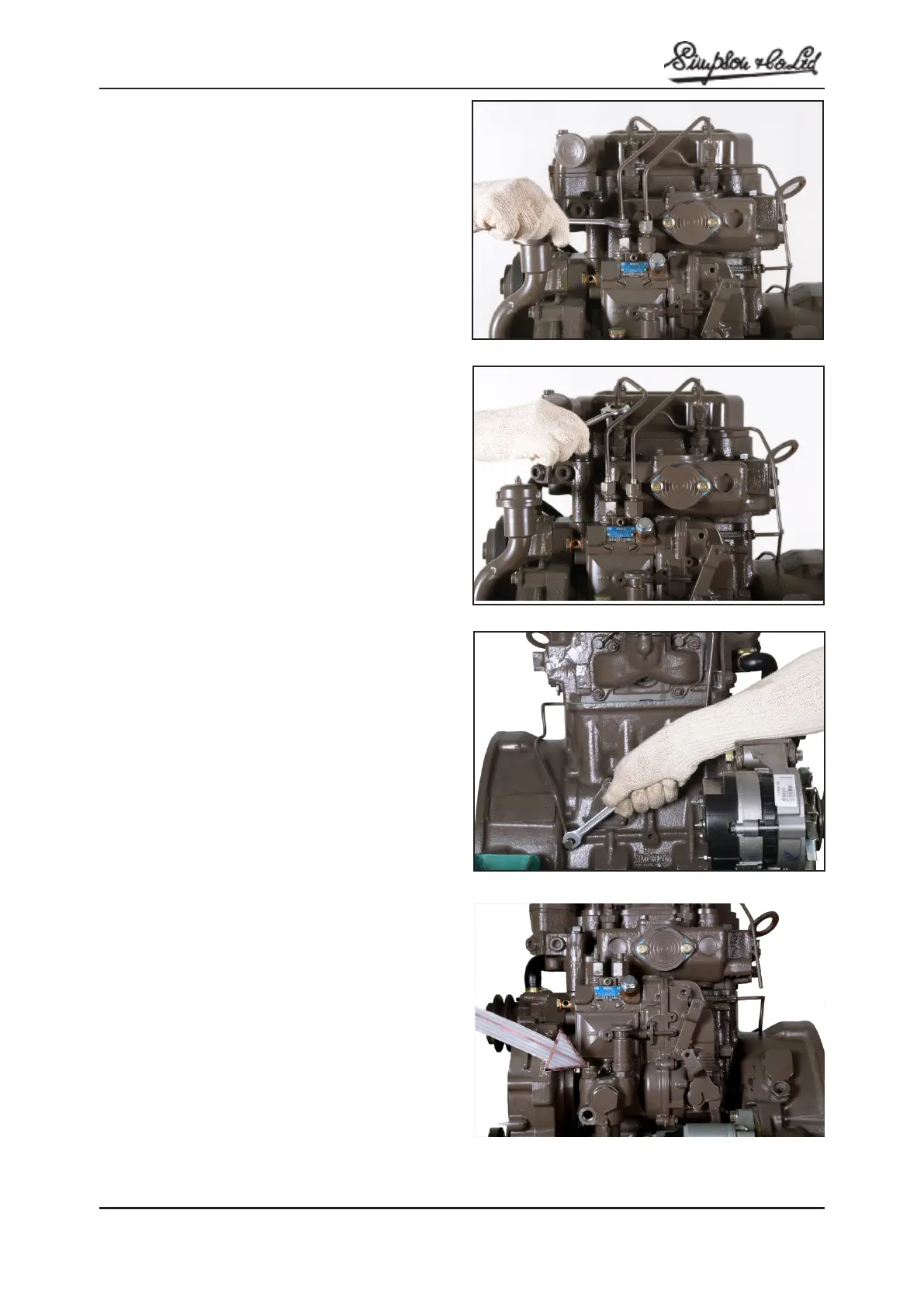

Fig: F.8
Fig: F.9
Fig: F.10
Fig: F.11
