SC213 Diesel Engines

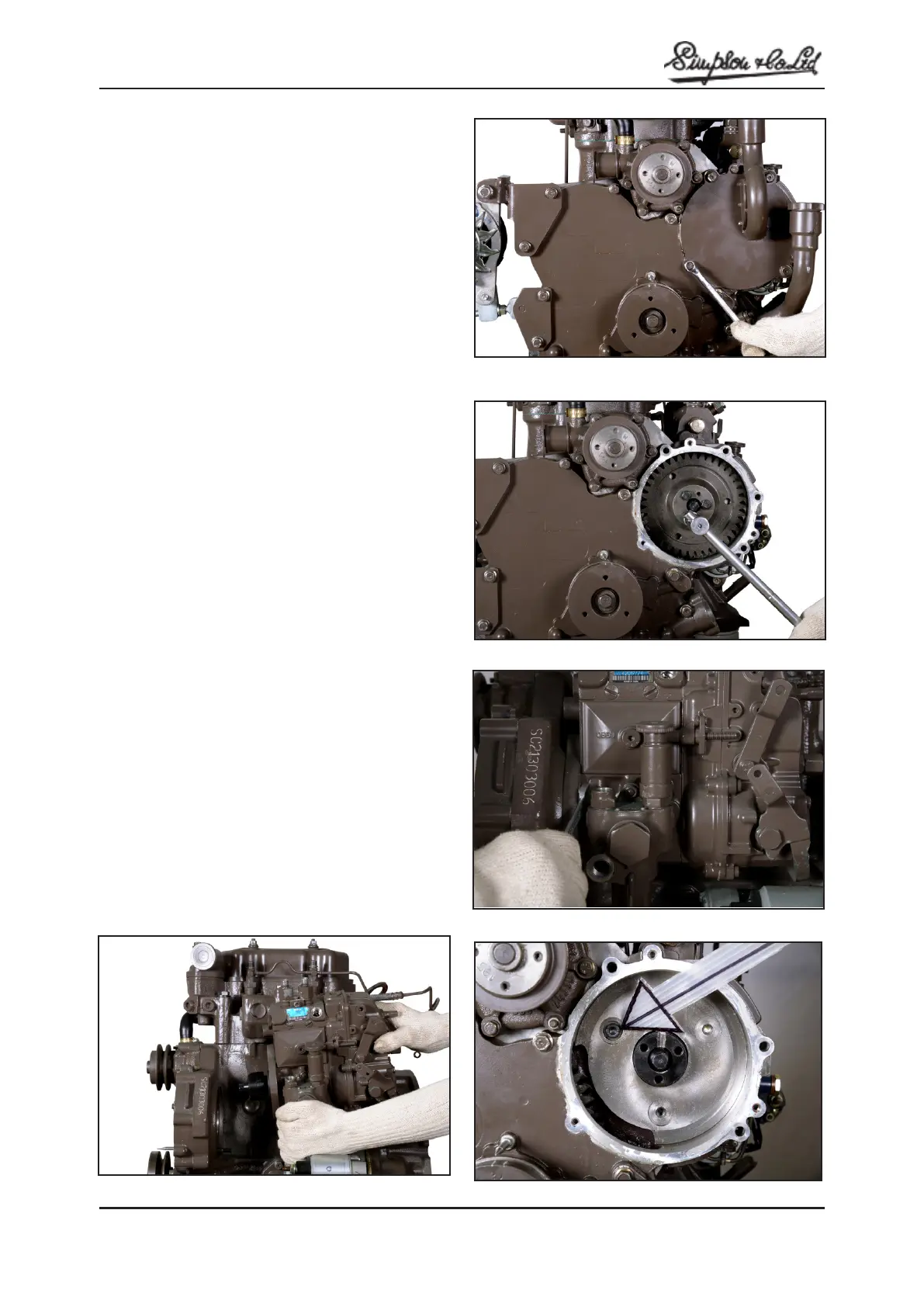

10. Loosen the screws of Inspection cover
and remove cover. (Fig.F.12)
11. Carefully remove the three setscrews and
washers securing the gear to the fuel
pump. Great care must be exercised while
removing these setscrews should one be
dropped into the timing case, considerable
time and labour would be involved in recover-
ing it. (Fig.F.13)
11. Release and remove the two nuts, and
one setscrew (Allen screw) securing the
ange of the fuel injection pump to the back of
the timing case. (Fig.F.14)
The Allen screw with nut used for easy accesi-
bility (Figure F.15)
12. Take out the fuel injection pump. (Fig.F.16)
Fig: F.12
Fig: F.13
Fig: F.14
Fig: F.15
Fig: F.16
