SC213 Diesel Engines
11.Fit all other connections removed earlier
in reverse order
Note : Spill timing is advanced when FIP is
moved towards cylinder block in the slot and
retarded when moved away from the block.

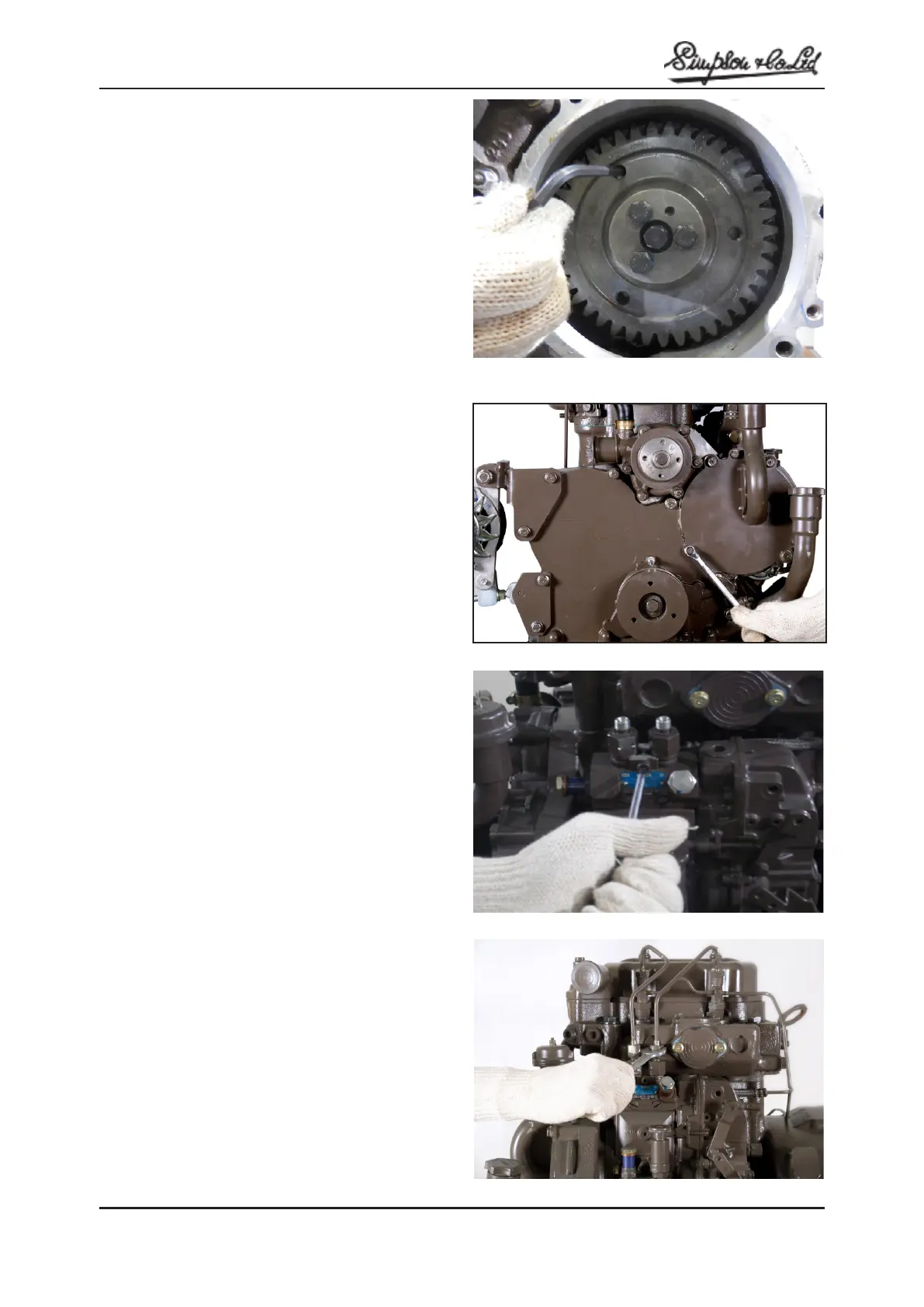

Tighten the Allen screw (6 mm) through the
recess in the gear as shown in gure before
inspection cover is tted. (Fig.F.33)
Ret the inspection cover and tighten the set-
screws. (Fig.F.34)
Ret the FIP inspection cover and tighten the
centre clamp allen screw. (Fig.F.35)
Fig: F.33
Fig: F.34
Fig: F.35
Fig: F.36
