Introduction
System overview
The basic system consists of the processor and one or two monitors.

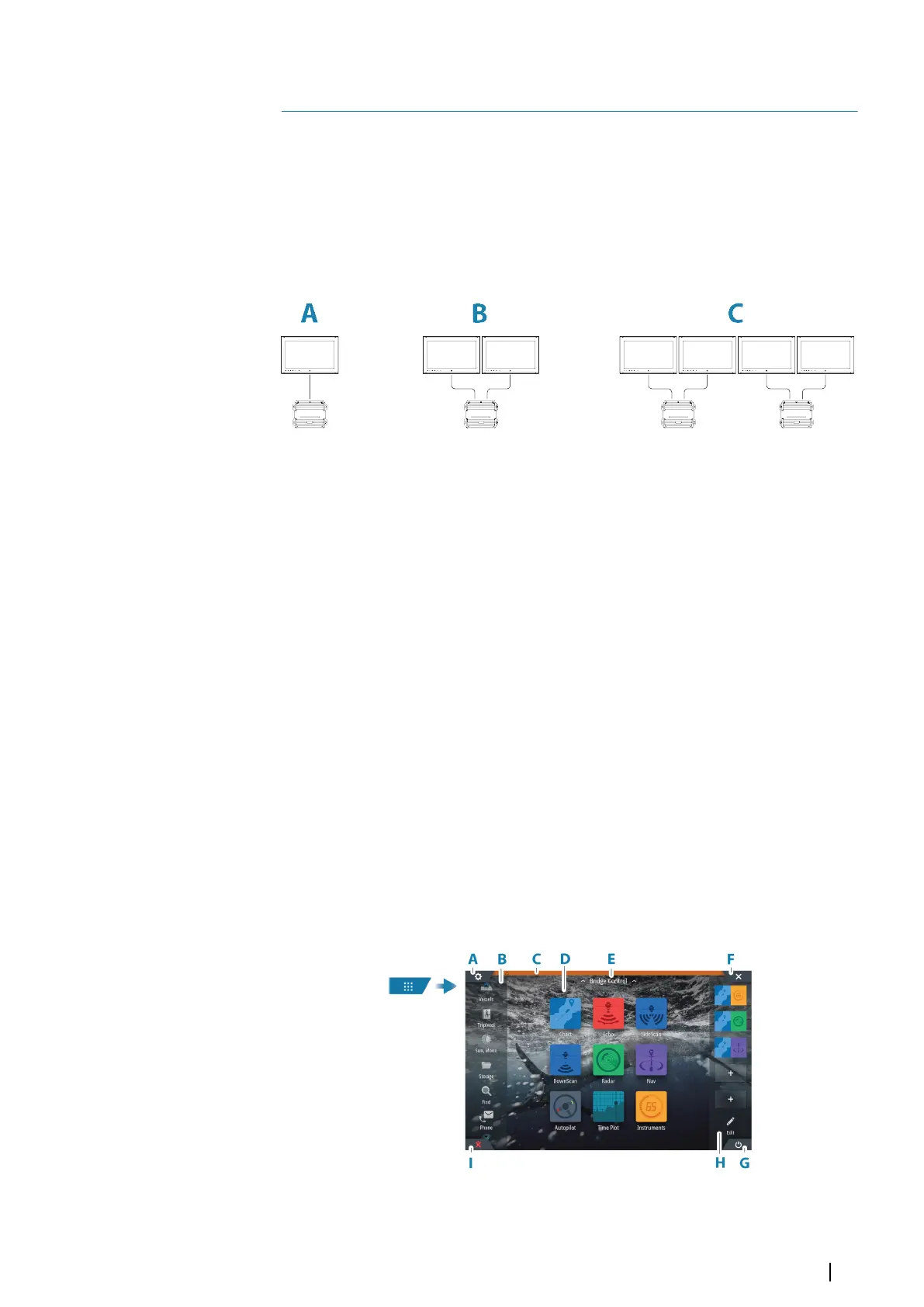

The system can be configured and installed in various configurations:
• One processor with one monitor (A)
• One processor with two independent monitors (B)
• A complex network where additional networked processors are connected to
independent monitors throughout the boat (C)
For installation instructions refer to the separate installation manual.
Ú
Note: Special installation requirements and operation limitations apply if this system is
part of an ECDIS system. Refer to the ECDIS documentation for more details.
Operating the system
The system supports single and dual touch-screen operation when compatible touch
monitors are connected.
If a compatible remote controller is available on the network, this can control multiple
processors and monitors, including power control. A separate manual is delivered with the
remote controller units.
You can also use a keyboard and mouse/trackball to control the system. Once these devices
are connected to the USB ports on a processor, they can be used to control the monitors
connected to the same processor.
The USB ports can be configured to accommodate various types of controllers. If the USB
port is set to switchable you can switch control of monitors by pressing the Ctrl key on a
keyboard twice, or by clicking the middle button on the mouse.
The active controller is indicated with an icon in the status bar.
This manual does not include details about operation by alternative controllers, unless for
features or options where it is required to show all options.
For touchscreen, keyboard and mouse operation details, refer to the "Appendix" on page 145.
Home page
The Home page is accessed from any operation by selecting the Home button.
A Settings button
