Simrad NSO evo3S MPU User Manual

A Red - Critical
B Yellow - Warning
C Green - Safe

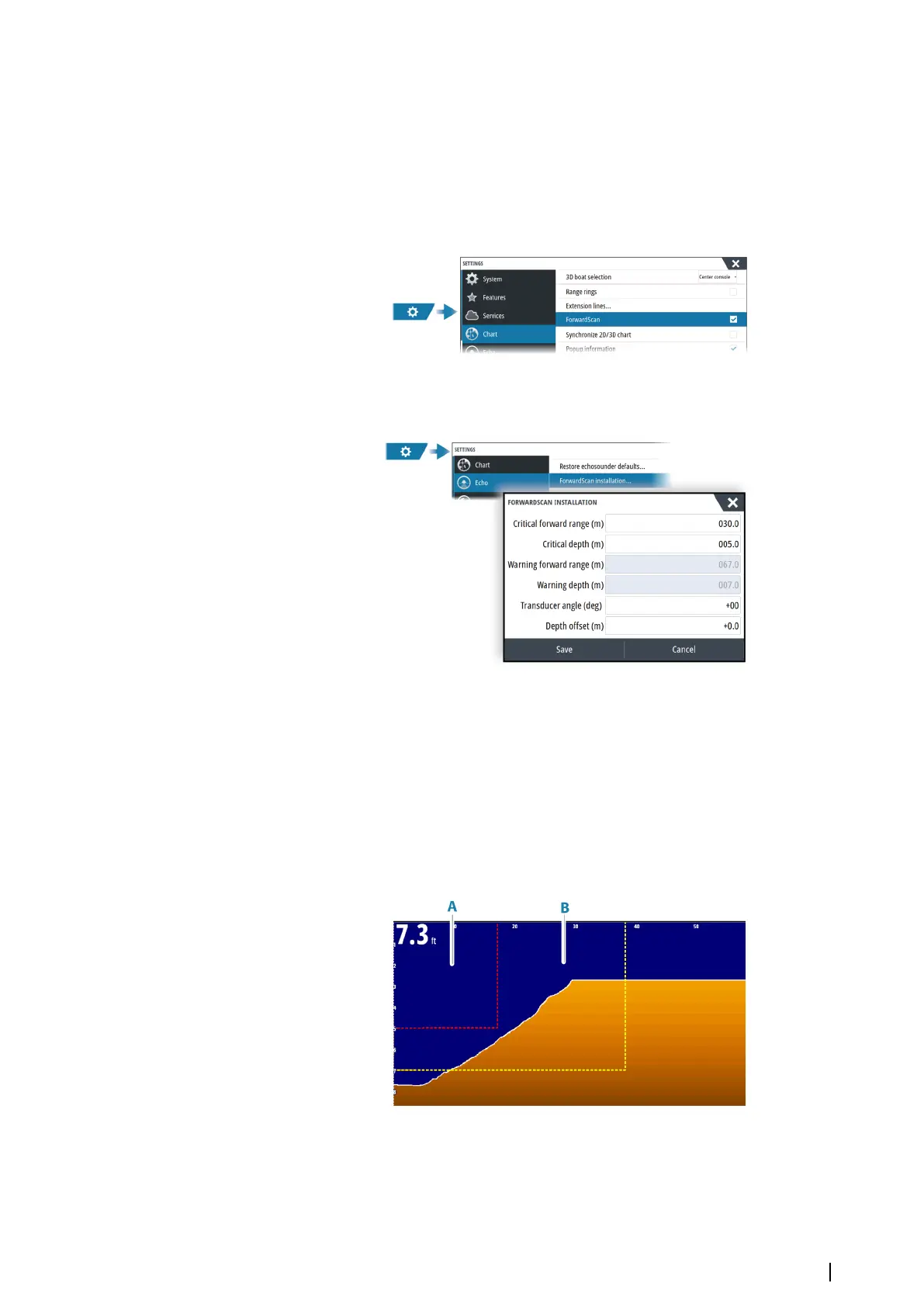

Setting up ForwardScan extensions
Select ForwardScan in the chart settings dialog to view the ForwardScan heading extension
on the chart panel.
ForwardScan installation settings
Specify the setup in the ForwardScan installation dialog.
Critical forward range and Critical depth
Critical Forward Range and Critical Depth are user-selected thresholds that define a critical
zone forward of your vessel.
If the alarm is turned ON and you travel into water shallow enough to cross into the critical
zone, the Critical Zone alarm is activated.
To receive Critical Zone alarms, enable the Forward range alarm in the Alarm settings dialog.
For more information about enabling alarms, refer to "Alarms" on page 132.
You can show the critical warning zones on the image by activating the Show zones menu
option.
A Critical zone
B Warning zone
ForwardScan| NSO evo3S MPU Operator Manual
89

Simrad NSO evo3S MPU Specifications

General

Video Output	2 x HDMI
Connectivity	Wi-Fi, Bluetooth
Operating System	Linux
Ethernet Ports	2
USB Ports	2
Operating Voltage	12/24V DC
Power Supply	12/24V
