Simrad NSO evo3S MPU User Manual

Power-Pole Charge module
The Power-Pole battery charge management system displays battery status information.
For installation, wiring and setup information, refer to the Power-Pole documentation
supplied with the charge module.

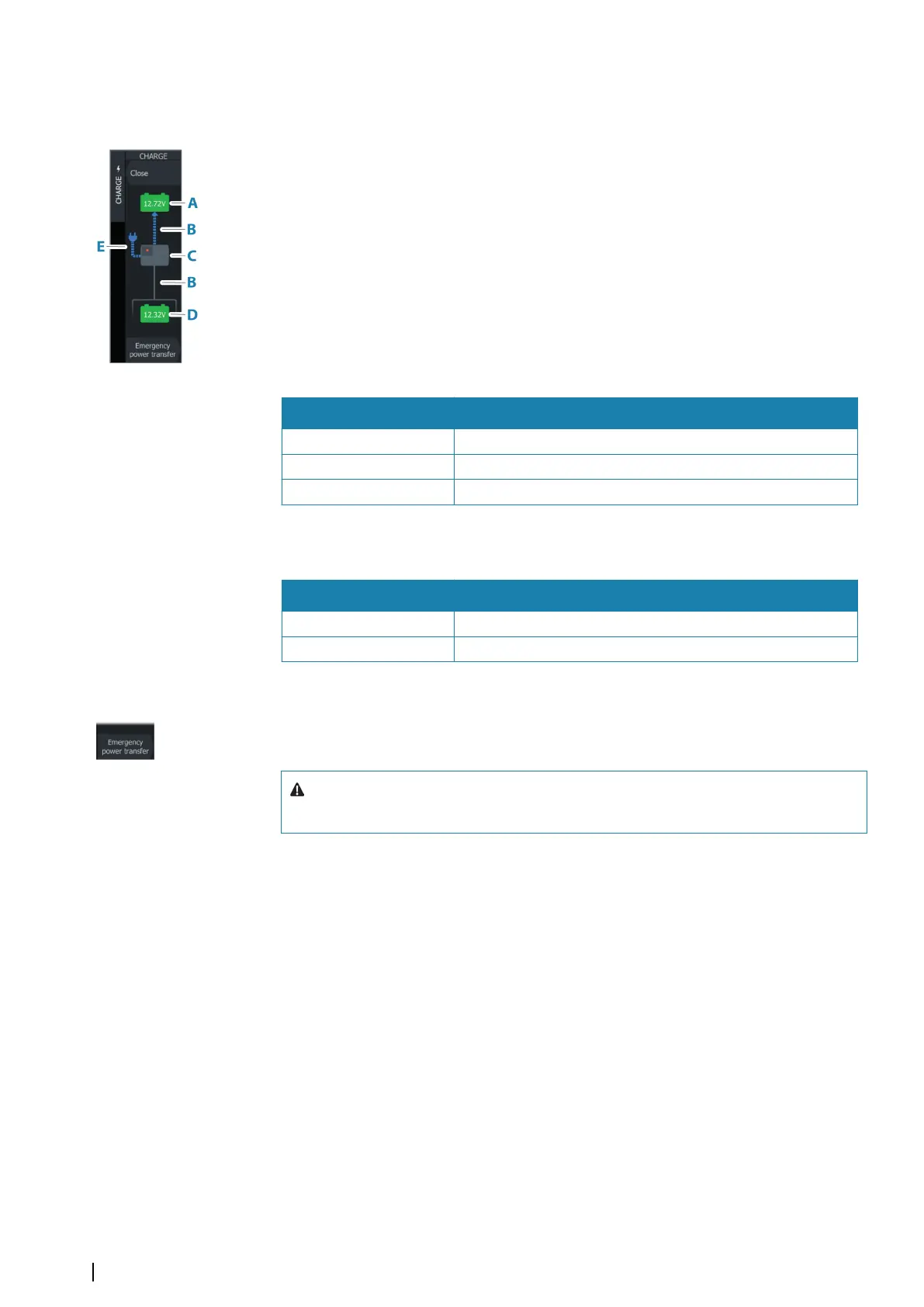

A Engine battery/batteries
B Battery connections
C Power-Pole charge module
D Auxiliary battery/batteries
E Charge module AC power source connection
Battery icons
Color Indicates
Green Good level
Yellow Marginal level
Red Failing/critical level
Battery and AC source connections
Color Indicates
Blue Current flow
Grey No current flow
Emergency power transfer
If your engine battery is low and you want to transfer power from the aux battery to the
engine battery, select this option.
Warning: Using a battery at a very low charge level can damage the
battery.
Naviop
If this device is on the same NMEA 2000 network as a Naviop Loop system, this device can be
used to operate the Naviop Loop system.
For details, refer to the documentation following the Naviop system.
144
Integration of 3 party devices| NSO evo3S MPU Operator Manual

Simrad NSO evo3S MPU Specifications

General

Video Output	2 x HDMI
Connectivity	Wi-Fi, Bluetooth
Operating System	Linux
Ethernet Ports	2
USB Ports	2
Operating Voltage	12/24V DC
Power Supply	12/24V
