To resume normal scrolling, clear the cursor.

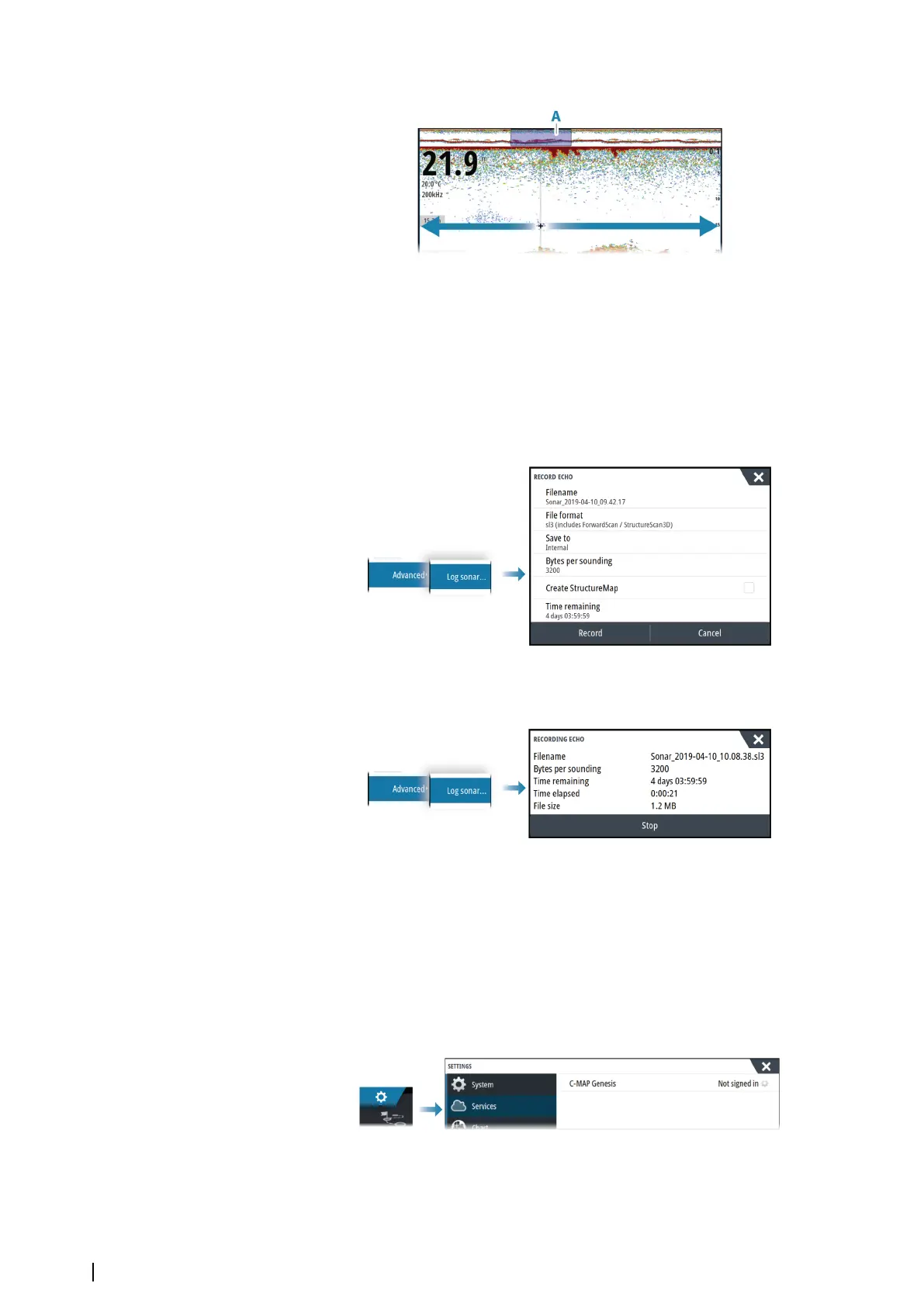

Recording log data
Start recording log data
You can start recording log data and save the file internally in the unit, or save it onto a
storage device connected to the unit.
When the data is being recorded, there is a flashing red symbol in the top left corner and a
message appears periodically at the bottom of the screen.
Specify recording settings in the recording dialog.
Stop recording log data
Use the stop logging option to stop recording log data.
Viewing recorded data
Both internally and externally stored sounder records can be reviewed when the view sonar
log option is selected in the echo settings dialog. Refer to "Echosounder settings" on page 73.
Upload sonar logs to C-MAP Genesis
To upload sonar logs to C-MAP Genesis do one of the following:
• Use the services option. Follow the prompts to sign in and transfer the log files to C-MAP
Genesis.
• Use the Storage dialog. Select the sonar logs icon and the logs you want to transfer. If you
are already signed in to C-MAP Genesis the files are transferred. If you are not signed in,
select the transfers icon and follow the prompts to sign in and transfer the log files to C-
66
Echosounder | NSO evo3S MPU Operator Manual

Simrad NSO evo3S MPU Specifications

General

Video Output	2 x HDMI
Connectivity	Wi-Fi, Bluetooth
Operating System	Linux
Ethernet Ports	2
USB Ports	2
Operating Voltage	12/24V DC
Power Supply	12/24V
