About the video function
The video function allows you to view videos or camera sources on your system.
Ú
Note: The video images are not shared from the Ethernet network. You can only view
the video on the unit connected to the video source.
For information about how to connect the camera, see the unit's separate installation
manual.

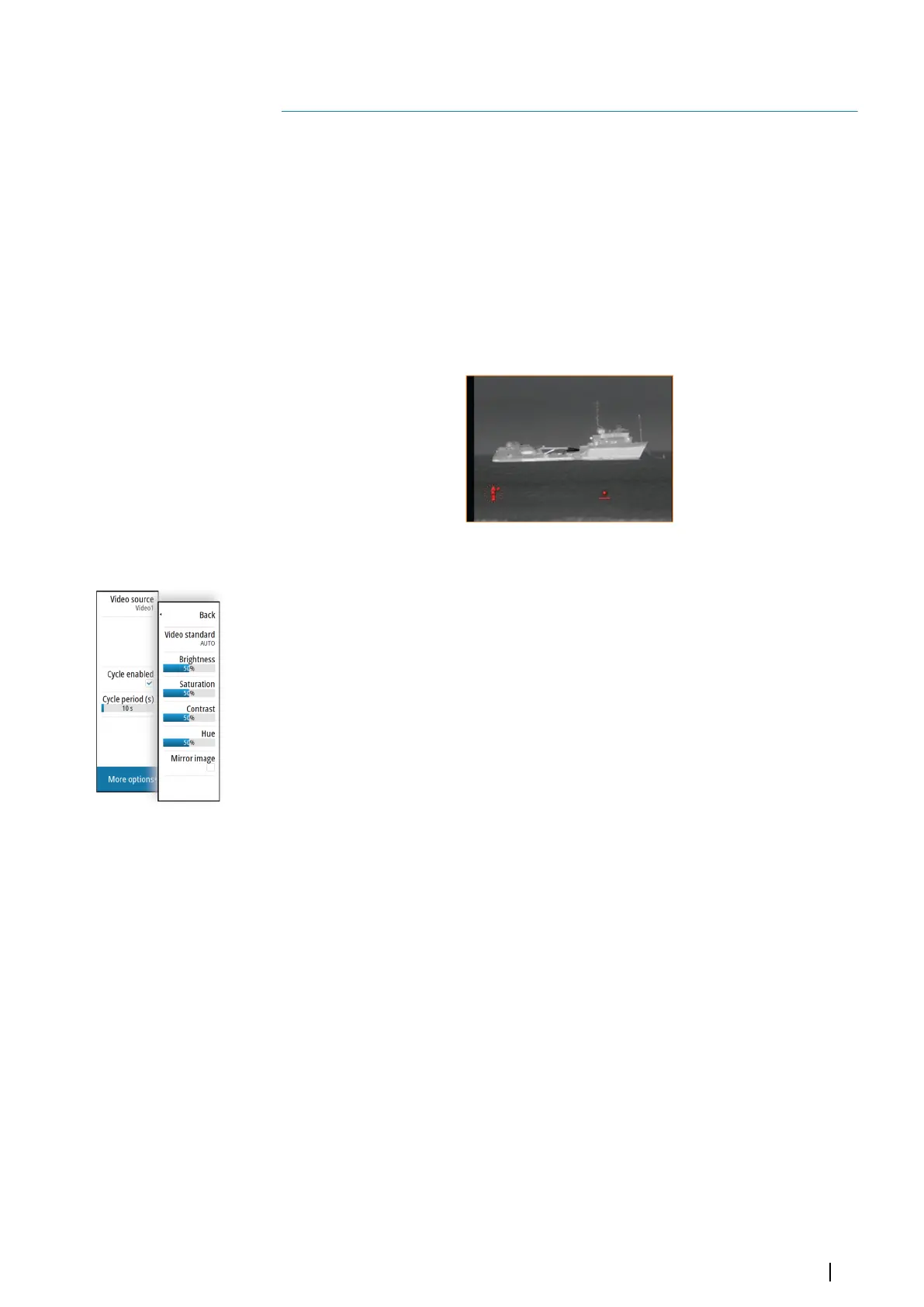

The video panel
The video image is proportionally scaled to fit into the video panel. Areas not covered by the
image are colored black.
Setting up the video panel
Video source
The unit supports two video input channels.
You can select to view one channel only, or to cycle the image between available video
cameras.
Video standard
Select the video format for the connected video source.
Adjusting the video image
You can optimize the video display by adjusting the video image settings. The settings are
adjusted individually for each video source.
Mirroring the video image
Video input can be set to display a mirrored image. This setting can be helpful for rear-facing
cameras used to back-down the vessel.
20
Video| NSO evo3S MPU Operator Manual
117
