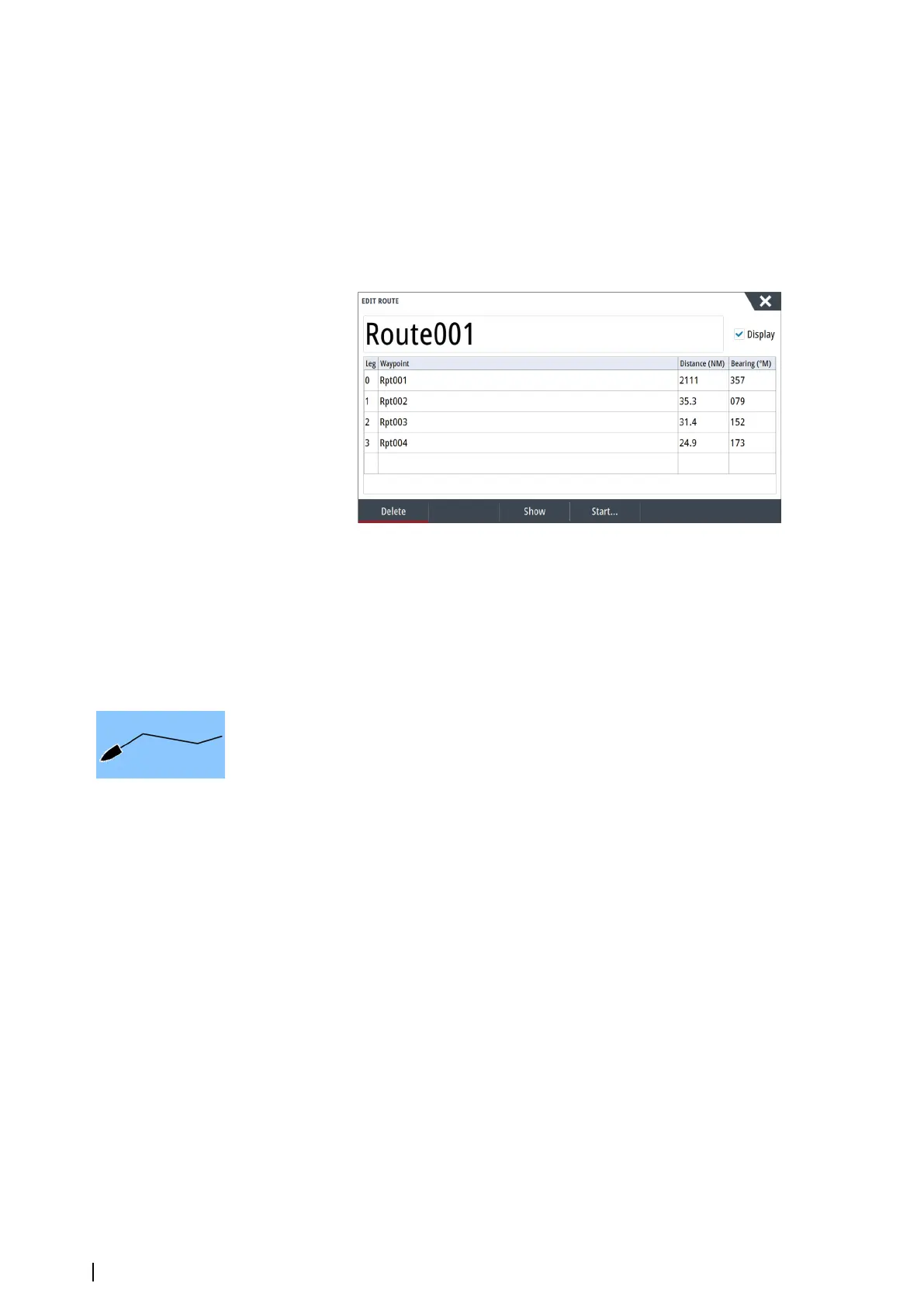

The edit route dialog
You can manage routes and routepoints, and change route properties using the Edit Route
dialog. This dialog is activated by selecting an active route's pop-up or from the menu by
selecting the route then the details option.
The dialog can also be accessed by using the Waypoints tool on the Home page and then
selecting a route in the dialog.
Select a routepoint in the edit dialog to insert a new routepoint after it or remove the
routepoint.
Select the display option to show the route on the chart.
Delete a route
You can delete a route by selecting the Delete menu option when the route is activated.
You can also delete routes from the edit routes dialog. Refer to "The edit route dialog" on page 40.
Tracks
About tracks
Tracks are a graphical presentation of the historical path of the vessel. They allow for
retracing where your boat has travelled. Tracks can be converted to routes from the edit
dialog.
From the factory, the system is set to automatically track and draw the vessel's movement on
the chart panel. The system continues to record the tracks until the length reaches the
maximum points, and then automatically begins overwriting the oldest points.
The automatic tracking function can be turned off from the Tracks dialog.
Creating a new track
You can start a new track from the Tracks dialog. The dialog is activated:
• by using the Waypoints tool on the Home page and selecting the Tracks tab
• by selecting the New track or Tracks option on the Plot dialog.
Track settings
Tracks are made up of a series of points connected by line segments whose length depends
on the frequency of the recording.
You can select to position track points based on time settings, distance, or by letting the
system position a waypoint automatically when a course change is registered.
Ú
Note: The Tracks option must also be turned on in the Tracks dialog to be visible on
panels.
Coloring tracks
To color tracks:
40
Waypoints, routes, and tracks | NSO evo3S MPU Operator Manual
