Simrad NSO evo3S MPU User Manual

A
B

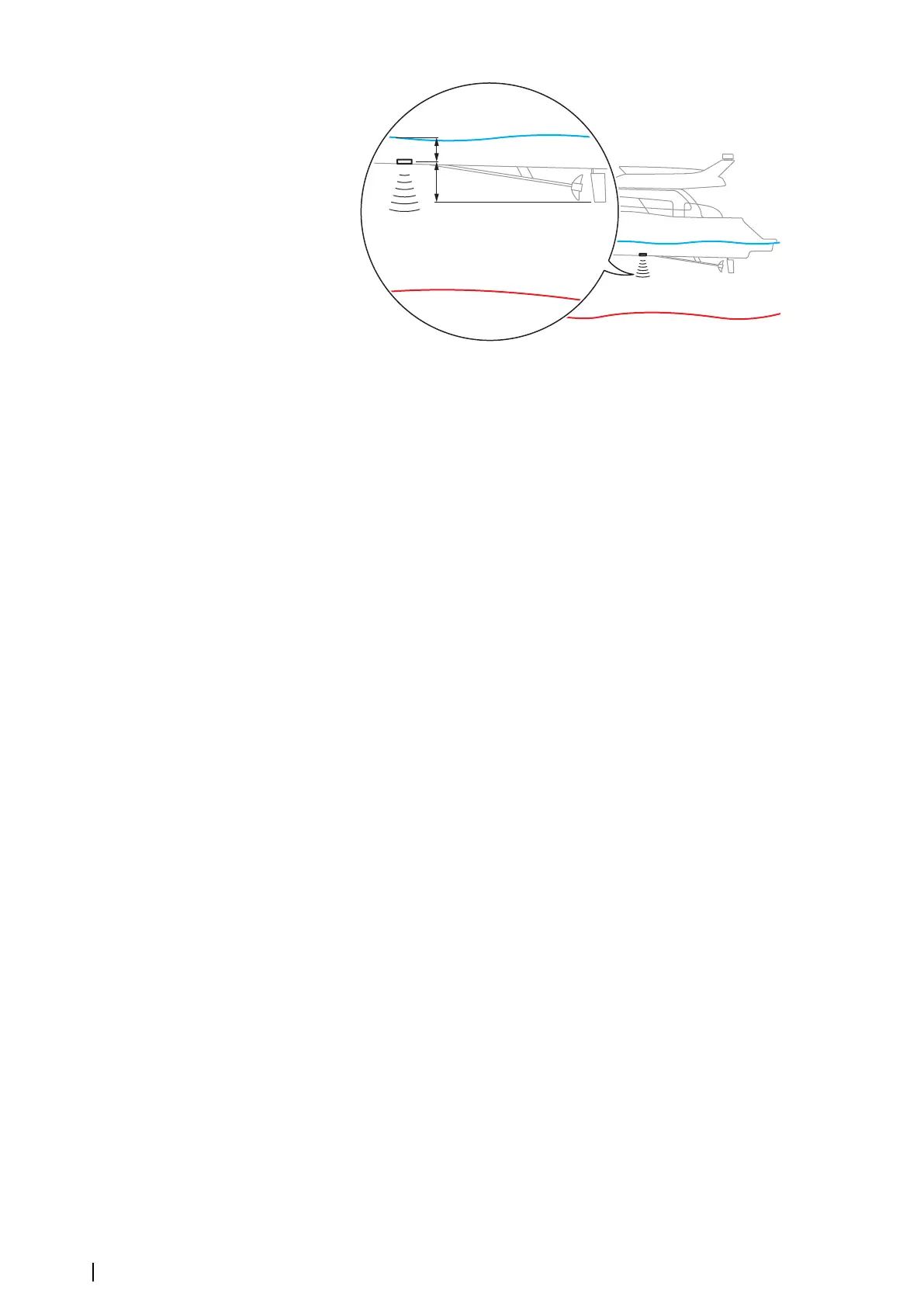

• To show the depth from the lowest point of the vessel to the bottom, set the offset equal
to the vertical distance between the transducer and the lowest part of the vessel, A
(negative value).
• To show the depth from the water surface to the bottom, set the offset equal to the
vertical distance between the transducer and the water surface, B (positive value)
• For depth below transducer, set the offset to 0.
Installation
Used for installation and setup. See the separate Installation manual.
Restore echosounder defaults
Restore echosounder settings to the factory supplied defaults.
ForwardScan installation
Available when the ForwardScan feature is connected.
For setup information, refer to "ForwardScan installation settings" on page 89.
74
Echosounder | NSO evo3S MPU Operator Manual

Simrad NSO evo3S MPU Specifications

General

Video Output	2 x HDMI
Connectivity	Wi-Fi, Bluetooth
Operating System	Linux
Ethernet Ports	2
USB Ports	2
Operating Voltage	12/24V DC
Power Supply	12/24V
