Video | NSO-II Operator Manual
¼ Note: You can take over camera control from any NSO-II unit connected to the Ethernet
network.
Panning and tilting the camera
When the connection to the FLIR camera is established, pan and tilt panel buttons appear
on the video panel. The left and right arrows control the camera’s pan, while the up and
down arrows tilt the camera.
Press one of the arrow buttons on the panel to control the camera. The camera will move
as long as you press the button.
Zooming the video image
You zoom the video image by using the OP40 IN/OUT keys. or the pinch/spread
movement on the screen.
There are two dierent zoom options available, depending on selected FLIR camera
source option. Refer “The FLIR camera source options” below.
Digital zoom
Only available when the camera is in Infrared mode.
In this mode the zoom is represented in levels (0, 2 and 4 times zoom). Each press on one
of the OP40 IN/OUT keys will increment or decrement the zoom level.
Optical zoom
Available in daylight mode.
In this mode the camera will zoom as long as you press the OP40 IN/OUT keys.

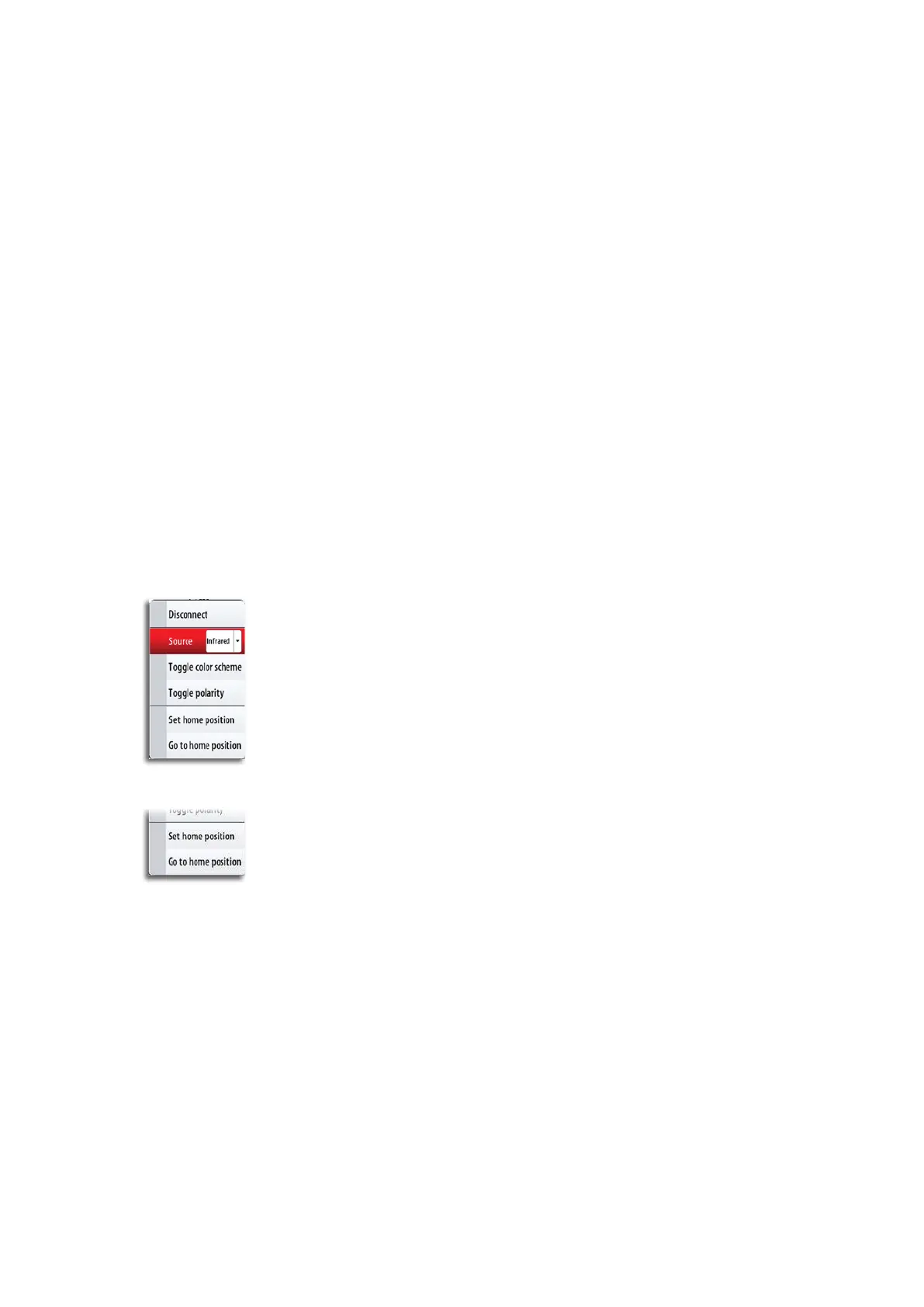

The FLIR camera source options
The FLIR camera includes both daylight and infrared video sources.
When the infrared source is selected, the following options are available:
Toggle color scheme Cycles through FLIR’s video output color scheme. Each
of these schemes maps a dierent color to a dierent
temperature
Toggle polarity Inverts the color scheme.
For example, instead of: White = Hot and Black = Cold, it will
become Black = Hot and White = Cold
The camera’s home position
You can set the current pan and tilt position as the camera’s home position.
You can later quickly return to this camera position.
