SKF FL15 - Page 62

FMON10JEN 07.04.2017 Rev. 10J
61 (61)

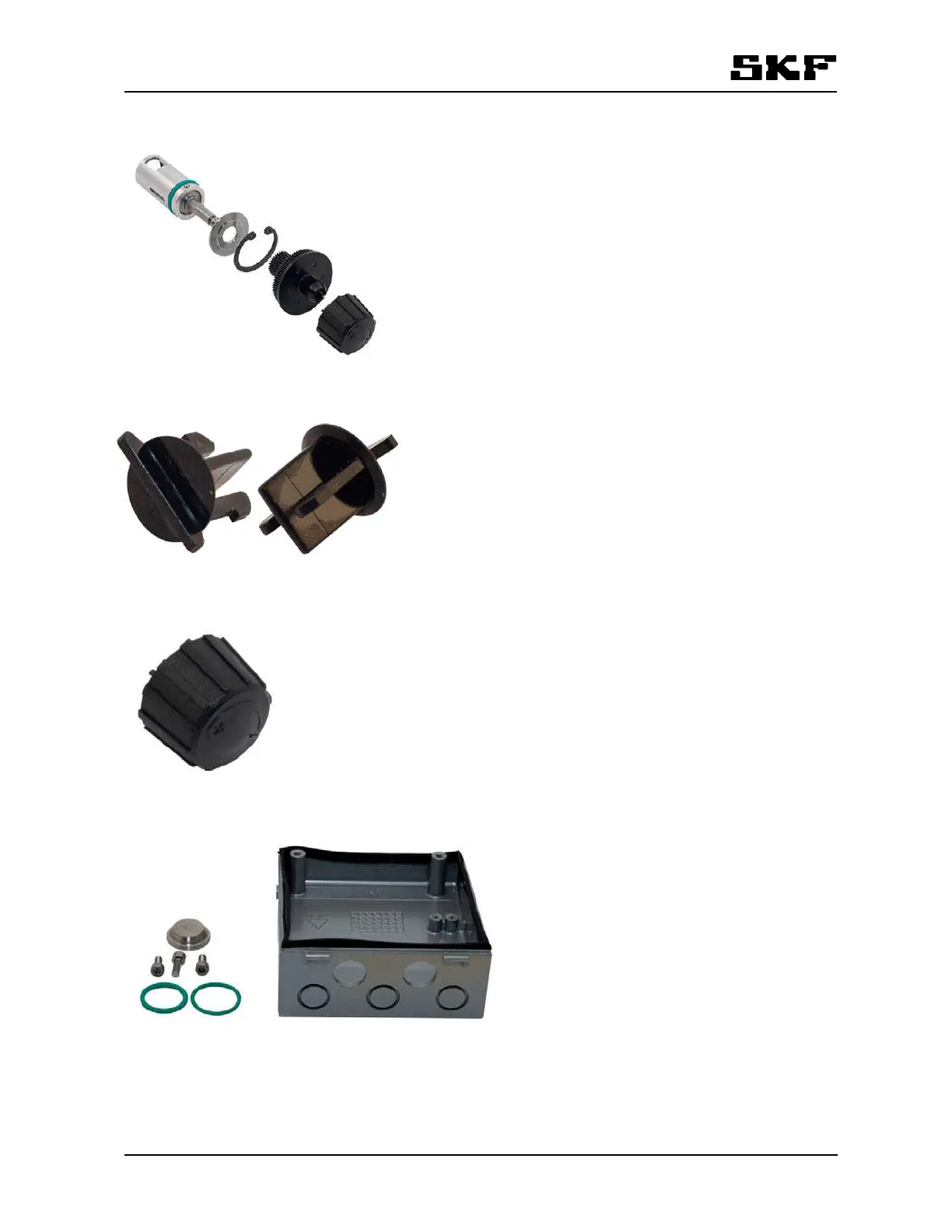

1 pc flow valve assembly
1 pc locking ring
1 pc flow valve wheel
1 pc ring
1 pc flow valve knob
Figure 30 FL50-KIT-VALVE 13120485
(2 pcs in FL100)
Figure 31 FL NON RETURN VALVE 13771880
10 pcs knobs
Figure 32 FL-KIT-KNOB 13120487
1 pc casing bottom
2 pcs O-rings
3 pcs screws
1 pc plug
1 pc seal
Figure 33 FL-KIT-BOTTOM 13120490
