Table 22 SKF Flowline monitor FL 15, parts

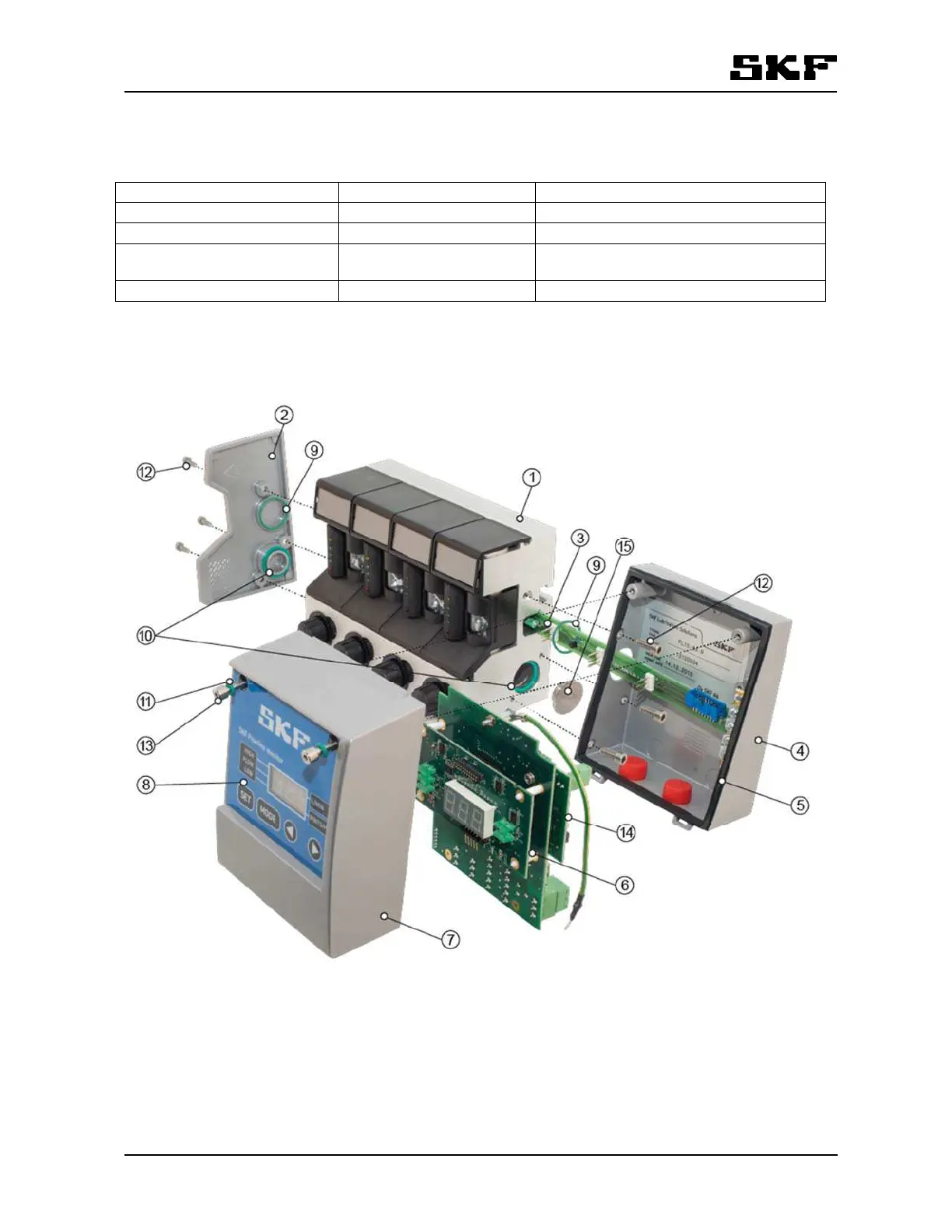

Figure 40 SKF Flowline monitor FL15, exploded view
1. Body 6. Group electronics 11. O-ring 3.3x2.4
2. End plate 7. Cover 12. Allen screw M5x12H
3. Motherboard 8. Membrane keyboard 13. Allen screw M5x35 H
4. Casing bottom plate 9. O-ring 25.3x2.4
14. CAN module, Relay-CAN module or
mA-output module card
5. Seal 10. O-ring 22.2x3 15. Plug
