Section 04 ENGINE
Subsection 09 (FUEL TANK AND THROTTLE CABLE)
04-09-2 MMR2000_124_04_09A.FM
Fuel Tank Lines
8, Check Valve
Check valve no. 8 must be installed with its black
side (stamped VAC) facing toward fuel tank.
To check proper operation of check valve, apply
vacuum to nipple of black side (stamped VAC).
There must be no air flow restriction.
With 35 kPa (5 PSI) applied to nipple of black side
(stamped VAC) the check valve should not lose
more than 2 bubbles per minute at either nipple or
at the weld joint while submersed in water.
Replace if check valve doesn’t meet above men-
tionned specifications.
Fuel Filter

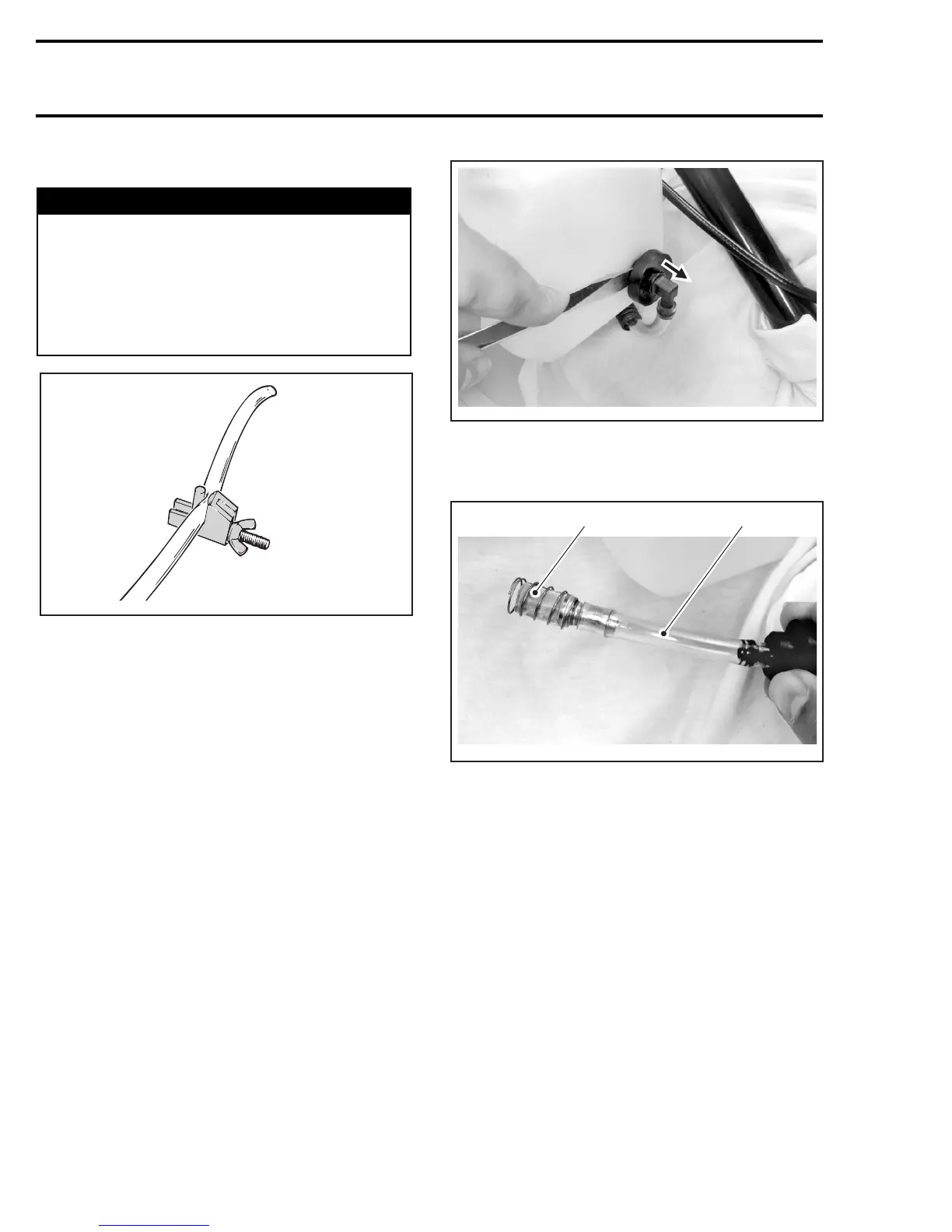

To remove fuel filter no. 1 from fuel tank no. 2,
first drain fuel tank.
Using a flat screwdriver, carefully pull out fuel filter
by removing grommet no. 3, as shown in the next
photo.
REMOVE GROMMET
Ensure that fuel filter and fuel line are clean and
not damaged, as per following photo.
1. Fuel filter
2. Fuel line
Reinstall fuel filter with grommet.
Refuel tank and ensure there are no leaks.
Fuel Line Spring Clips
Always reposition spring clips no. 4 after any re-
pair to prevent possible leaks.
WARNING
When draining a fuel tank or whenever a fuel
line is disconnected, obstruct line with a hose
pincher (P/N 295 000 076) or equivalent device.
Fuel is flammable and explosive under certain
conditions. Ensure work area is well ventilat-
ed. Do not smoke or allow open flames or
sparks in the vicinity.
A01B2JD
A31I02A
A31I03A
1 2
