Section 04 ENGINE
Subsection 09 (FUEL TANK AND THROTTLE CABLE)
MMR2000_124_04_09A.FM 04-09-3
Throttle Cable Circlip at Handlebar
Put silicone grease (P/N 413 701 700) around ca-
ble barrel of throttle cable no. 7. Locate circlip

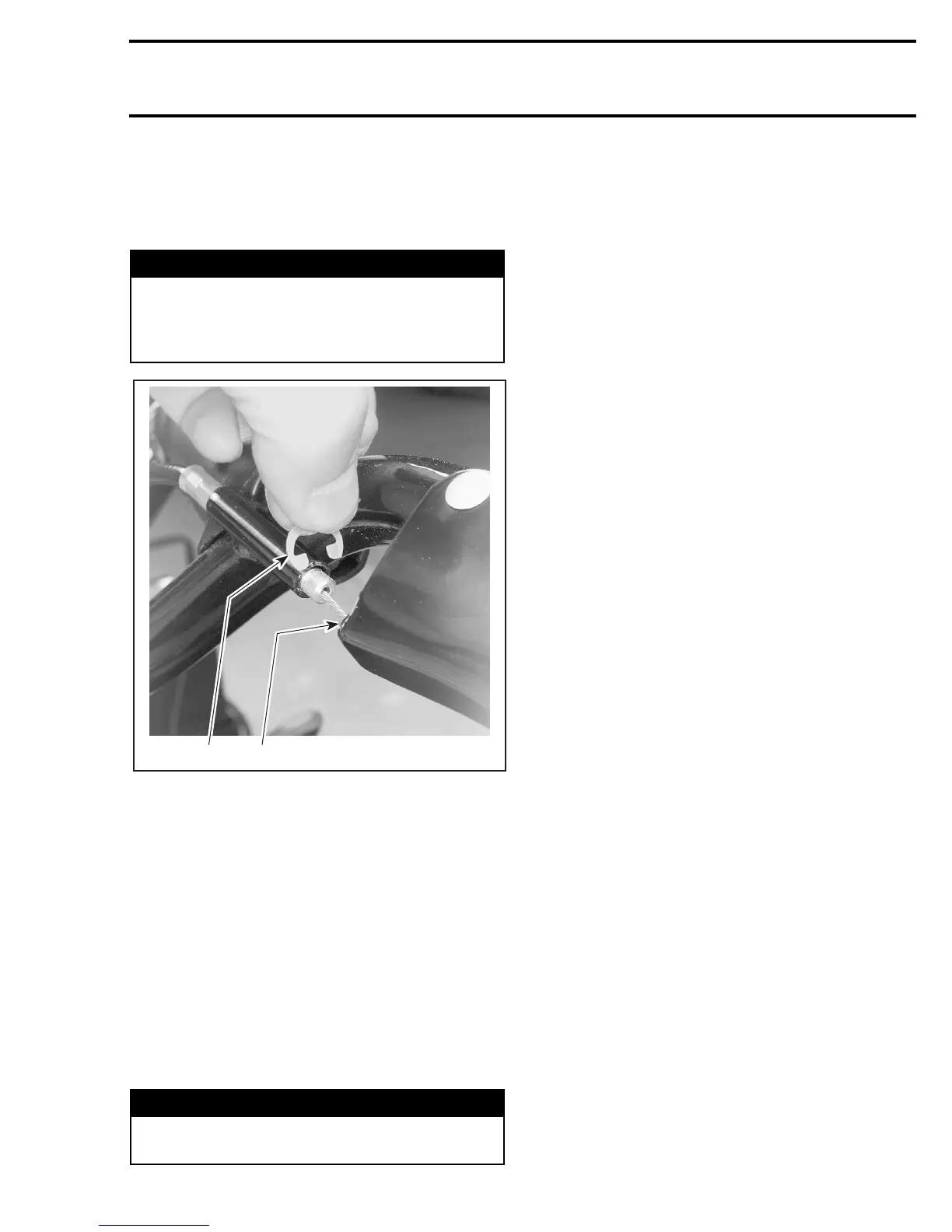

no. 5 as per following photo.
TYPICAL — BRAKE SIDE SHOWN, IDENTICAL FOR THROTTLE
SIDE
1. Circlip
2. Detach throttle cable from throttle lever
Throttle Cable Routing
CAUTION: Check that throttle cable is routed
away from sharp edges, hot or vibrating parts.
When turning steering while engine is running,
idle speed must not vary.
Throttle Cable Adjustment
Loosen throttle cable at carburetor.
While holding handlebar throttle lever and carbu-
retor lever at full throttle, tighten throttle cable to
this position.
WARNING
If this procedure is disregarded, throttle lever
no. 6 might be half-open at normally closed
position and the engine will speed up when
starting.
WARNING
Ensure that engine is not running when ad-
justing throttle cable.
