THREADLOCKER

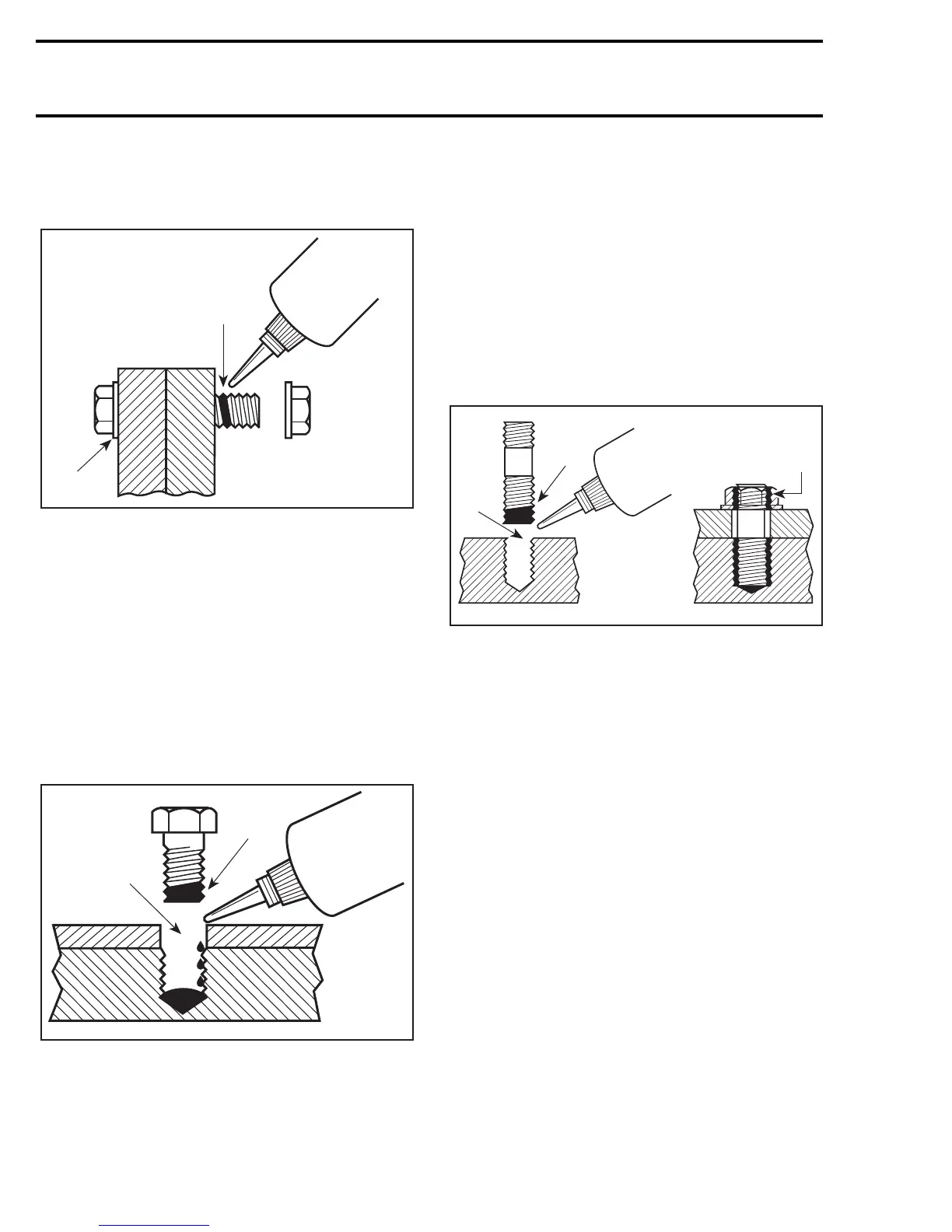

Uncovered Holes (bolts and nuts)
1. Apply here
2. Do not apply
1. Clean threads (bolt and nut) with solvent.
2. Apply Loctite Primer N (P/N 293 800 041) on
threads and allow to dry.
3. Choose proper strength Loctite threadlocker.
4. Fit bolt in the hole.
5. Apply a few drops of threadlocker at proposed
tightened nut engagement area.
6. Position nut and tighten as required.
Blind Holes
1. On threads
2. On threads and at the bottom of hole
1. Clean threads (bolt and hole) with solvent.
2. Apply Loctite Primer N (P/N 293 800 041) on
threads (bolt and nut) and allow to dry for 30
seconds.
3. Choose proper strength Loctite threadlocker.
4. Apply several drops along the threaded hole and
at the bottom of the hole.
5. Apply several drops on bolt threads.
6. Tighten as required.
Blind Holes
1. On threads
2. On threads and in the hole
3. Onto nut threads
1. Clean threads (bolt and hole) with solvent.
2. Apply Loctite Primer N (P/N 293 800 041) on
threads and allow to dry.
3. Put several drops of proper strength Loctite
threadlocker on female threads and in hole.
4. Apply several drops of proper strength Loctite
on stud threads.
5. Install stud.
6. Install cover, etc.
7. Apply drops of proper strength Loctite on un-
covered threads.
8. Tighten nuts as required.
A00A3LA
1
2
A00A3MA
1
2
A00A3NA
2
1
3
