SMA CLUSTER CONTROLLER User Manual

4.2 Overview of the User Interface
4.2.1 Structure
A
B
C
D
E

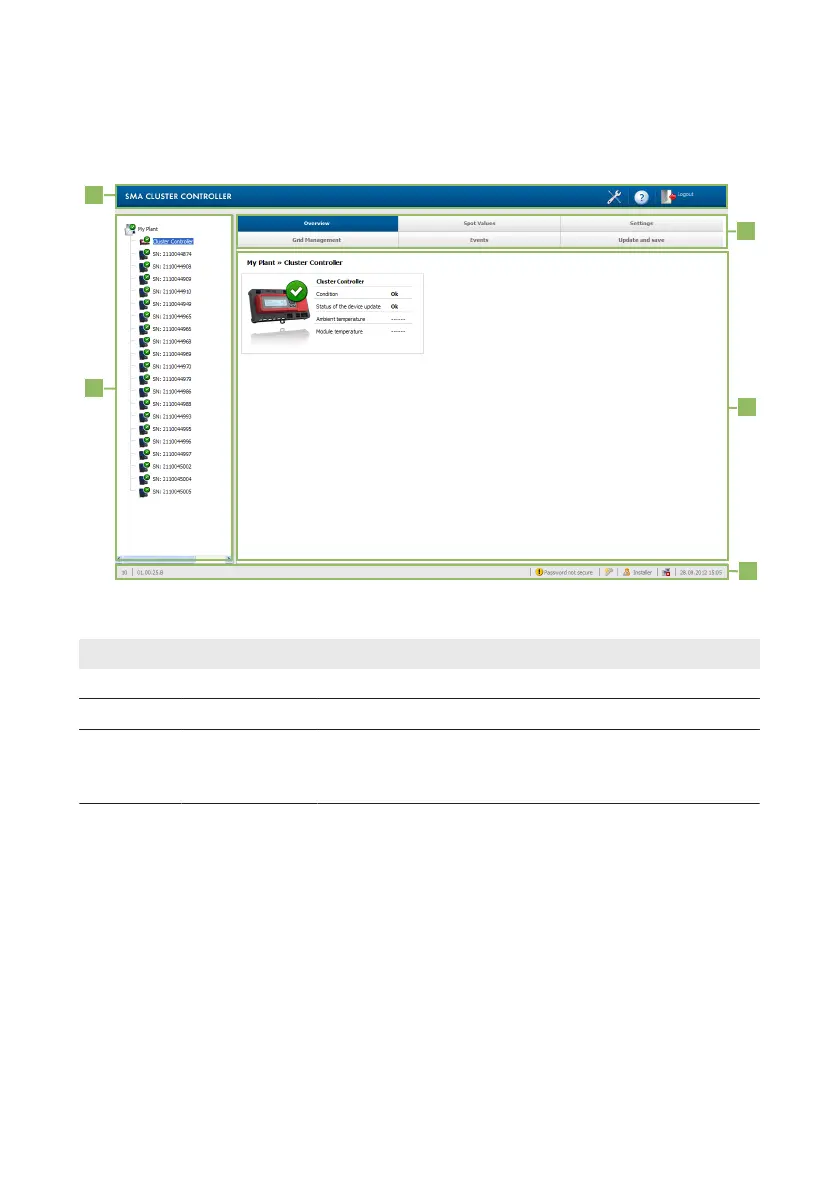

Figure 6: User interface of the ClusterController (example)
Position Designation Explanation
A Toolbar Provides access to the main functions of the ClusterController
B System tree Presents all devices in the system in a tree structure
C Device menu Provides various device information and configuration options
for the selected devices in the system tree (B) via individual
menus
