5 Mounting
SMA Solar Technology AG
Operating manual EVC22-3AC-20-BE-en-10 35

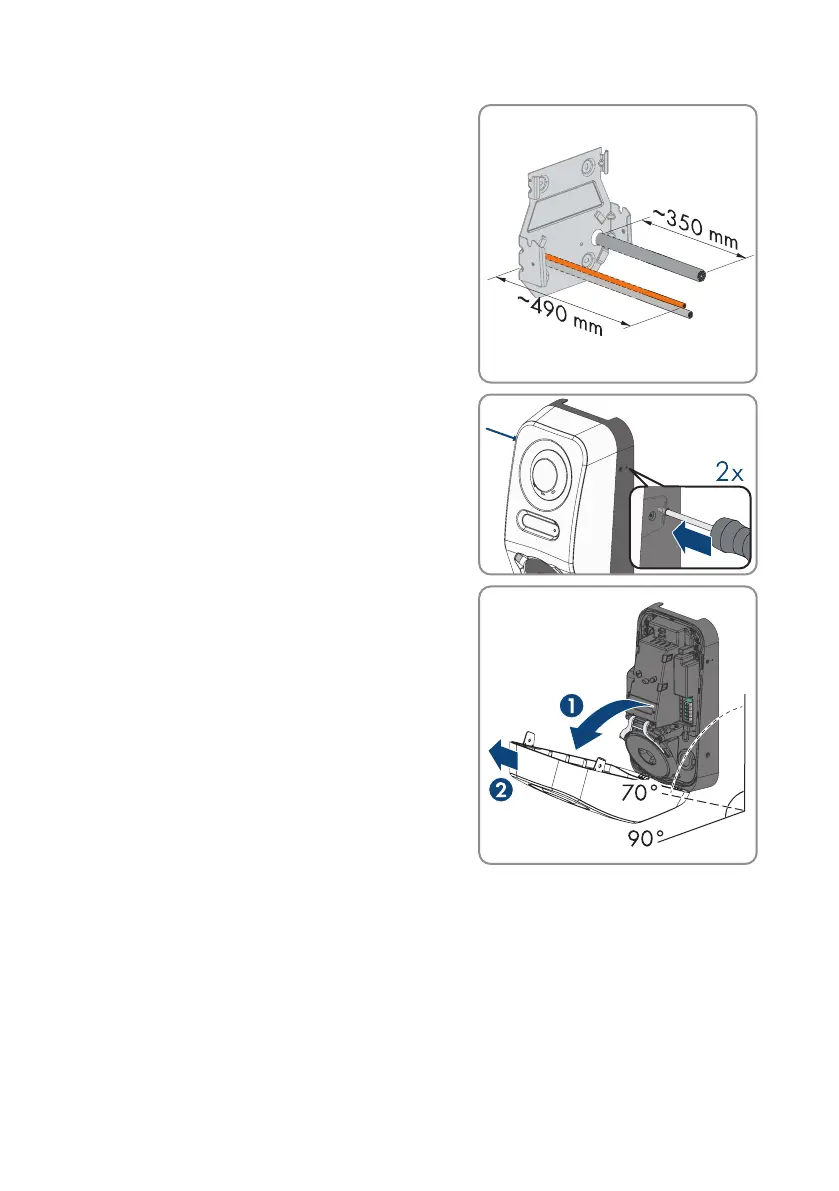

10. Cut the AC cable to 350 mm and the
communication cable to about 490 mm.
11. Release the locking tabs at the top of the cover of
the enclosure with a suitable tool (<Ø 5mm) .
12. Tilt the cover forward to an angle of about 70° and
then carefully pull upwards to remove it.
