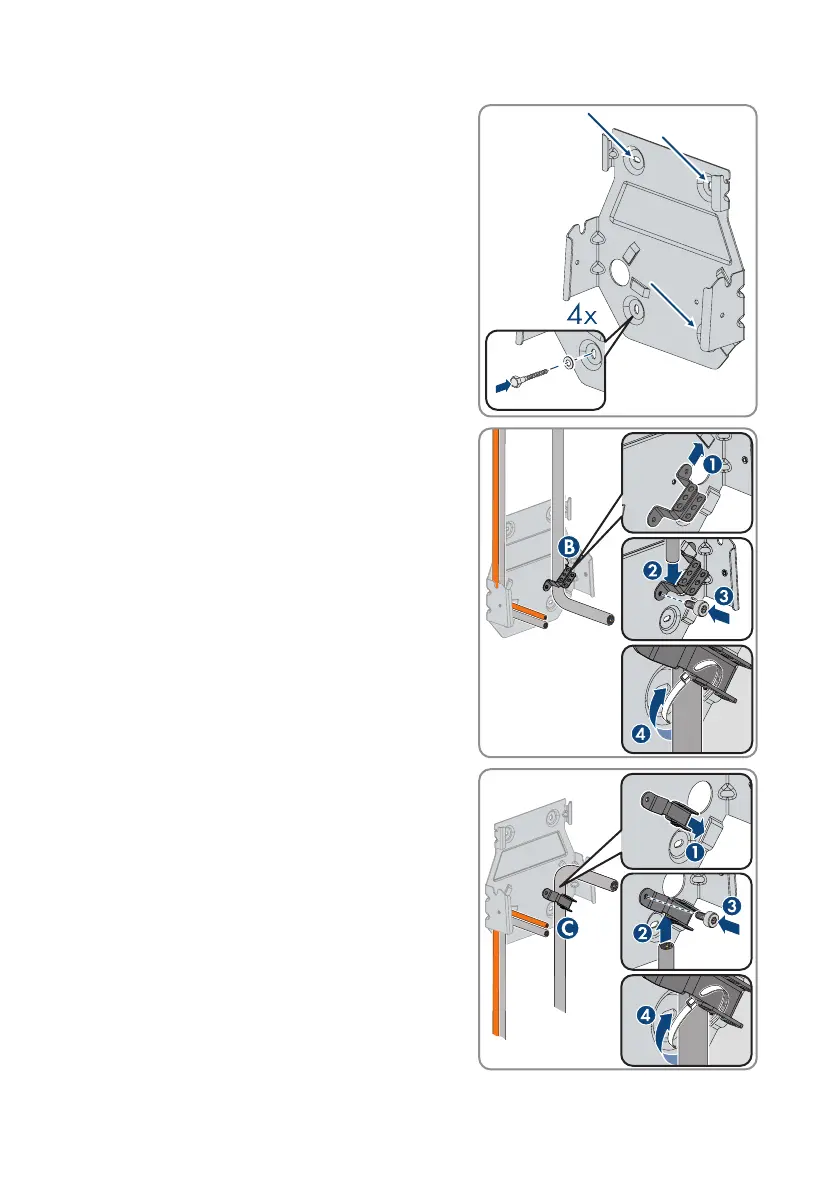

7. Secure the wall mounting bracket horizontally using
screws and washers.
8. For option B, run the AC connection cable through
the provided strain relief from above. Secure the
strain relief using the included screw (M5 x 8) (T25,
3.5 Nm torque) and then attach the AC connection
cable to the strain relief with a suitable cable tie.
9. For option C, run the AC connection cable through
the provided strain relief from below. Secure the
strain relief using the included screw (M5 x 8) (T25,
3.5 Nm torque) and then attach the AC connection
cable to the strain relief with a suitable cable tie.
