7 Commissioning
SMA Solar Technology AG
Operating manualEVC22-3AC-20-BE-en-1062
☐ All cables must be correctly connected.
☐ The enclosure lid must be mounted.
Procedure:

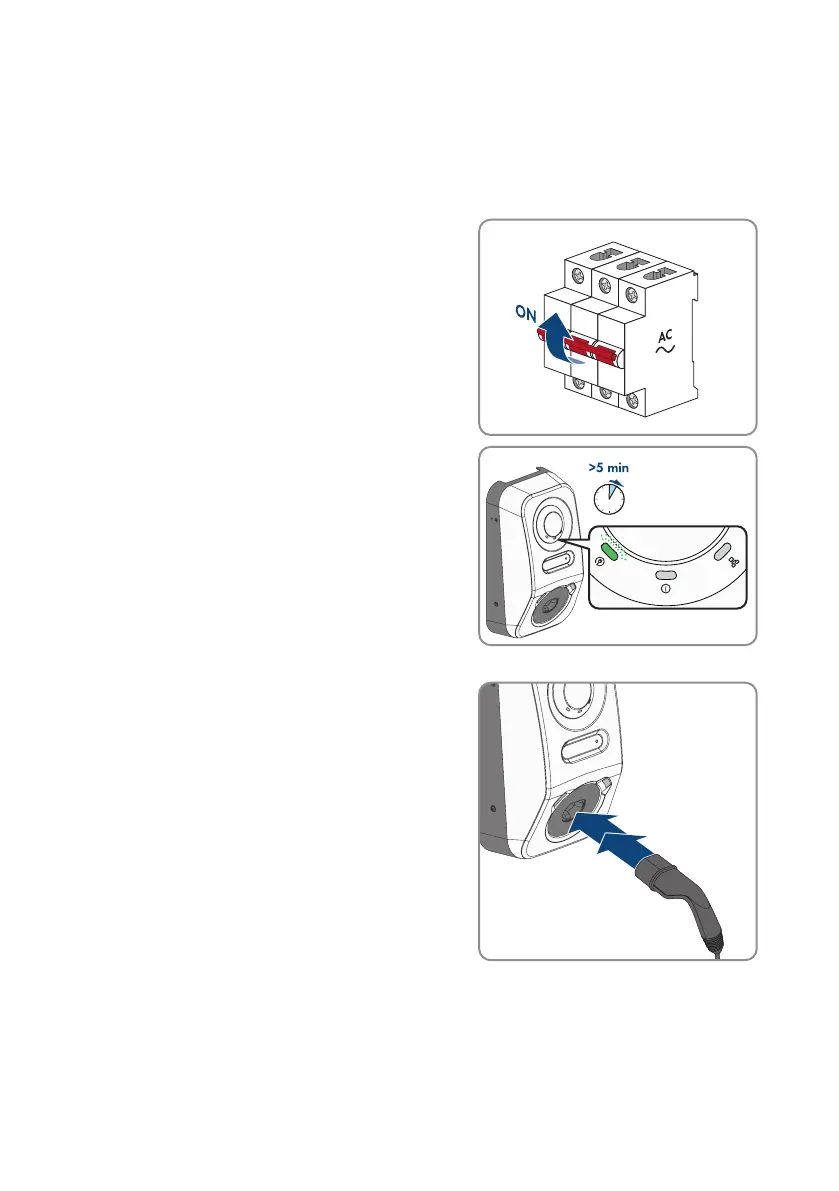

1. If necessary, switch on the supply of the connected signal sources.
2. Switch on the AC circuit breaker.
3. Wait until the product is ready for operation. The
procedure takes approx. 5 minutes.
☑ The LED is glowing green.
4. Insert a type 2 charging cable into the terminal
provided on the product. The mechanical protection
against contact results in a two-step process for
inserting into the charging port. The charging cable
must overcome two resistance points when inserted
so that it is in the correct position. The integrated
locking mechanism ensures that the charging cable
cannot be pulled out during the charging process
and that current flows only when the vehicle is
correctly connected to the charging station.
