- 39 -

No.EX※※-OMW0011-B

6.3. Process data for valves

The SI Unit occupies 2 or 4 bytes of output data for valves. The counting of valve coils starts at the

SI Unit from left to right.

Byte

Output data

16 Valves

32 Valves

0 Valve coils 0-7 Valve coils 0-7

Valve coils 8-15

Valve coils 16-23

3 Valve coils 24-31

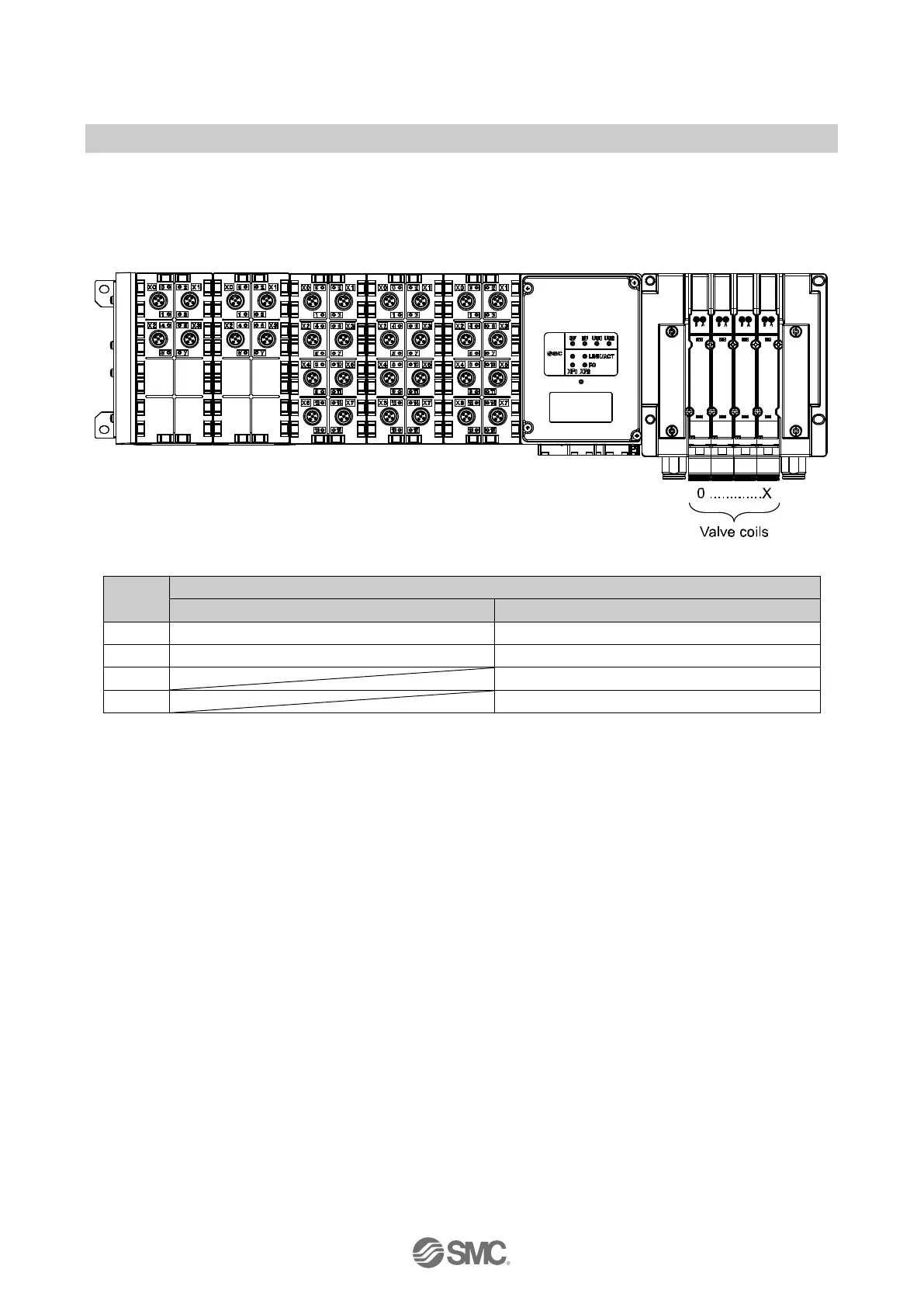

Fig. 6-3 The process data for valves
