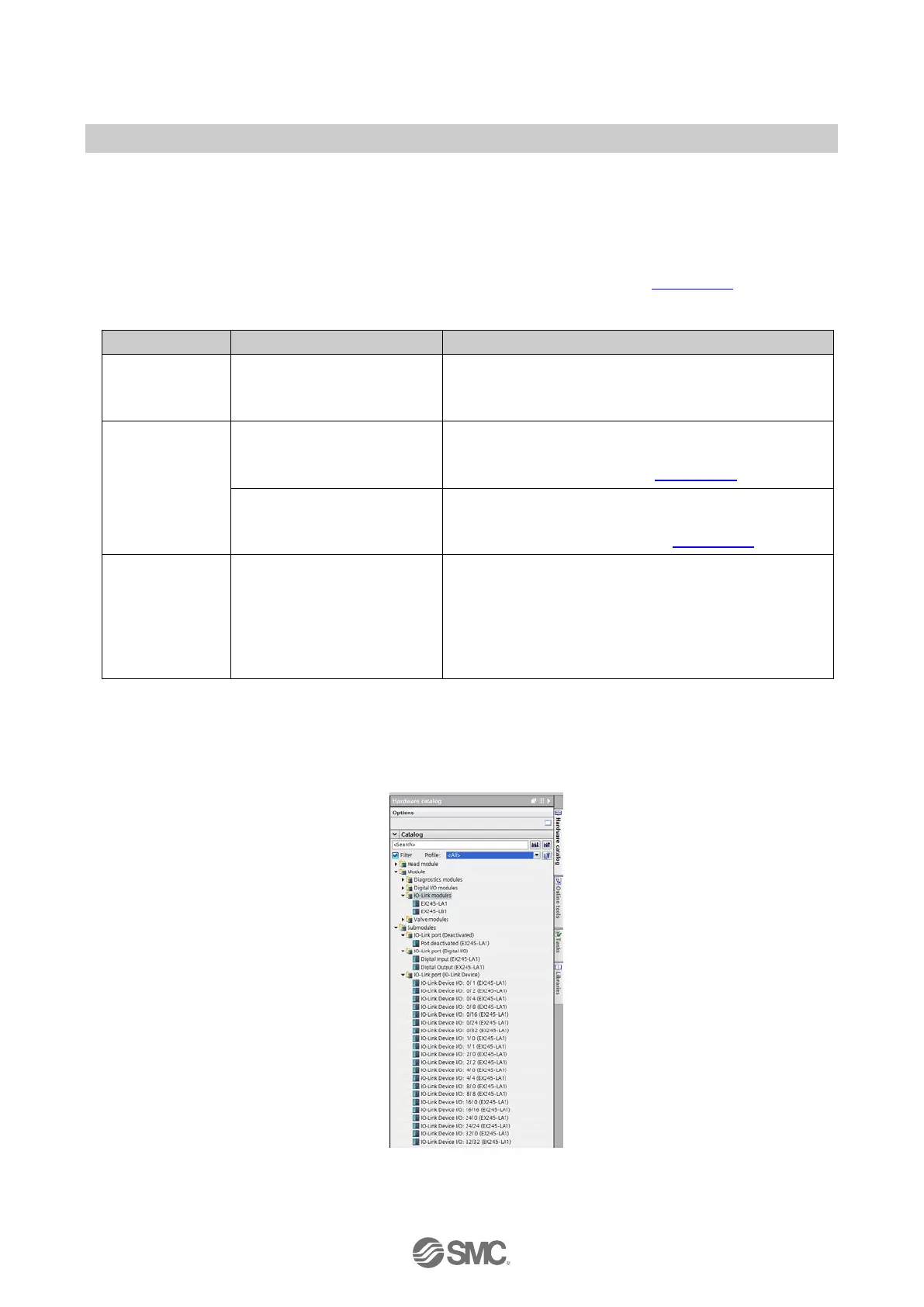

9.6. Sub-modules
The EX245-LA1 / LB1 has the sub-modules below. They can be set to slot number 2
nd
to 5
th
on
IO-Link module.
For the EX245-LA1, The digital input on pin 2 (I/Q) is available regardless of the configuration of the
sub-module. Its process data is allocated to the Standard IO slot. Refer to Section 9.4
.
Table. 9-6 Sub-modules for the IO-Link port
Listed name
Sub-module name
∗
Description
IO-Link port
(Deactivated)
Port deactivated
Disable the pin 4 (C/Q) of configured IO-Link port.
Set this sub-module to all IO-Link port that does not
connect to IO-Link device (set by default).
IO-Link port
(Digital I/O)
Digital input
The pin No.4 (C/Q) of the configured IO-Link port
works as a digital input. Its process data is allocated to
the Standard IO slot. Refer to Section 9.4
.
Digital output
The pin No.4 (C/Q) of the configured IO-Link port
works as a digital output. Its process data is allocated
to the Standard IO slot. Refer to Section 9.4
.
IO-Link port
(IO-Link device)
IO Link Device I/O:
"input bytes" / "output bytes"
The configured IO-Link port is capable of
communicating with IO-Link devices. Select the
appropriate module according to the I/O size of the
IO-Link device.
Input and output byte size are allocated in
combinations of 0, 1, 2, 4, 8, 16, 24 and 32.
∗: The full title for each sub-module incorporates the IO-Link module type (EX245-LA1 or EX245-LB1)
as part of its name
e.g. Port deactivated (EX245-LA1), Port deactivated (EX245-LB1) etc.
When selecting a sub-module please choose the one which corresponds to the IO-Link module type in
use.
