- 46 -
No.EX※※-OMW0011-B
7. Digital Input Module - EX245-DX1
7.1. Parts and description

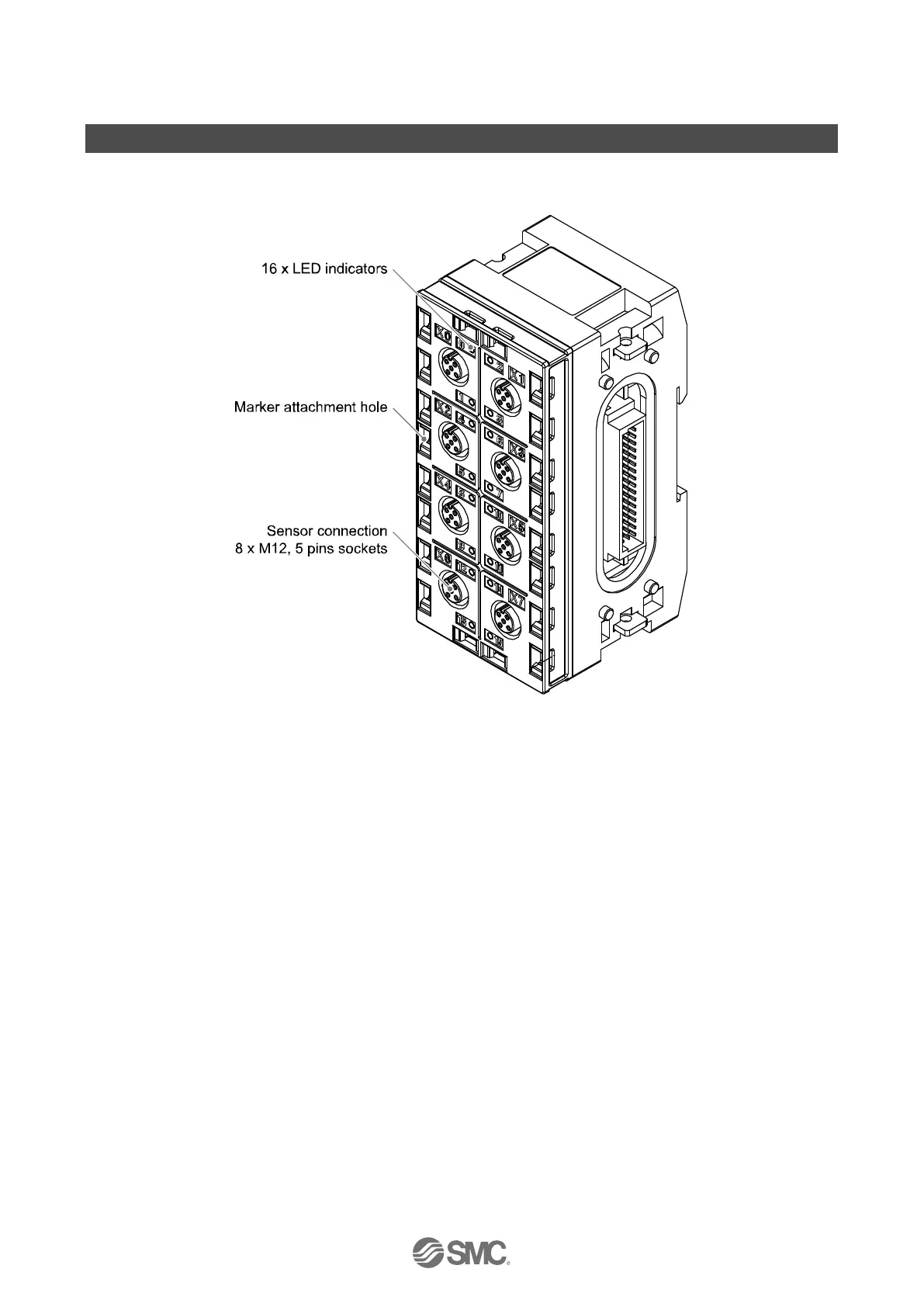

Fig. 7-1 Allocation of parts on the EX245-DX1
