11.2. Y Connector
Y connectors can be used with the EX245-DX1 and EX245-DY1.
There are two options –
・ 2 x M12 to M12
・ 2 x M8 to M12
Model No.
： PCA-1557785
(Y branch Connector (2 x M12 to M12))

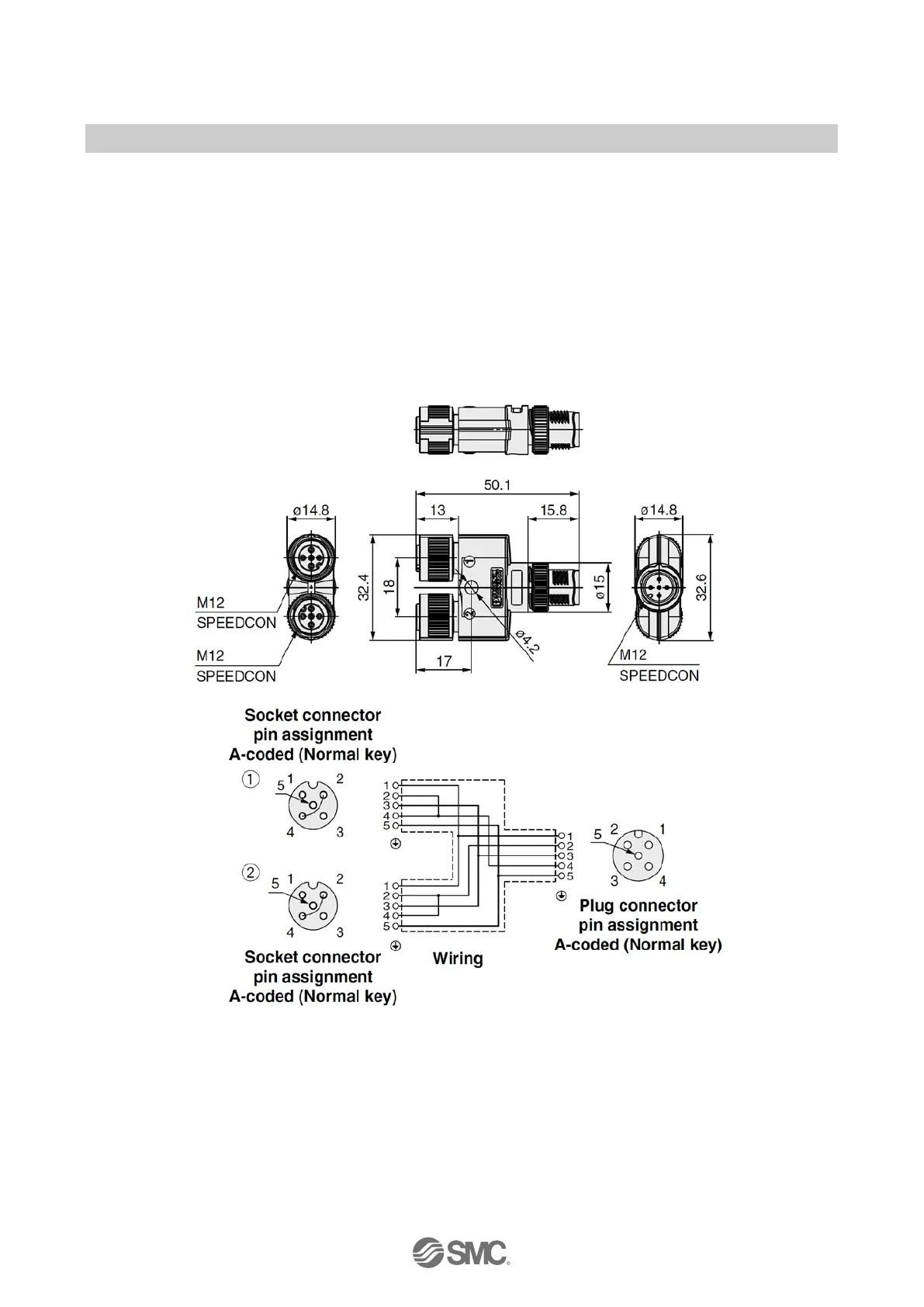

Fig. 11-2 PCA-1557785
