12. Dimensions
12.1. The Modules Manifold

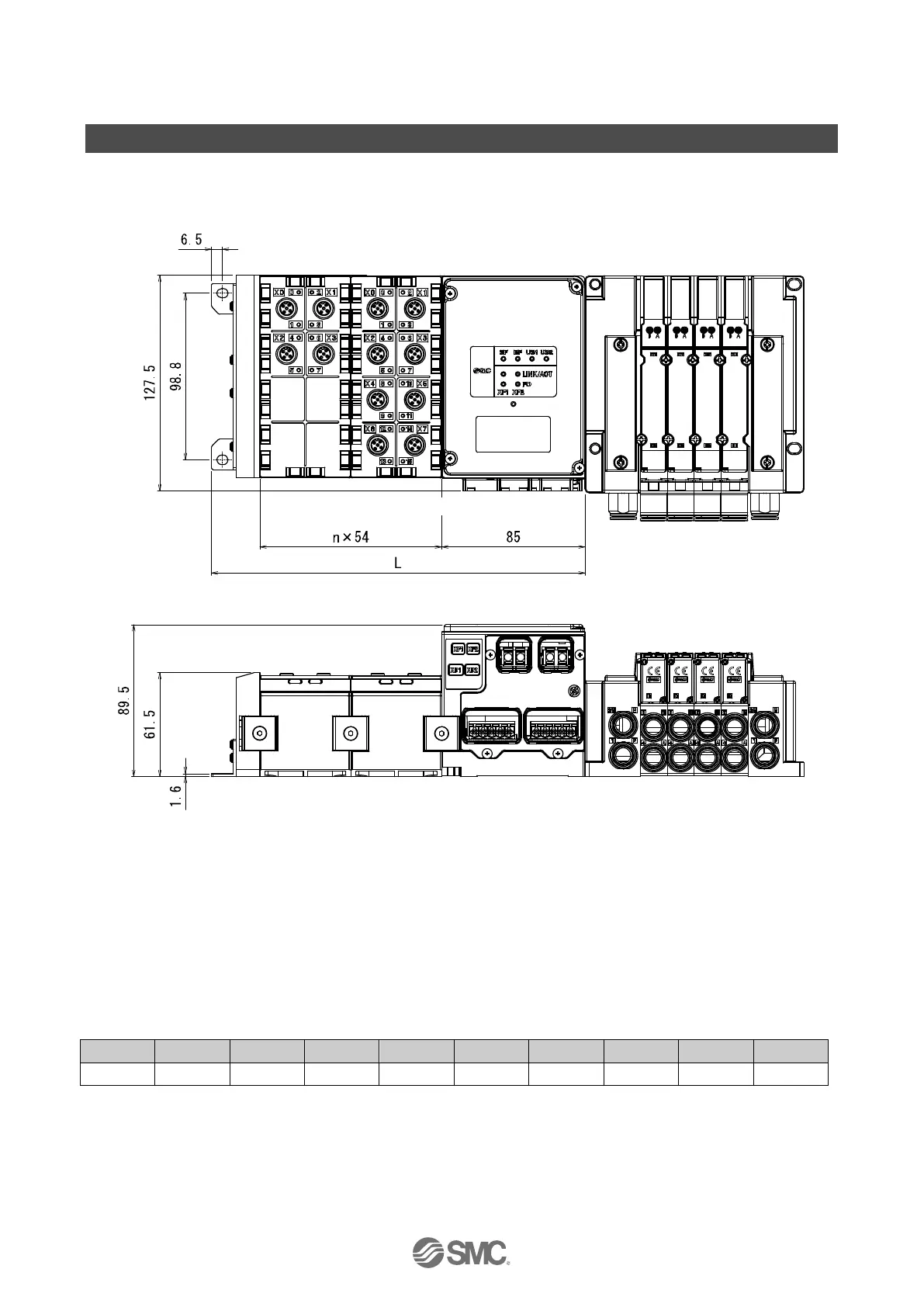

Fig. 12-1 Dimensions of the Modules manifold
NOTE
・ Fig. 12-1 shows when the EX245-EA2-1 is used.
The following table shows the length of the Modules manifold.
For the valve manifold side, refer to the instruction manual for the appropriate valve series.
Table. 12-1 Length the EX245-SPN1A/SPN2A/SPN3A manifold
n
0
1
2
3
4
5
6
7
8
L 113.6 167.6 221.6 275.6 329.6 383.6 437.6 491.6 545.6
Formulas: L = 54n + 113.6 (max. 8 modules) (Dimensions in mm)
