Model No.: EX245-AWP
(10 pieces for Push Pull connectors of power connection)
The EX245-AWP can be used with the EX245-SPN1A/EX245-SPN2A.
Mount the seal cap in the unused connector.
IP65 rating is maintained by using the seal cap properly.

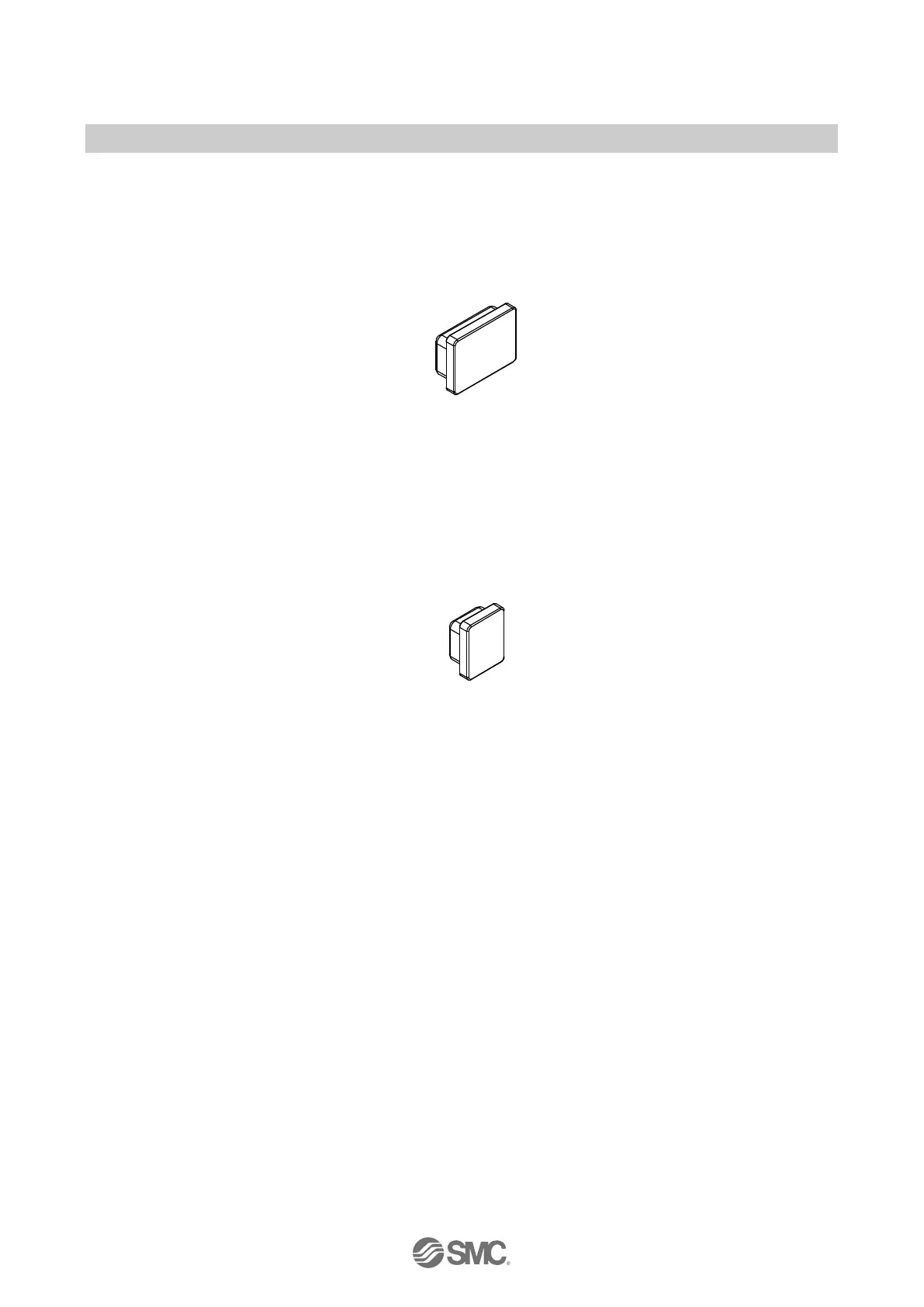

Fig. 11-5 EX245-AWP
Model No.: EX245-AWC
(10 pieces for Push Pull connectors of PROFINET connection)
The EX245-AWC can be used with the EX245-SPN1A/EX245-SPN2A.
Mount the seal cap in the unused connector.
IP65 rating is maintained by using the seal cap properly.
Fig. 11-6 EX245-AWC
NOTE
・ In case of the EX245-SPN1A or EX245-SPN2A, the Seal caps is fitted to all bus & power
connector when shipped from factory.
