5.20 Option [Drain pan set]
5.20.1 Option [Drain pan set]
This function is available for customer who purchased drain pan set (part no.:
HRS-WL001). For the installation of the drain pan, refer to the Operation
Manual of the “Drain pan set”.
Water leakage can be detected by this function. “AL33 Leakage” is
generated when water leakage is detected.
It is possible to set the operation when the alarm is generated. Refer to the
“5.15 Alarm customize function” for details.
Drain pan
Water leakage
detector

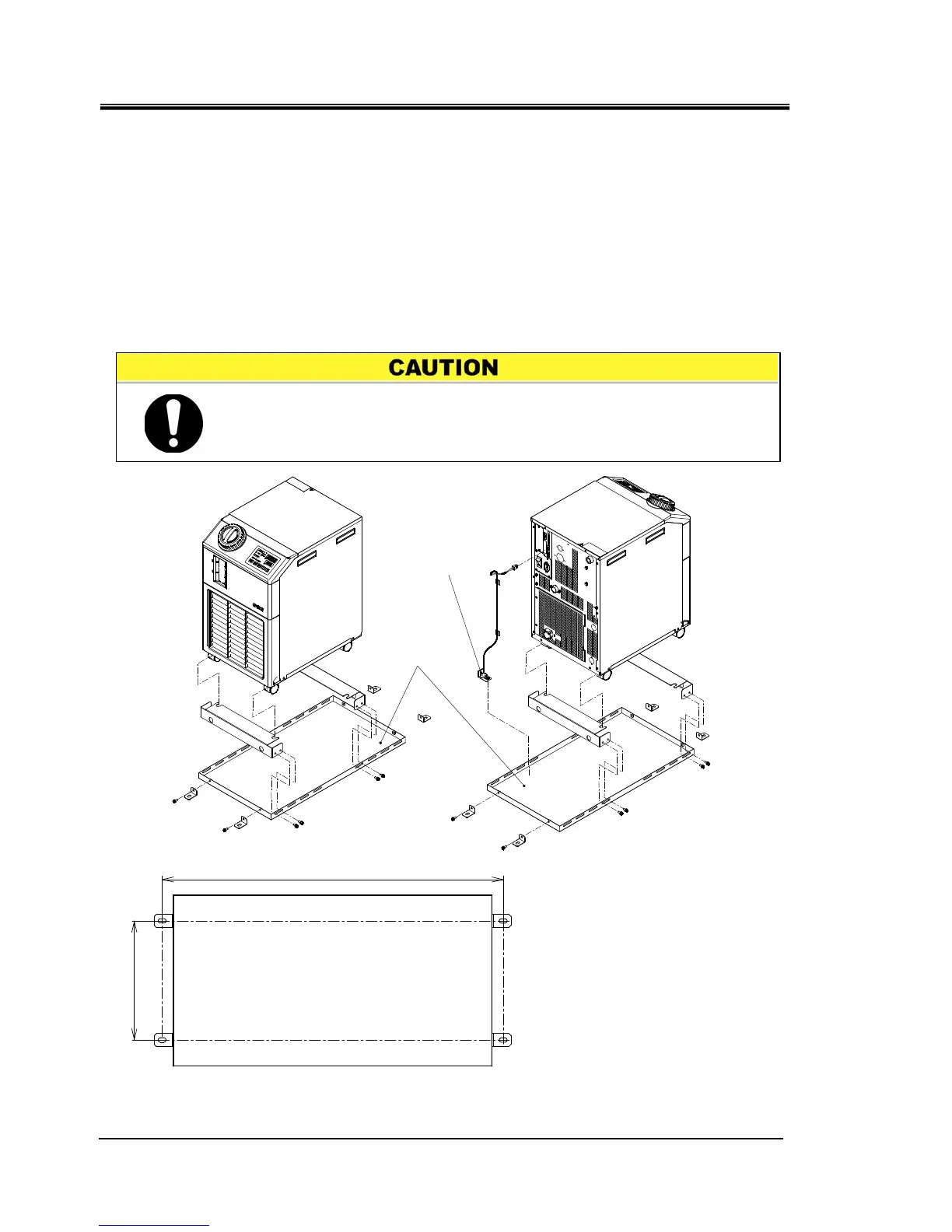

Fig 5.20-1 Option [Drain pan set]
Alarm “AL33 Fluid leakage” be generated if this setting is valid with the
water leakage detector not being connected. Make this setting valid
after installin
g
the drain
p
an set
p
ro
p
erl
y
.
Use four M8 foundation bolts to fix
the drain pan to the floor or the
mounting frame.
∗ M8 foundation bolts should be
prepared by the customer.
