8.4 Cooling capacity HRS Series
8-8
8.4.6 Option G [High temperature type]
1) HRS012-A∗-20-G

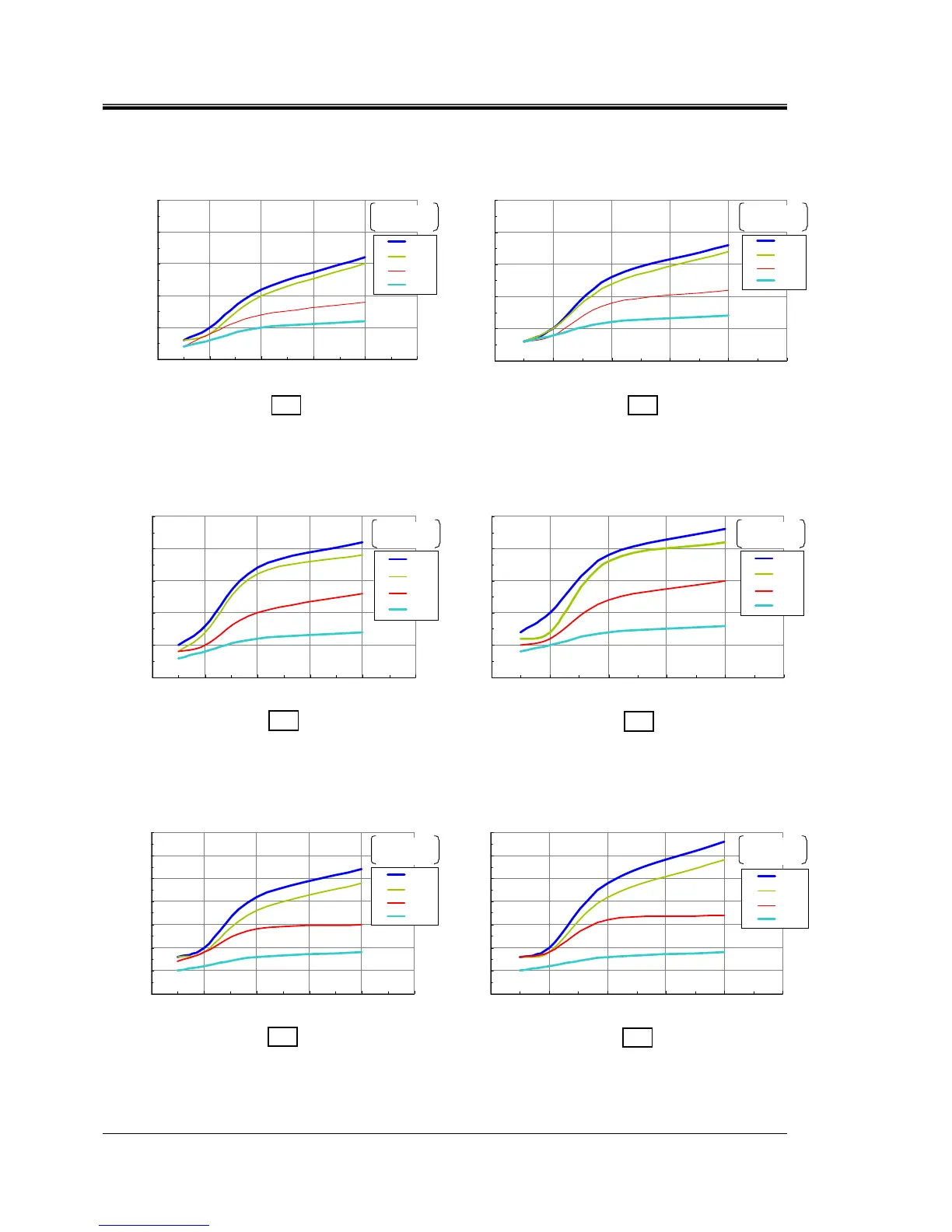

Fig. 8-9 Cooling capacity (HRS012-A
∗-20-G)
2) HRS018-A∗-20-G
Fig. 8-10 Cooling capacity (HRS018-A
∗-20-G)
3) HRS024-A∗-20-G
Fig. 8-11 Cooling capacity (HRS024-A
∗-20-G)
60Hz
0
500
1000
1500
2000
2500
01020304050
Circulating fluid temperature [℃]
Cooling capacity[W]
25℃
32℃
40℃
45℃
50Hz
0
500
1000
1500
2000
2500
0 1020304050
Circulating fluid temperature [℃]
Cooling capacity[W]
25℃
32℃
40℃
45℃
Ambient
temperature
Ambient
temperature
50Hz
0
500
1000
1500
2000
2500
01020304050
Circulating fluid temperature [℃]
Cooling capacity[W]
25℃
32℃
40℃
45℃
60Hz
0
500
1000
1500
2000
2500
0 1020304050
Circulating fluid temperature [℃]
Cooling capacity[W]
25℃
32℃
40℃
45℃
Ambient
temperature
Ambient
temperature
∗ Cooling capacity is reduced by 300W if option T, or MT are used together.
∗ Cooling capacity is reduced by 300W if option T, or MT are used together.
50Hz
0
500
1000
1500
2000
2500
3000
3500
01020304050
Circulating fluid temperature [℃]
Cooling capacity[W]
25℃
32℃
40℃
45℃
60Hz
0
500
1000
1500
2000
2500
3000
3500
0 1020304050
Circulating fluid temperature [℃]
Cooling capacity[W]
25℃
32℃
40℃
45℃
Ambient
temperature
Ambient
temperature
∗ Cooling capacity is reduced by 300W if option T, or MT are used together.
