8.6 Pump capacity HRS Series
8-10
8.6 Pump capacity
8.6.1 HRS012-∗∗-10-(BJM), HRS018-∗∗-10-(BJM)
0.0
0.1
0.2
0.3
0102030
Circulating fluid flow [L/min]
Circulating fluid pressure [Mpa]
10
20
Outlet
：
60Hz
Outlet
：
50Hz
Return port
Available area
(Min. necessary flow
：
5L/min)
Pump head [m]

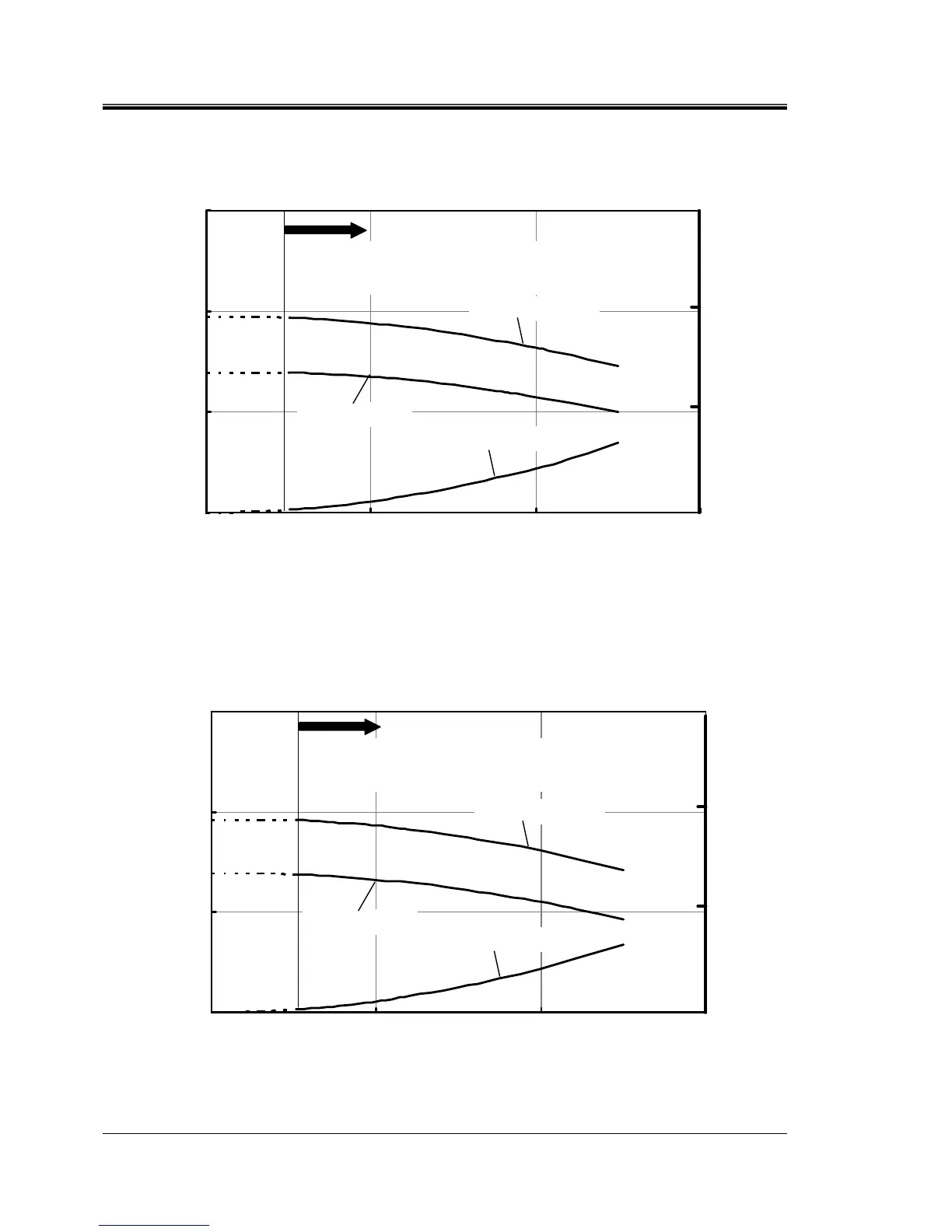

Fig. 8-14 Pump capacity(HRS012-∗∗-10-(BJM), HRS018-∗∗-10-(BJM))
8.6.2 HRS012-∗∗-20-(BGJM), HRS018-∗∗-20-(BGJM),
HRS024-∗∗-20-(BGJM)
0.0
0.1
0.2
0.3
0102030
Circulating fluid flow [L/min]
Circulating fluid pressure [Mpa]
10
20
Outlet
：
60Hz
Outlet
：
50Hz
Return port
Available area
(Min. necessary flow
：
5L/min)
Pump head [m]
Fig. 8-15 Pump capacity(HRS012-∗∗-20-(BGJM), HRS018-∗∗-20-(BGJM), HRS024-∗∗-20-(BGJM))
