HRX-OM-M090
Chapter 5 Display and setting of various functions
5.8 Offset function HRS Series
5-22

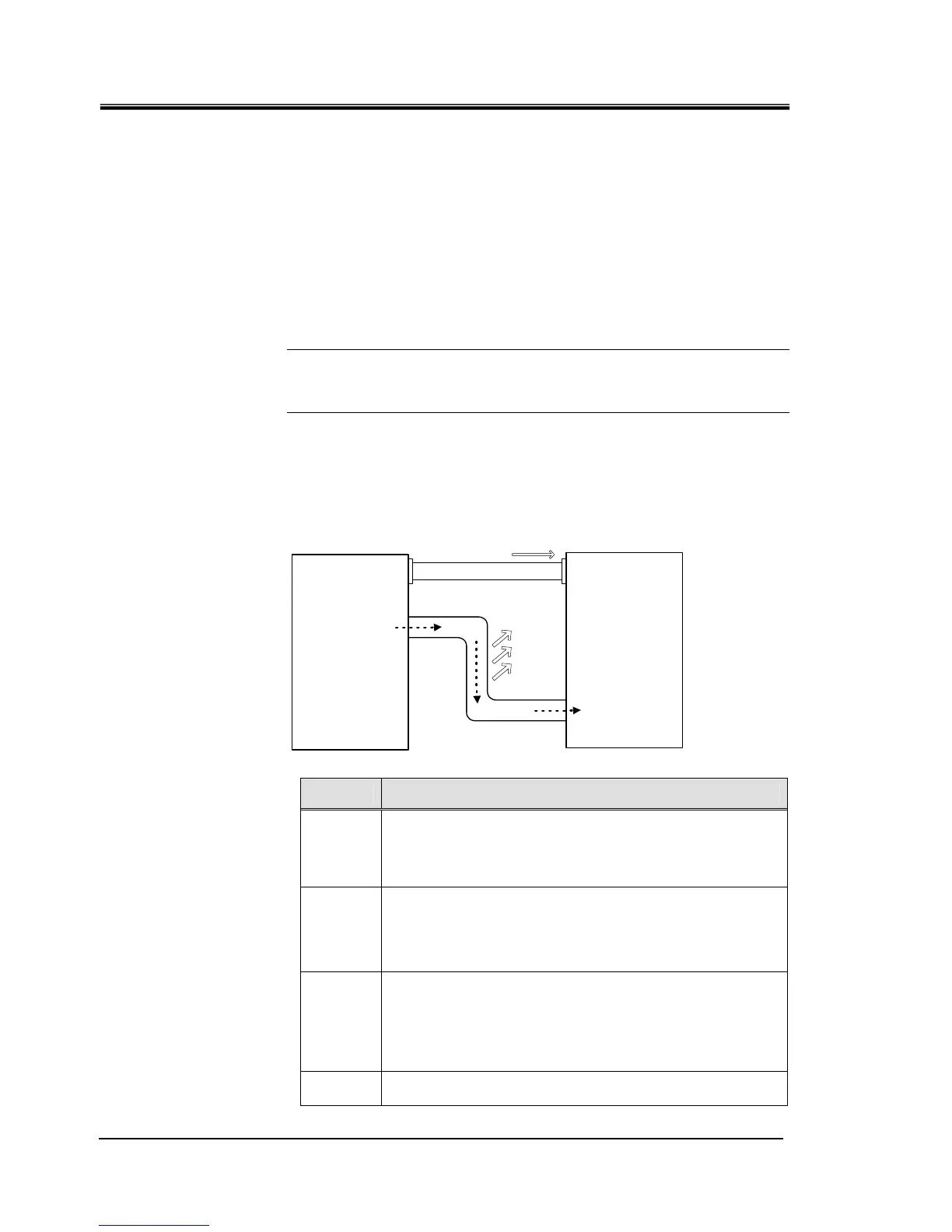

5.8 Offset function
5.8.1 Offset function
This function controls the circulating fluid discharge temperature with offset.
Temperature offset may occur between the thermo-chiller and the
customer’s device depending on the installation environment. To correct the
temperature offset, three types of offset functions are available (MODE1 to
3). The default setting of this function is “OFF”.
When communication is used
The circulating fluid temperature sent by serial communication is the
circulating fluid temperature which is displayed on the thermo-chiller (the
circulating fluid temperature after offset).
Example of temperature offset
The discharge temperature of the circulating fluid is 30
o
C, but the fluid
temperature in the customer’s device is 29
o
C because of heat radiation
during sending of the fluid.
Circulating fluid display
temperature
30
Circulating fluid set
temperature
30
This produuct Your system
Serial communication
Discharge
temperature 30
Heat
radiation
1
29℃
Circulating fluid
temperature 30
MODE Explanation
MODE1
Control the temperature so that the discharge temperature of
the circulating fluid is circulating fluid set temperature + offset
temperature. Circulating fluid temperature indicates the
circulating fluid discharge temperature.
MODE2
Control the temperature so that the discharge temperature
of the circulating fluid is circulating fluid set temperature.
Circulating fluid temperature indicates the circulating fluid
discharge temperature + offset temperature.
MODE3
Control the temperature so that the discharge temperature
of the circulating fluid is circulating fluid set temperature +
offset temperature. Circulating fluid temperature indicates
the circulating fluid discharge temperature - offset
temperature.
OFF
Control the temperature so that the discharge temperature of
the circulating fluid is circulating fluid temperature set value.
