HRS Series 8.4 Cooling capacity
8-7
8.4.3 HRS012-∗∗-20-(BJMT)

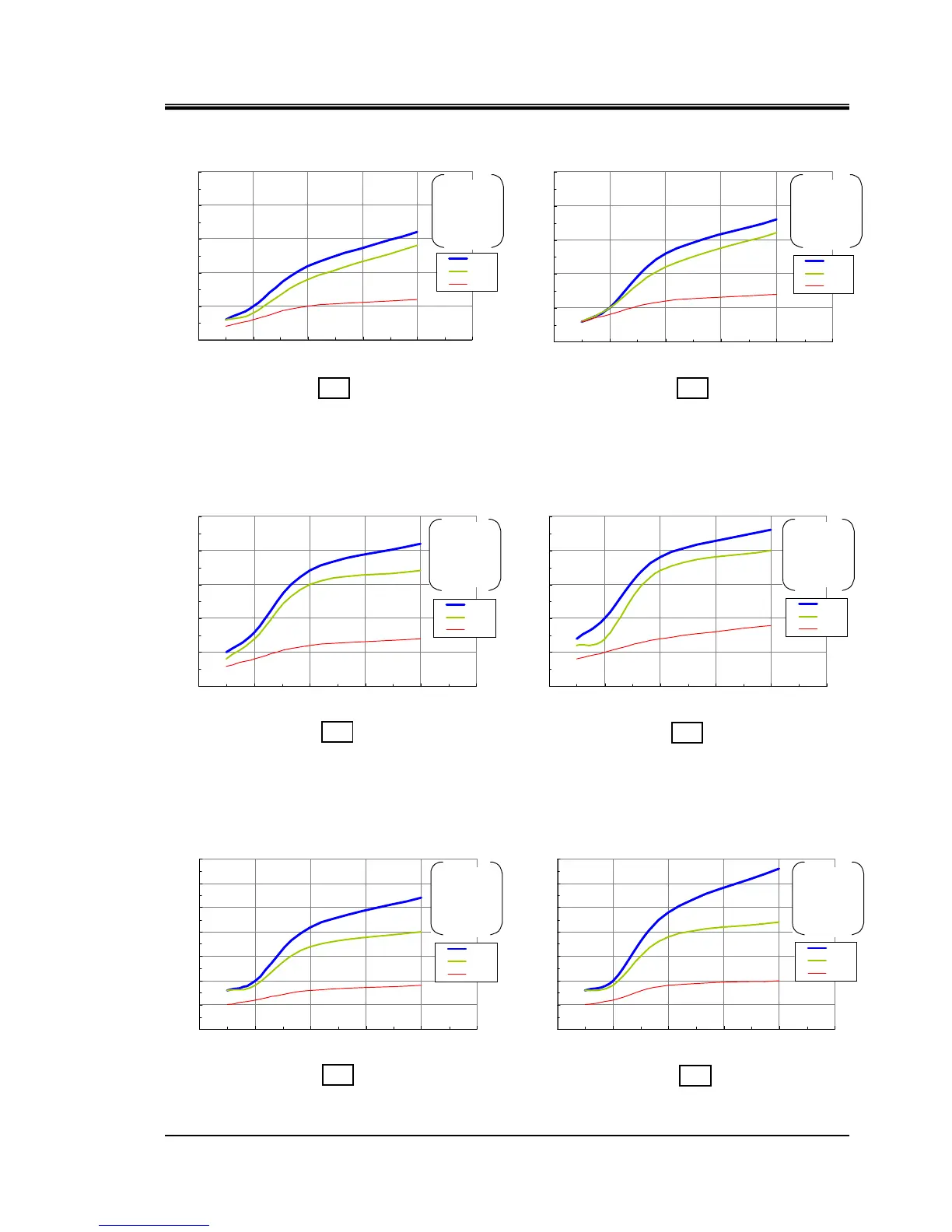

Fig. 8-6 Cooling capacity(HRS012-∗∗-20)
8.4.4 HRS018-∗∗-20-(BJMT)
Fig. 8-7 Cooling capacity(HRS018-∗∗-20)
8.4.5 HRS024-∗∗-20-(BJMT)
Fig. 8-8 Cooling capacity (HRS024-∗∗-20)
50Hz
0
500
1000
1500
2000
2500
0 1020304050
Circulating fluid temperature[
℃
]
Cooling capacity[W]
25℃
32℃
40℃
60Hz
0
500
1000
1500
2000
2500
01020304050
Circulating fluid temperature[
℃
]
Cooling capacity[W]
25℃
32℃
40℃
Ambient
temperature
or
facility water
temperature
Ambient
temperature
or
facility water
temperature
50Hz
0
500
1000
1500
2000
2500
01020304050
Circulating fluid temperature[℃]
Cooling capacity[W]
25℃
32℃
40℃
60Hz
0
500
1000
1500
2000
2500
0 1020304050
Circulating fluid temperature[℃]
Cooling capacity[W]
25℃
32℃
40℃
Ambient
temperature
or
facility water
temperature
Ambient
temperature
or
facility water
temperature
50Hz
0
500
1000
1500
2000
2500
3000
3500
0 1020304050
Circulating fluid temperature[℃]
Cooling capacity[W]
25℃
32℃
40℃
60Hz
0
500
1000
1500
2000
2500
3000
3500
0 1020304050
Circulating fluid temperature[℃]
Cooling capacity[W]
25℃
32℃
40℃
Ambient
temperature
or
facility water
temperature
Ambient
temperature
or
facility water
temperature
∗The cooling capacity will be reduced by 300W when option: –T and –MT are selected.
∗The cooling capacity will be reduced by 300W when option: –T and –MT are selected.
∗The cooling capacity will be reduced by 300W when option: –T and –MT are selected.
