HRX-OM-M090
Chapter 5 Display and setting of various functions
5.3 Alarm display menu HRS Series
5-8
5.3 Alarm display menu
5.3.1 Alarm display menu
The alarm display screen appears when an alarm is generated.
∗ The alarm display menu cannot be accessed when no alarm has been
generated.
∗ Refer to “Chapter 6 Alarm indication and trouble shooting” for the content
of alarms.

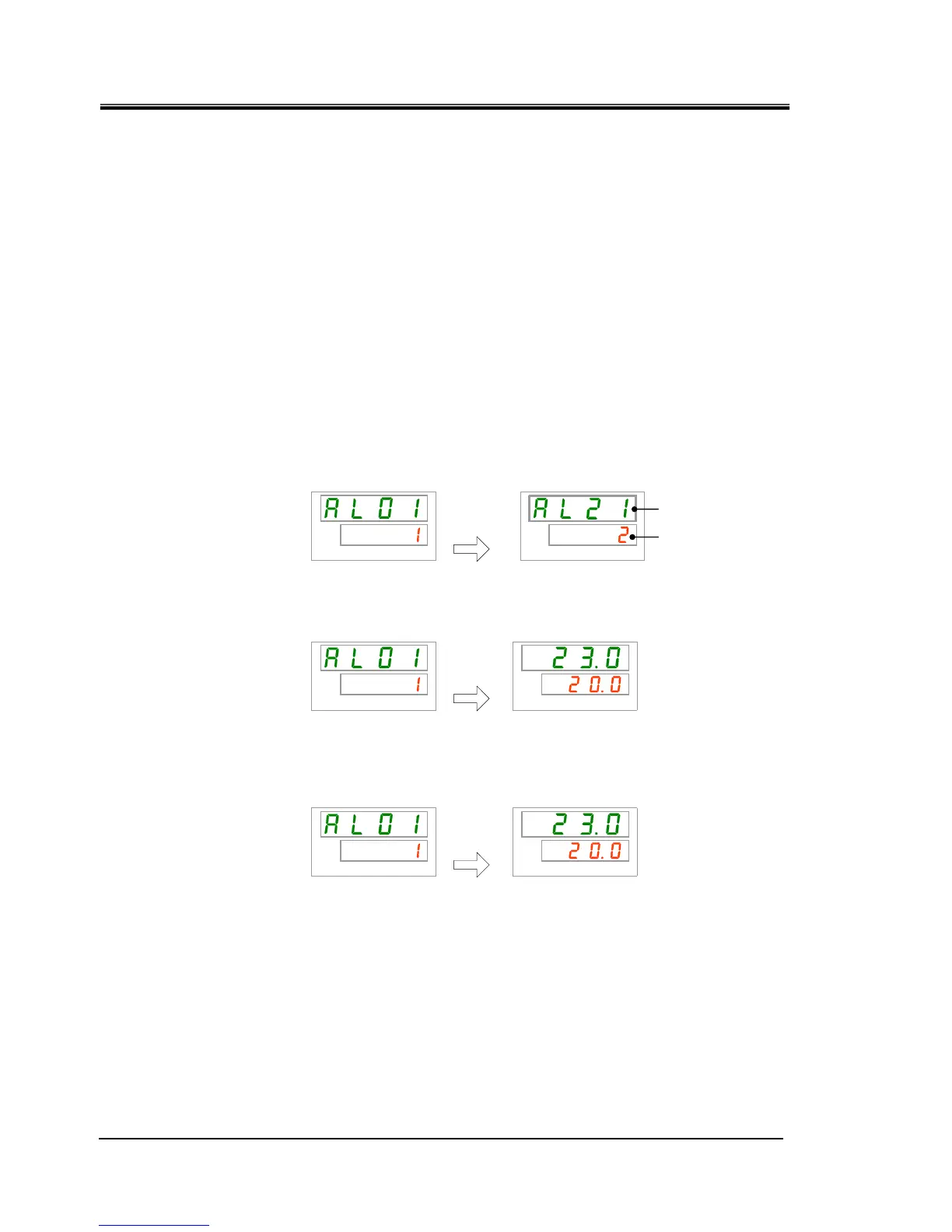

5.3.2 Content of display of alarm display menu
The alarm display screen appears when an alarm is gernerated.
When multiple alarms are generated, the latest alarm is displayed on the
screen.
Each time the [SEL] key is pressed, the alarms are displayed in order,
starting from the latest one.
PV
SV
PV
SV
The main screen is displayed when the alarm is reset.
PV
SV
PV
SV
The main screen is displayed when [MENU] key is pressed while an alarm is
output.
PV
SV
PV
SV
The alarm display screen is displayed if [MENU] key is pressed again.
