Chapter 5 Display and setting of various functions
HRS Series 5.20 Option [Drain pan set]
5-73

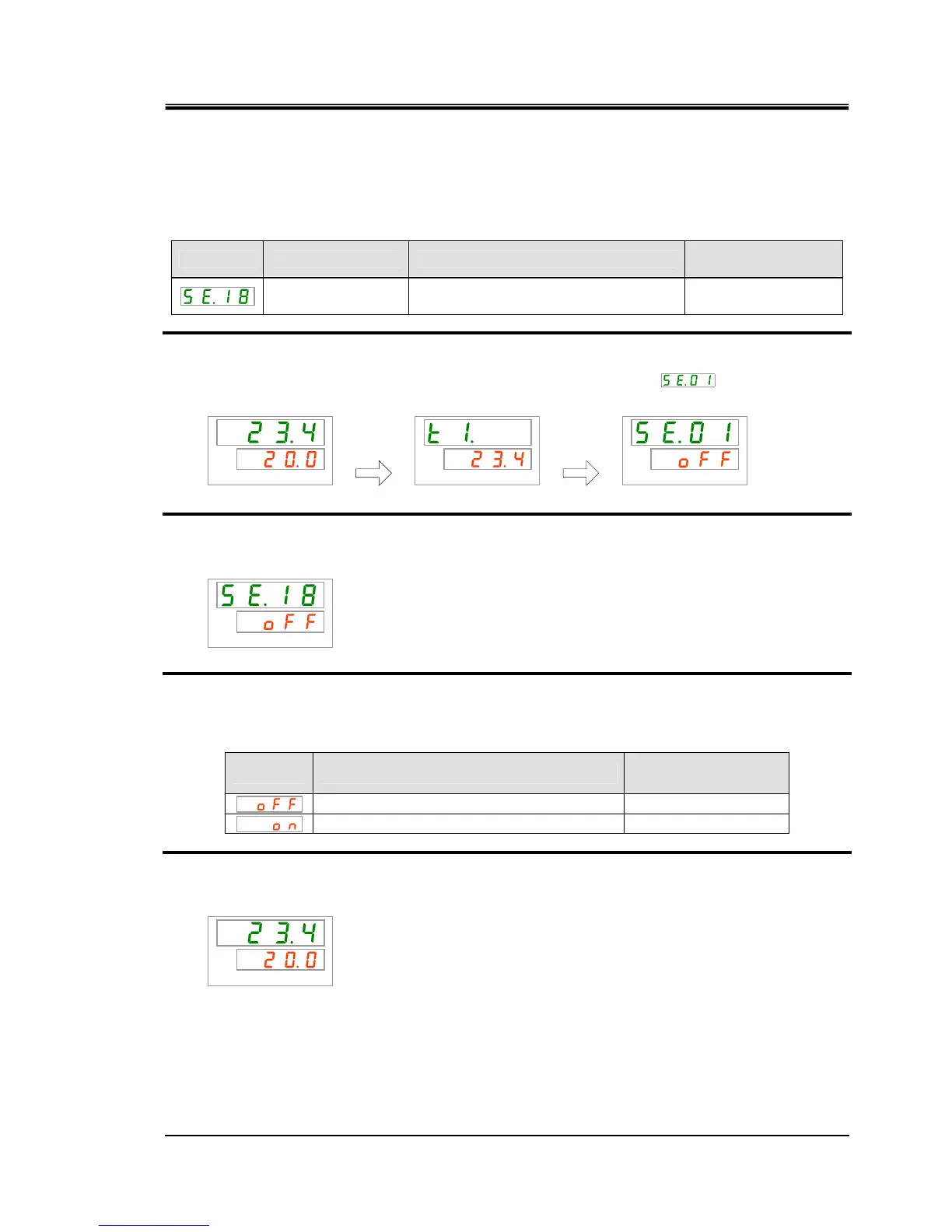

5.20.2 Option [Drain pan set] setting and checking
The table below explains the setting items of the option [Drain pan set] and
the initial values.
Table 5.20-1 List of set option [Drain pan set]
Display Item Contents
Initial value
(Default setting)
Option [Drain pan
set]
Set the
option [Drain pan set] mode to
valid / invalid.
OFF
1. Press and hold the [MENU] key for approx. 2 sec.
Repeat pressing the key until the setting screen for key-lock [
] appears on the
digital display.
PV
SV
PV
SV
PV
SV
Drain pan set [Option] Setting and checking
2. Press the [SEL] key 17 times.
The set screen of drain pan set [Option] is displayed on the digital display.
PV
SV
3. Select drain pan set [Option] from the table below with [▲] key or [▼] key, and confirm by
pressing “SEL”.
Table 5.20-2 List of set value
Set value Explanation
Initial value
(Default setting)
Drain pan set [option] mode to invalid
○
Drain pan set [option] mode to valid
4. Press the [MENU] key once.
Return to the main screen (screen displaying the circulating fluid temperature).
PV
SV
［MENU］
Press and
hold
［MENU］
Press and
hold
