8.7 Required facility water flow (for water-cooled type) HRS Series
8-12
8.7 Required facility water flow (for water-cooled type)

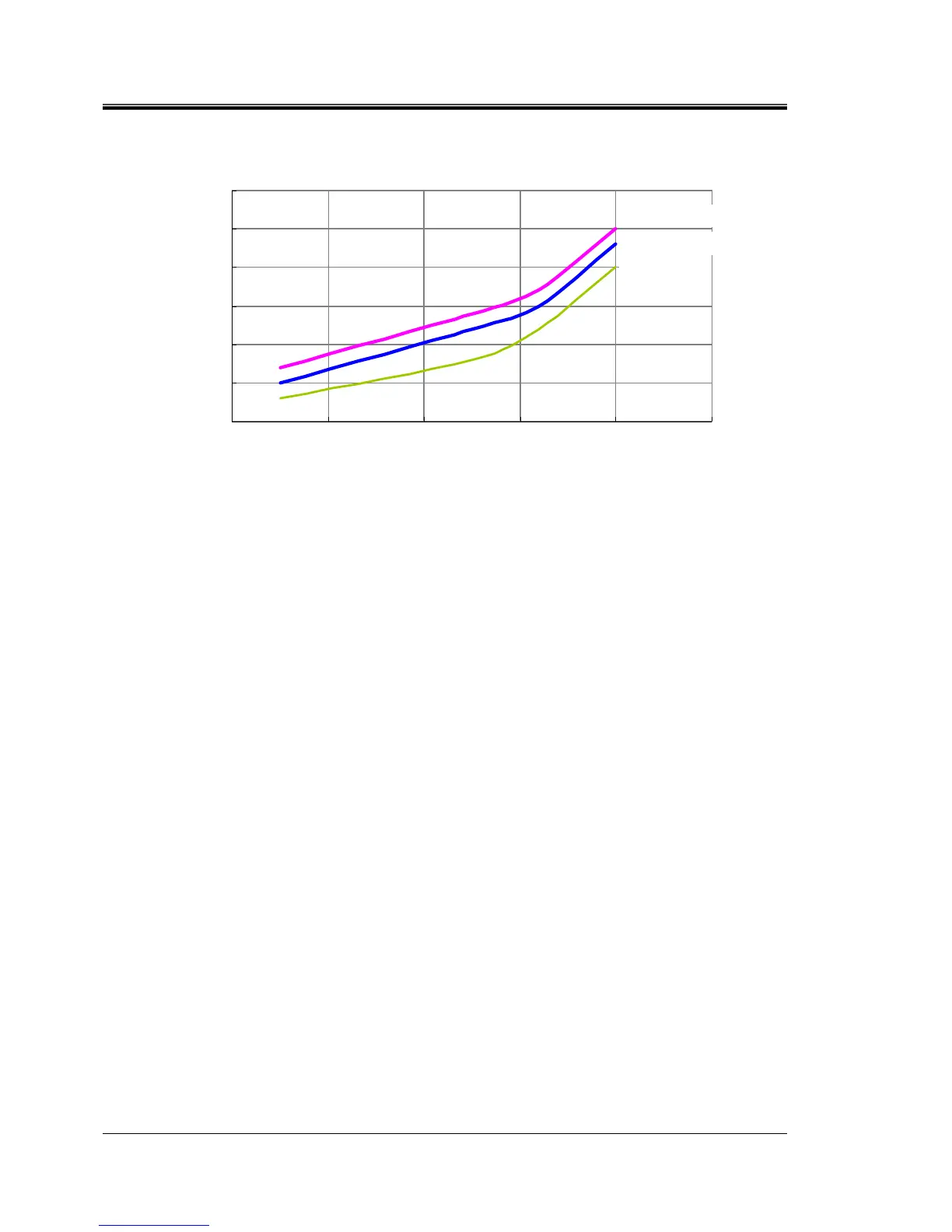

Fig. 8-18 Required facility water flow (for water-cooled type)
HRS012-W*-*0
HRS018-W*-*0
HRS024-W*-20
0
5
10
15
20
25
30
0 1020304050
Facility water inlet temperature[
℃
]
Facility water flow rate[L/min]
*The amount of the facility water for the operation with rated circulating fluid,
cooling capacity which is described in fig.8-4 to 8-8.
