Chapter 2 Name and Function of Parts
2.2 Name and Function of Parts HRS Series
2-2
2.2 Name and Function of Parts

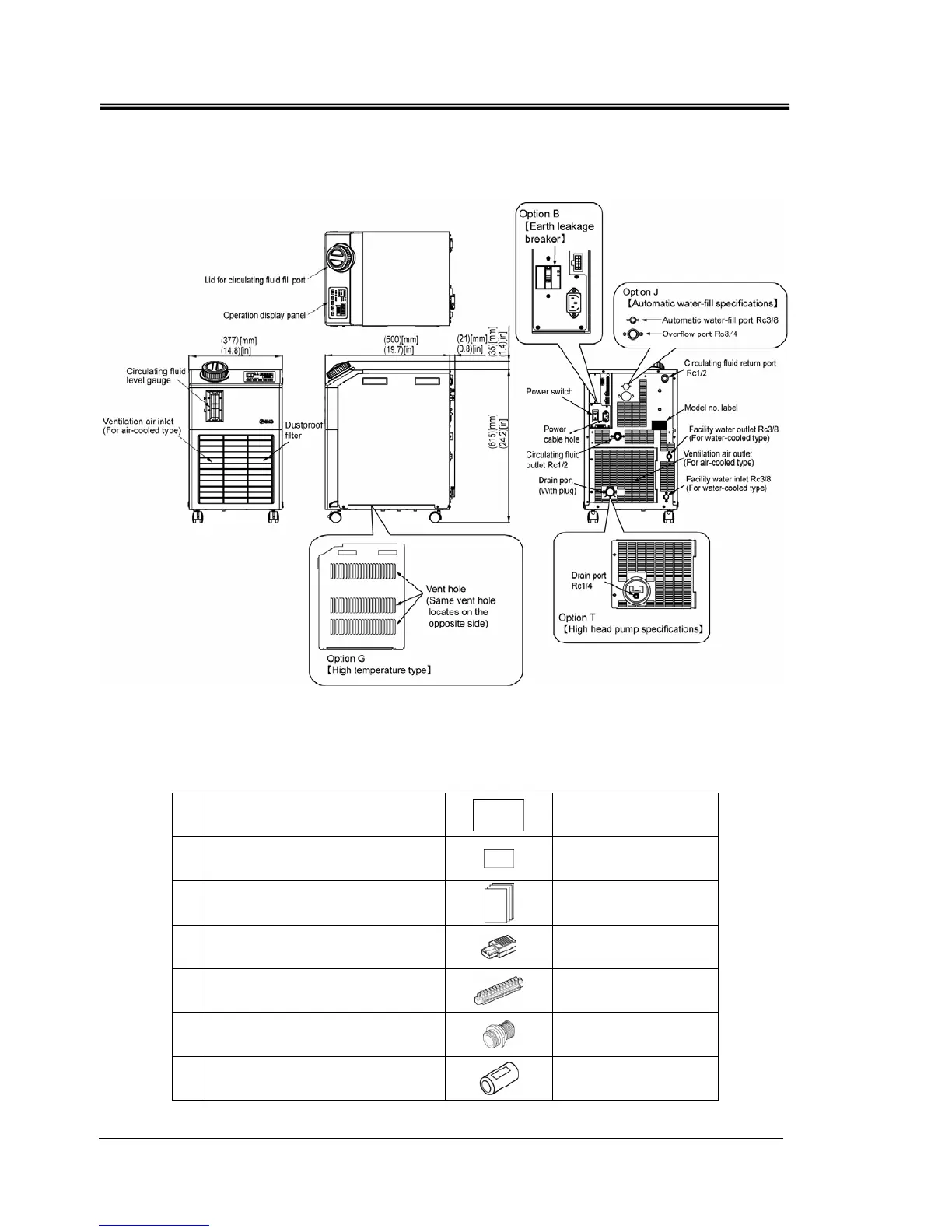

Fig. 2-2 Names of each part
Table 2-1 Accessories list
1
Quick manual
1pc.
(with a clear cover)
2
Alarm code list label
1pc.
3
Operation Manual
2pcs.
(Jpn: 1pc., Eng:1pc.)
4
Power supply connector
1pc.
5
Sequence I/O command signal
connector
1pc.
6
Fitting (for drain port)
*
1pc.
7
Ferrite core (for communication)
1pc.
∗ Not included when option [High head pump] is selected.
